Hitch and trailer
Hitch
Introduction
This chapter contains information on the following subjects:
Description 120
Adjusting the ready position 121
A correctly set ready position 121
Assembling the bar ball - 1. Step 122
Assembling the bar ball - 2. Step 122
Check proper fitting 123
Removing the bar ball - 1. Step 123
Removing the bar ball - 2. Step 123
Accessories 124
The maximum trailer drawbar load is 50 kg.
WARNING
■
Check that the tow bar is seated correctly and is secured in the mounting
recess before the start of every journey.
■
Do not use the ball head, if it is not correctly inserted into the mounting
recess and secured.
■
Do not use the towing equipment if it is damaged or incomplete.
■
Do not modify or adapt the towing device in any way.
■
Never release the tow bar while the trailer is still coupled.
■
Keep the mounting recess of the towing equipment clean at all times.
Such dirt prevents the ball head from being attached securely.
CAUTION
■
Take care with the ball bar - there is a risk of paint damage to the bumper.
■
When the tow bar is removed always place the cover onto the mounting re-
cess - there is a danger of soiling the mounting recess.
Note
■
Operation and maintenance of hitch » page 135.
■
Tow the vehicle by means of the detachable ball rod » page 169.
Description

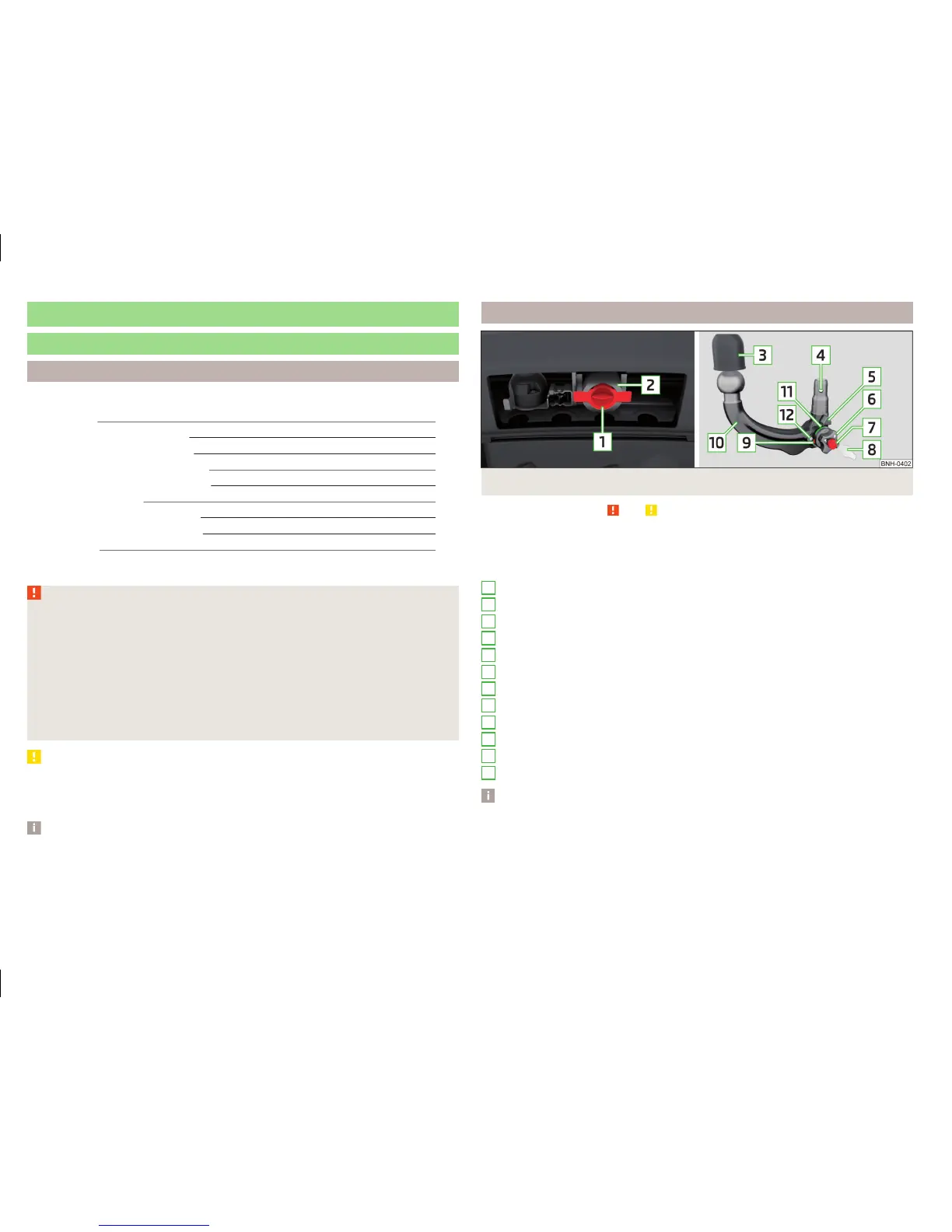

Fig. 111 Carrier for the towing device / tow bar
Read and observe
and on page 120 first.
The ball head can be removed and is kept in the spare wheel well or in a com-
partment for the spare wheel in the luggage compartment.
Support for the towing device and tow bar » Fig. 111
Cap
Mounting recess
Protective cap
Locking ball
Centring
Hand wheel
Key
Lock cap
Red marking on the hand wheel
Ball head
Green marking on the hand wheel
White marking on ball head
Note
On the bottom of the key is a code number. If you lose a key, please contact a
specialist garage which will be able to use this code number to provide you
with a new one.
1
2
3
4
5
6
7
8
9
10
11
12
120
