Replacing the high beam bulb (halogen headlights)

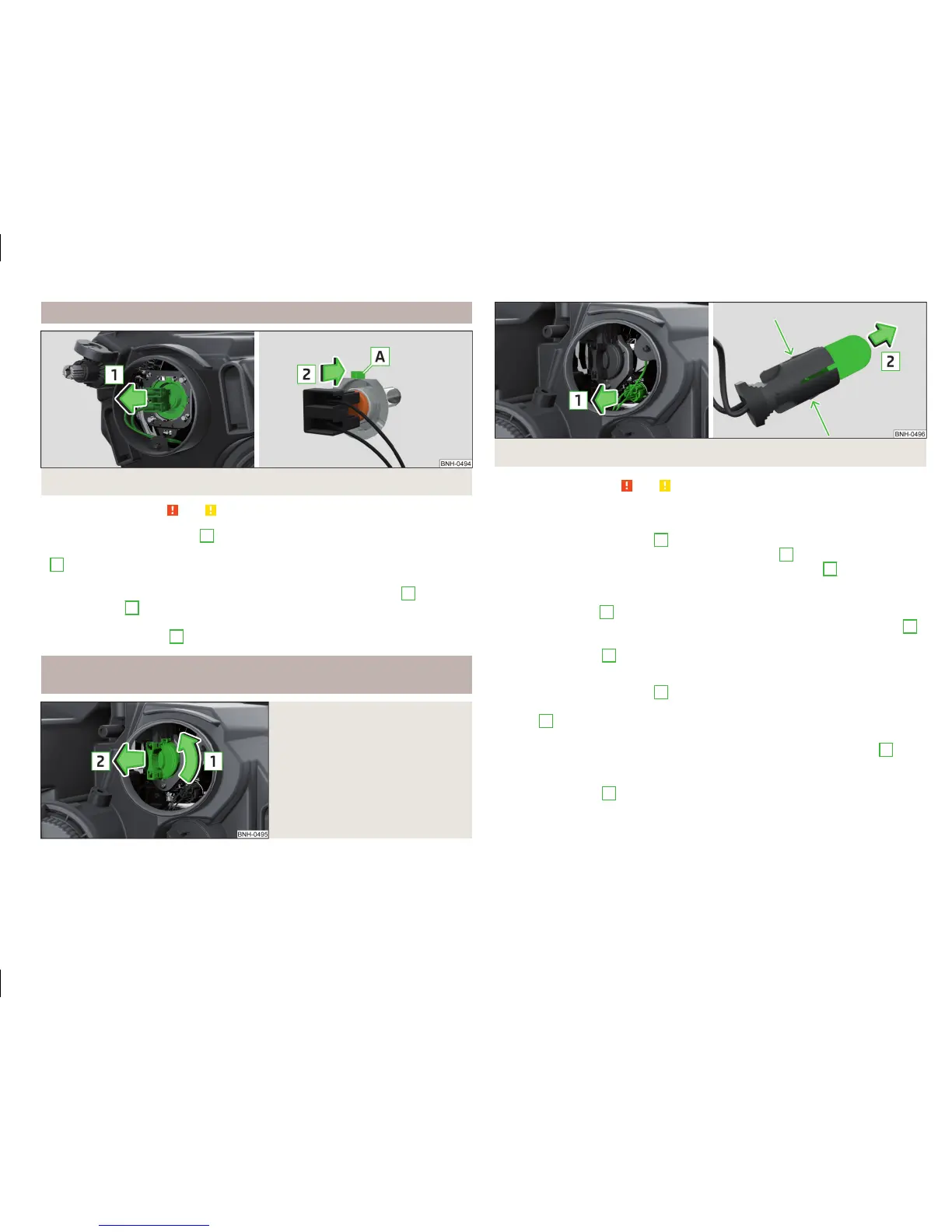

Fig. 162 Changing the bulb for the low beam
Read and observe
and on page 176 first.
›
Remove the protective cap
A
» Fig. 161 on page 176.
›
Remove the socket with the bulb by jiggling it out in the direction of arrow
1
» Fig. 162.
›
Remove the connector.
›
Insert the connector with the new bulb in the direction of arrow
2
so that
the fixing lug
A
fits the bulb into the recess on the reflector.
›
Attach the connector.
›
Fit the protective cap
A
» Fig. 161 on page 176.
Replacing bulb for main beam, daytime running lights and parking
light
Fig. 163
Replacing the bulb for main
beam and separate daytime run-
ning lights
Fig. 164 Change the light bulb for the parking light
Read and observe and on page 176 first.
Removing/replacing the bulb for main beam and separate daytime running
lights
›
Remove the protective cap
B
» Fig. 161 on page 176.
›
Pull the holder until it stops in the arrow direction
1
» Fig. 163.
›
Remove the socket with the bulb in the direction of arrow
2
.
›
Change the bulb in the socket.
›
Insert the socket with the new bulb into the headlight in the opposite direc-
tion to the arrow
2
.
›
Turn the socket with the new bulb in the opposite direction to the arrow
1
until it stops.
›
Fit protective cap
B
» Fig. 161 on page 176 Insert.
Removing/replacing the bulb for the parking light
›
Remove the protective cap
B
» Fig. 161 on page 176.
›
Remove the bulb holder with the bulb by jiggling it out in the direction of the
arrow
1
» Fig. 164.
›
Grasp the lamp socket at the places marked by arrows.
›
Remove the faulty bulb from the holder in the direction of the arrow
2
.
›
Insert a new bulb in the bulb holder up to the stop.
›
Replace the bulb holder in the headlamp with the bulb.
›
Fit protective cap
B
» Fig. 161 on page 176 Insert.
177
Fuses and light bulbs
