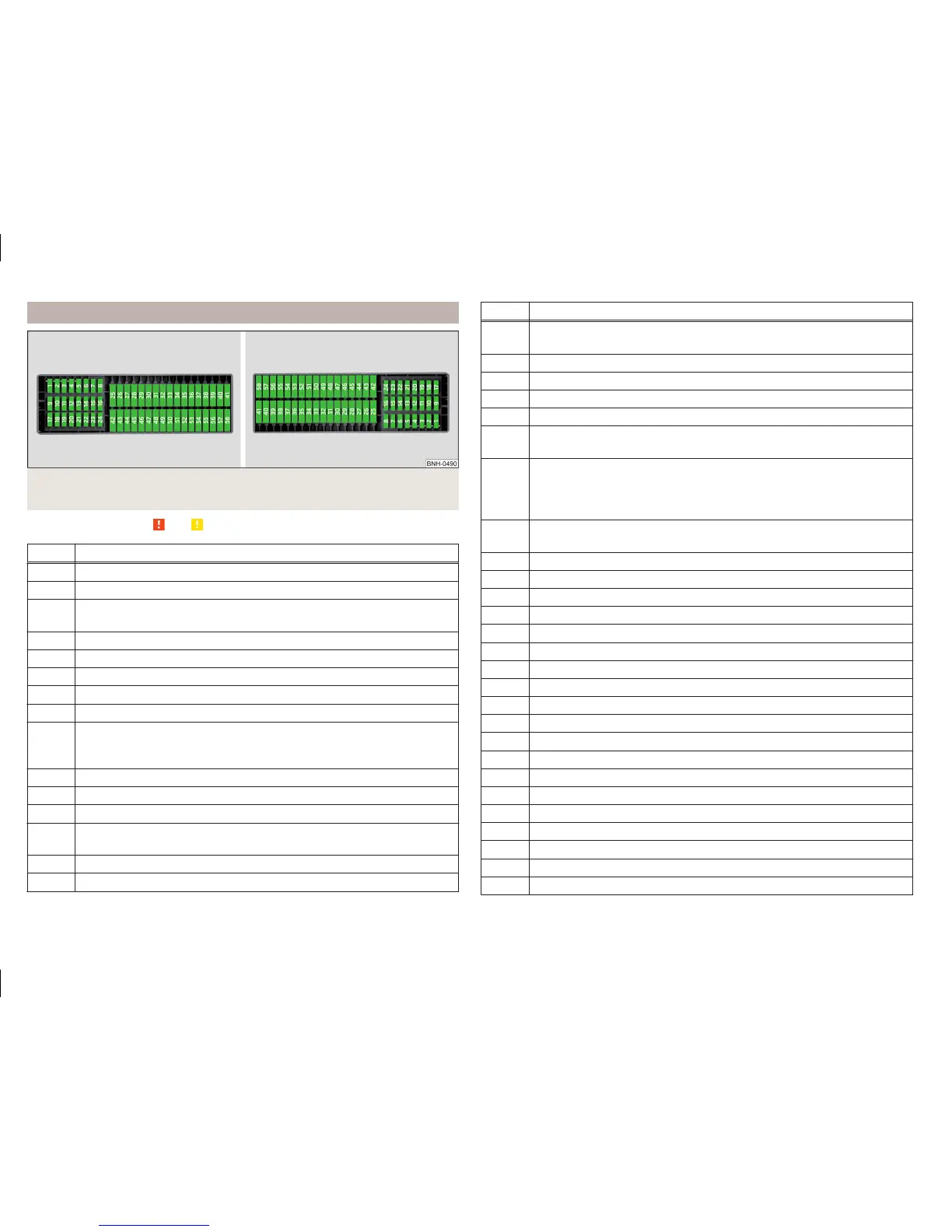

Assignment of the fuses in the dash panel
Fig. 158 Schematic representation of the fuse box for vehicles with left-
hand steering/right-hand steering
Read and observe
and on page 173 first.
No. Power consumer
1 S-contact
2 START - STOP
3
Instrument cluster, headlight range adjustment, telephone, oil level
sensor, diagnostic port, dimmable interior rear-view mirror
4 Control unit for ABS/ESC, steering angle sensor strip with switches
5 Petrol engine: Speed regulating system
6 Reversing light (manual gearbox)
7 Ignition, engine control unit, automatic gearbox
8 Brake pedal switch, clutch switch, engine cooling fan
9
Operating controls for the heating, electronic control unit for air con-
ditioning system, park distance control, window lift, engine cooling
fan, heated washer nozzles
10 DC-DC converter
11 Mirror adjustment
12 Control unit for trailer detection
13
Electronic control unit for automatic gearbox, selector lever of the
automatic gearbox
14 Headlight range control
15 Not assigned
No. Power consumer
16
Power steering, speed sensor, engine control unit, control unit for
fuel pump
17 Daytime running lights/radio for vehicles with START-STOP
18 Mirror heater
19 Ignition lock input
20 Engine control unit, electronic control unit for fuel pump, fuel pump
21
Reversing lamp (automatic gearbox), fog lights with the function
CORNER
22
Operating controls for the heating, electronic control unit for air con-
ditioning system, telephone, instrument cluster, steering angle
sender, multi-function steering wheel, ignition key removal lock, di-
agnostic port, rain sensor
23
Interior lighting, storage compartment and luggage compartment,
side lights
24 Central control unit
25 Light switch
26 Rear window wiper
27 Operating lever underneath the steering wheel
28 Petrol engine: ACF valve, PTC heater
29 Injection, coolant pump
30 Fuel pump, ignition system, cruise control
31 Lambda probe
32 High-pressure fuel pump, control valve for fuel pressure
33 Engine control unit
34 Engine control unit, vacuum pump
35 Switch illumination, number plate light, parking light
36 High beam, light switch
37 Rear fog light, DC-DC converter
38 Fog lights
39 Air blower for heating
40 Not assigned
41 Heated front seats
42 Rear window heater
174
