Attach the connector.
Refit the headlight and grille
›
Replace the fog light by inserting it in the opposite direction of the arrow
4
» Fig. 166 and tightening.
›
Insert the protective grille and carefully press it in.
The protective grille must engage firmly.
Replacing the bulb for the licence plate light

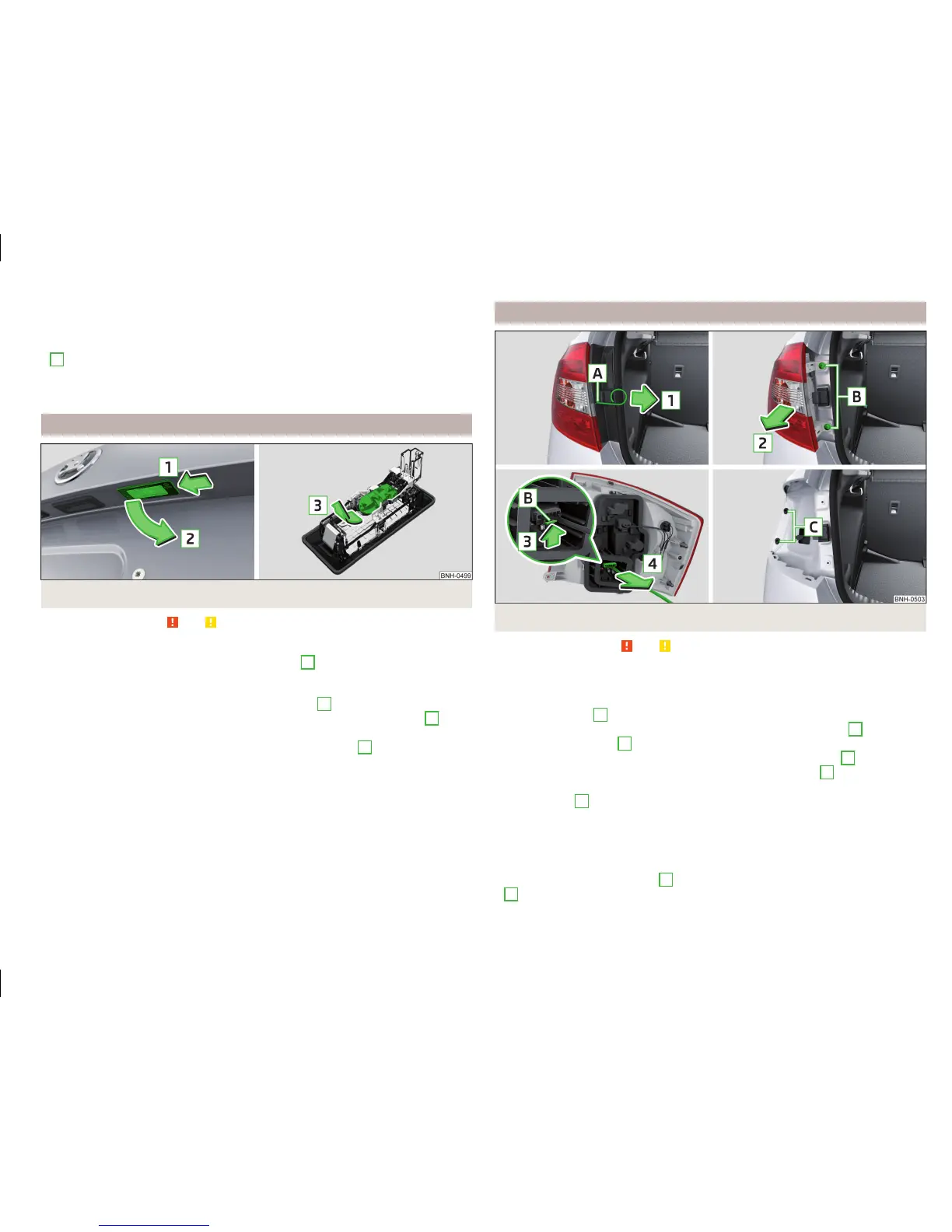

Fig. 167
Remove the number plate light/replace the bulb
Read and observe and on page 176 first.
›
Open the boot lid.
›
Push in the lamp in the direction of the arrow
1
» Fig. 167.
The lamp comes loose.
›
Swivel out the lamp in the direction of the arrow
2
and remove it.
›
Remove the faulty bulb from the holder in the direction of the arrow
3
.
›
Insert a new bulb into the holder.
›
Reinsert the lamp in the opposite direction to the arrow
1
.
›
Push on the light until the spring clicks into place.
Check that the light is securely inserted.
Rear Light
Fig. 168 Remove light / pull out connector
Read and observe and on page 176 first.
Removing
›
Open the boot lid.
›
Insert the clamps for removing the full wheel covers » page 159, Vehicle tool
kit into opening
A
» Fig. 168.
›
Remove the cover by pulling the hook in the direction of arrow
1
.
›
Unscrew the screws
B
with the key from the tool kit.
›
Grasp the lamp and carefully remove in the direction of arrow
2
.
›
Press the latch on the connector in the direction of arrow
3
.
›
Carefully remove the connector from the tail lamp assembly in the direction
of the arrow
4
.
Fitting
›
Insert the bulb holder into the lamp.
The lock on the plug must be inserted securely.
›
Insert the lamp with the pin
B
» Fig. 169 on page 180 into the recesses
C
» Fig. 168 in the body.
179
Fuses and light bulbs
