No. Power consumer
43 Horn
44 Windscreen wipers
45 Boot lid lock, central locking system
46 Alarm
47 Cigarette lighter
48 ABS
49 Turn signal lights, brake lights
50 DC-DC converter, radio
51 Electric windows (driver's window and rear left window)
52 Electric windows (front passenger's window and rear right)
53 Windscreen washer
54
START-STOP instrument cluster, operating lever under the steering
wheel, multifunction steering wheel
55 Control unit for automatic gearbox
56 Headlight cleaning system
57 Headlights front, rear
58 Headlights front, rear
Fuses in the engine compartment

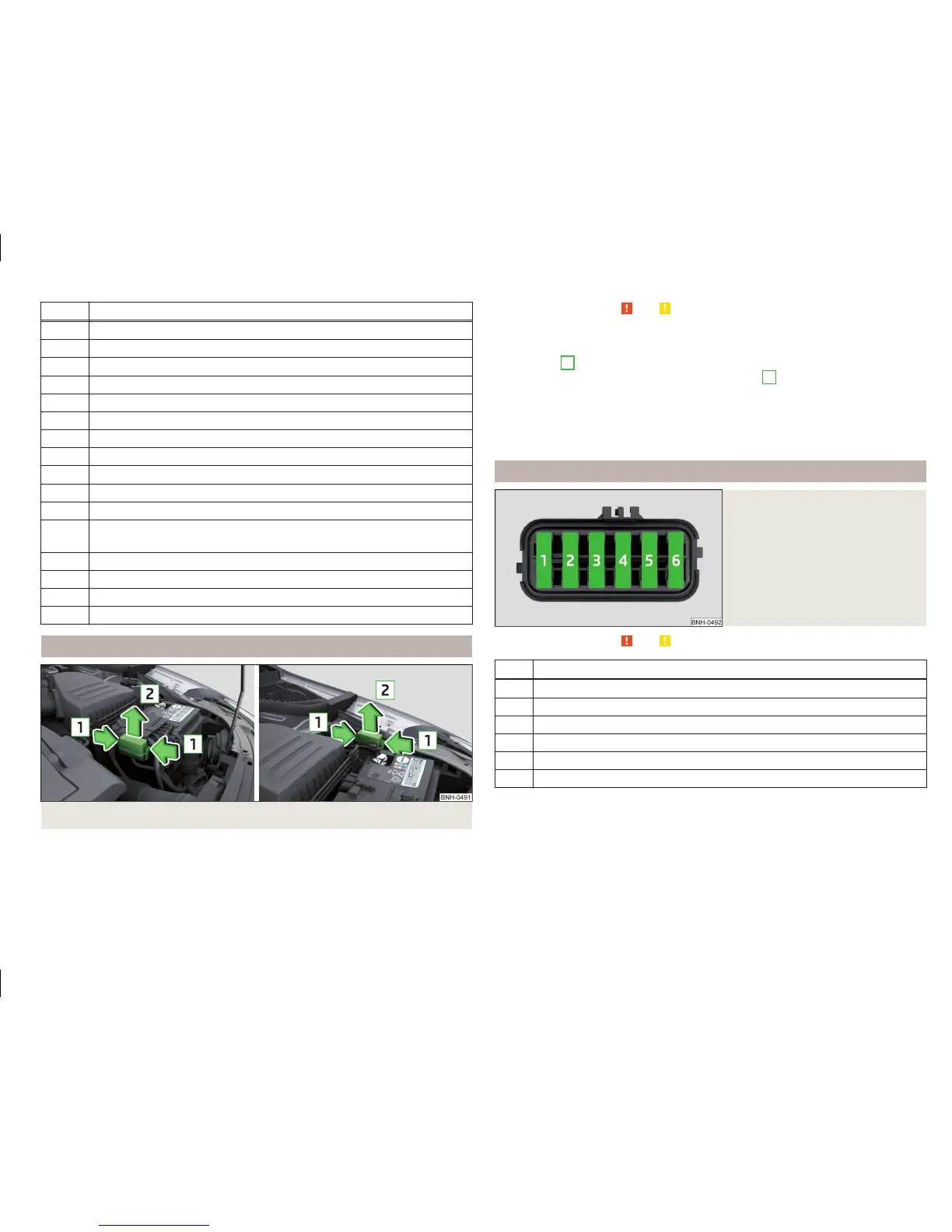

Fig. 159 Vehicle battery: Cover for the fuse box - variant 1 / variant 2
Read and observe and on page 173 first.
Replacing fuses
›
Press together the interlocks of the cover simultaneously in the direction of
the arrow
1
» Fig. 159.
›
Remove the cover in the direction of the arrow
2
.
›
Replace the appropriate fuse.
›
Place the cover on top of the fuse box.
›
Push in the interlocks on the cover and lock.
The cover must engage securely.
Fuse assignment in the engine compartment
Fig. 160
Fuses
Read and observe and on page 173 first.
No. Power consumer
1 ABS
2 Radiator fan
3 Automatic gearbox
4 ABS
5 Central control unit
6 Electrical auxiliary heating system
175
Fuses and light bulbs
