Chapter 4 System Set-up
4.3 Filling Bath liquid
4-2
4.2.2 Facility water run through
Make facility water run through.
Make sure there is no leakage on the facility water circuit.
Figure 4-1 Facility water run through
4.3 Filling Bath liquid
4.3.1 Preparation of Bath Liquid
The bath liquid is to be prepared under your responsibility, referring to the
following table.
Table 4-2-1 Bath liquids
Bath Liquid Working Temp. Range Remarks
Water 5~60 °C
Use distilled water or clean water based
on reference of water quality. (Refer Table
4-3).
Include Ethylene glycol-water solution.
Ethylene glycol-water
solution
0~60 °C
Concentration of Ethylene glycol must be
lower than 50%

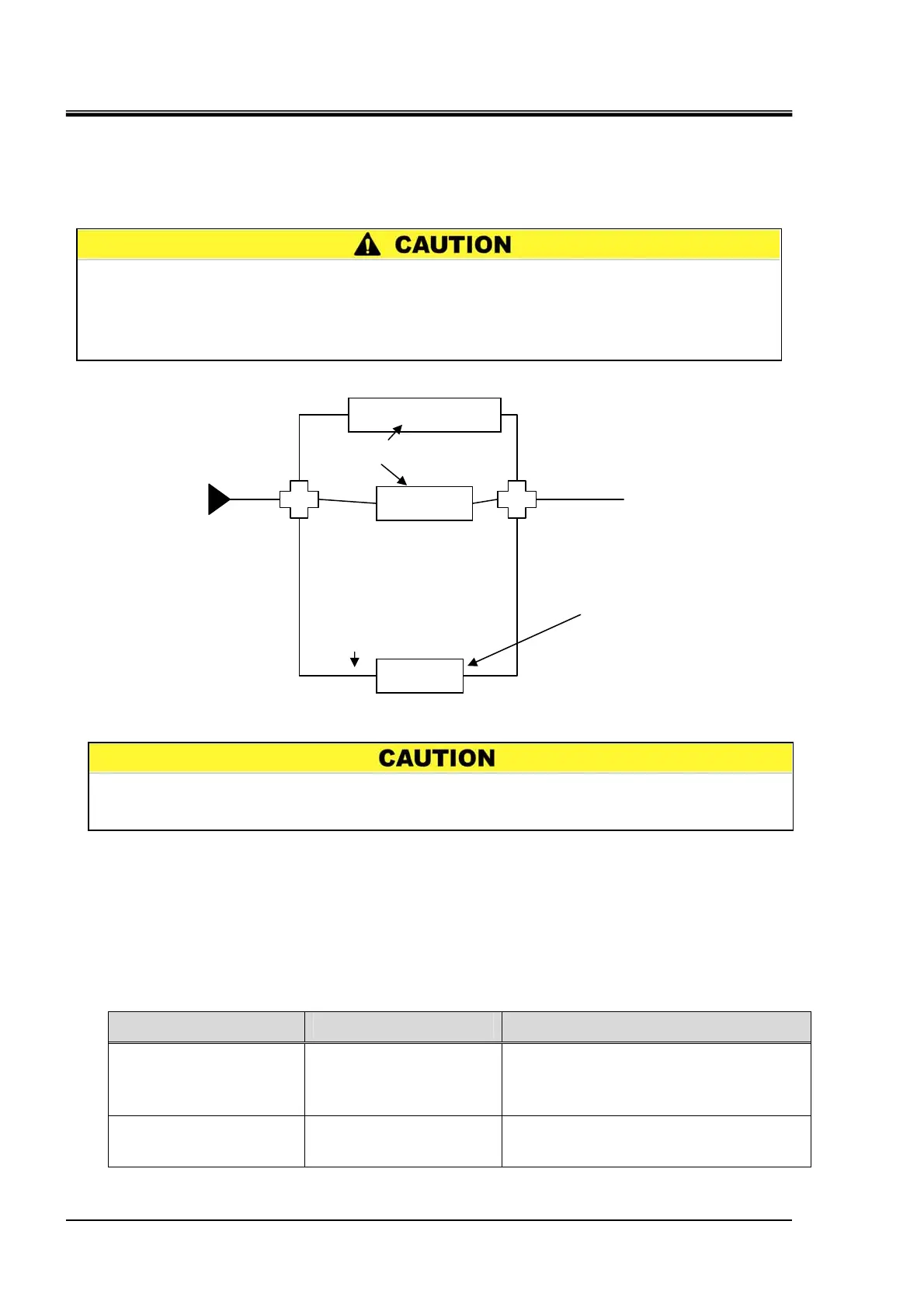

z Check if adequate fluid is in the bath.
z If the facility water pipings are arranged in parallel, the flow rate may not be
adequate.
z Check if only the facility water pipe of the thermostat that is experiencing an
error is warm.
Bath
Bath
Other device
Smooth flow
Uneven flow
Error generated!
Error not generated.
Error not generated
Facility
water
Take corrective actions to
reduce the temperature of the
outlet piping of the facility
water.
z If manifold is used, the flow rate may not be constant.
