HEC-OM-O018-A
Chapter 5 Operation
5.1 Operation of Controller
5-11

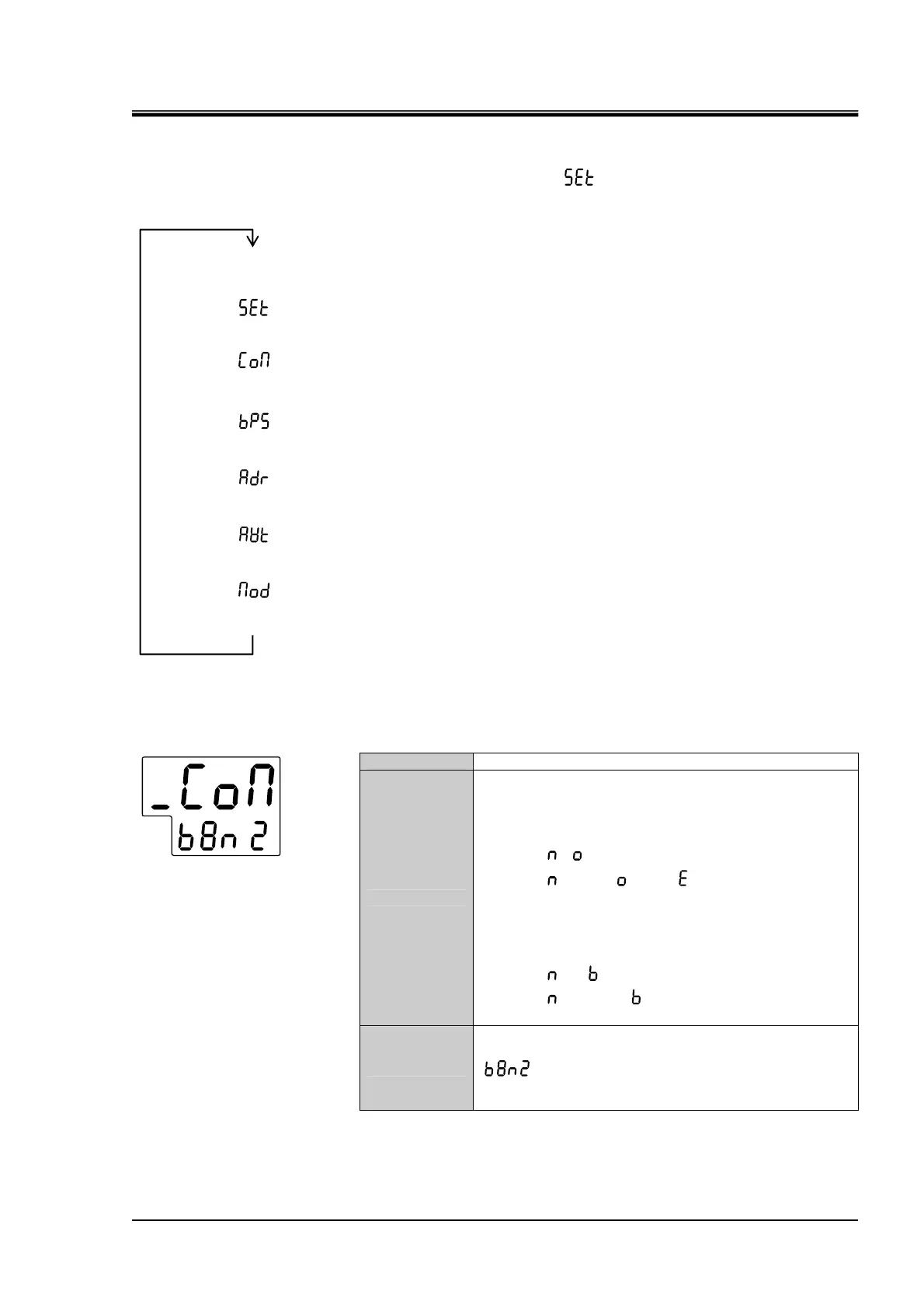

5.1.10 Selection of Communication Setting Mode
Inputting “6” in the setting mode ” ” activates the communication setting
mode. Each press of the [MODE] key changes the operating mode as
follows.
Mode indication

Indicates that communication setting mode is activated.
↓
[MODE] key
<1>

Communication parameter setting
↓
[MODE] key
<2>

Communication speed setting
↓
[MODE] key
<3>

Communication address setting
↓
[MODE] key
<4>

Response delay time setting
↓
[MODE] key
<5>

Communication-mode setting
[MODE] key
5.1.11 Details of Communication Setting Mode
<1> Communication parameter setting
Function Sets communication parameters.
Setting range
1
st
digit : Stop bit length
1 or 2
1: 1 bit, 2: 2 bit
2
nd
digit : Parity check
, or E
: None, : Odd, : Even
3
rd
digit : Data length
7 or 8
7: 7 bit, 8: 8 bit
4
th
digit : BCC check
or
: Disable, : Enable
The number of digits is counted from the right side.
PV
SV
Initial setting
