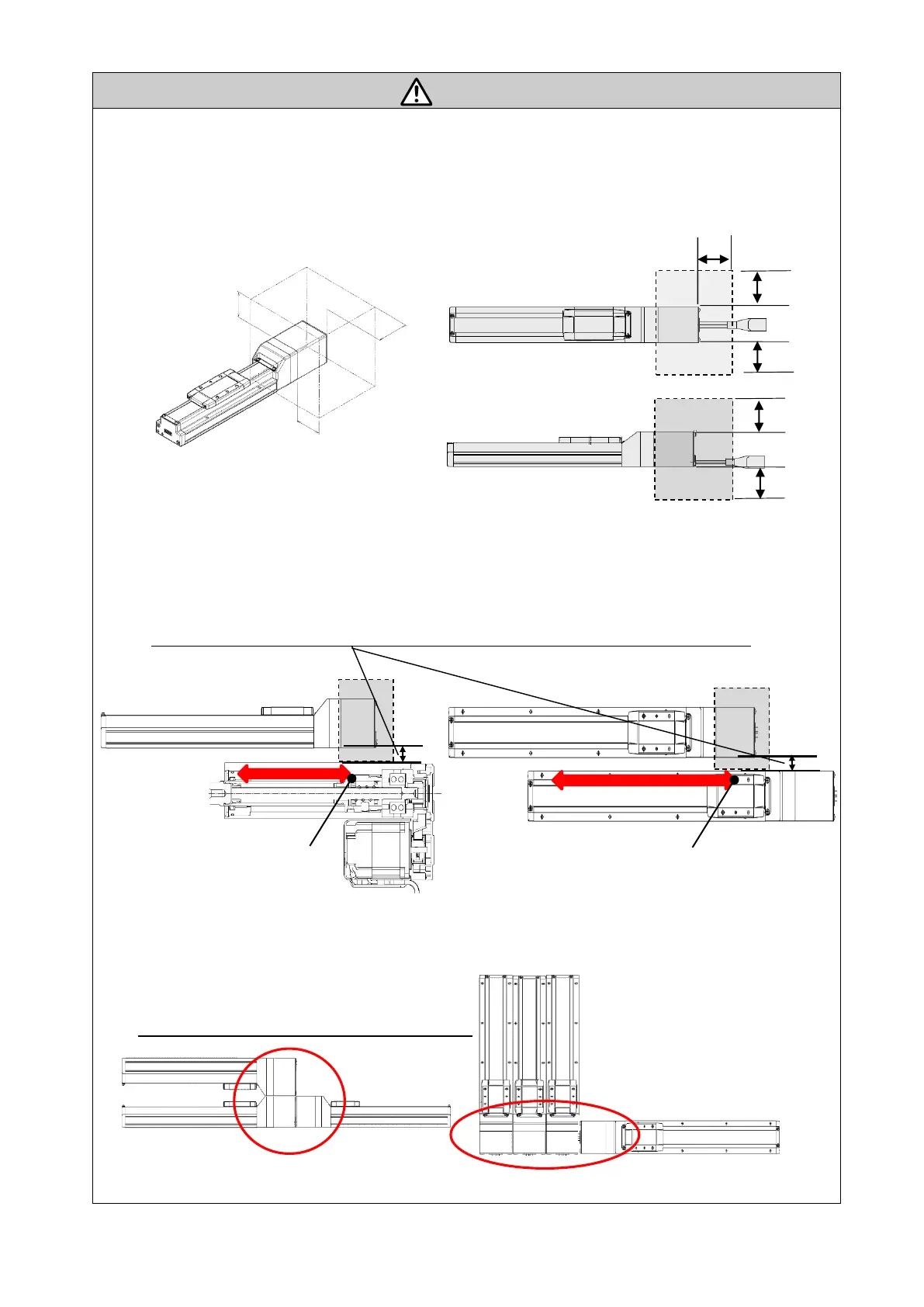

(4) Precautions for electric actuator compatible with battery-less absolute encoder installation
Warning
Do not use in an environment where strong magnetic field are present.
A magnetic sensor is used in the encoder. Therefore, if the actuator motor is used in a strong magnetic field
environment, malfunction or failure may occur.
Do not expose the actuator motor to a magnetic field with a magnetic flux density of 1 mT or more.
(1) When installing an air cylinder with an auto switch (ex. CDQ2 series) by side,
maintain 40 mm minimum space around the motor.
Refer to the construction drawing of the actuator motor.
Air cylinder installation with an auto switch is forbidden in the shaded area.
(2) When installing electric actuator LEY(G) or LEF series with an auto switch by side,
leave a gap of 40 mm or more with respect to the position where the magnet passes.
The motors of the electric actuator can be installed close to each other.
40
40
40
40
40
40
40
40
Magnet mouting position
LEY(G) / Piston part
Magnet
passing position
Keep away from the magnet passing position and leave a space of 40 mm or more.
Motors can be installed close to each other
Magnet mouting position
LEFS / Table center
Magnet
passing position
