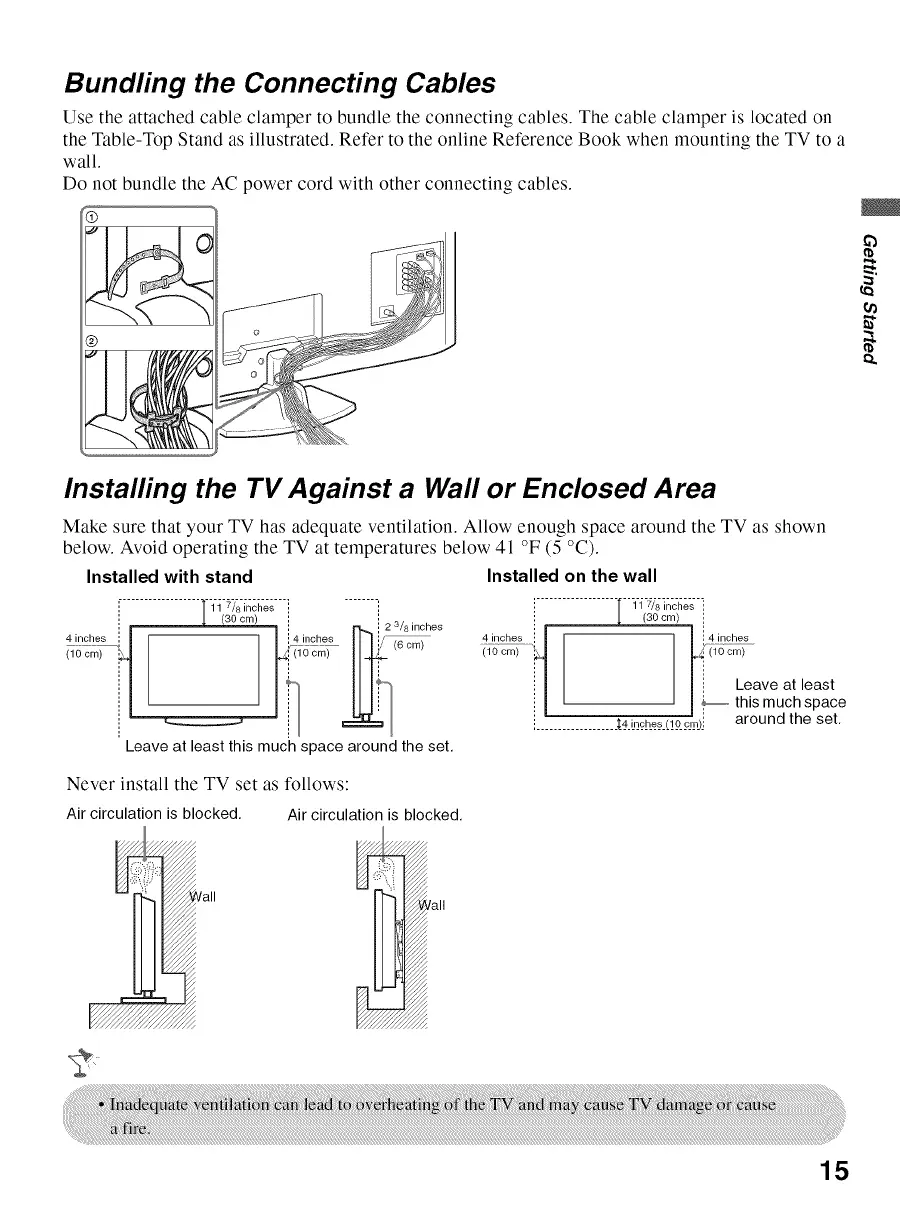

Bundling the Connecting Cables
Use the attached cable clamper to bundle the connecting cables. The cable clamper is located on
the Table-Top Stand as illustrated. Refer to the online Reference Book when mounting the TV to a
wall.
Do not bundle the AC power cord with other connecting cables.
if}
,g
Installing the TV Against a Wall or Enclosed Area
Make sure that your TV has adequate ventilation. Allow enough space around the TV as shown
below. Avoid operating the TV at temperatures below 41 °F (5 °C).
Installed with stand
- 11 7/8 inches i
(30 cm)
4inches i I _ [ i4!nehes [l_[_nl hes
ocm J Oom
Leaveat least this much space around the set.
Never install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
Installed on the wall
ii................... [ 11 7/8 inches
(30 cm)
(10 cm) ,ii i i 4 inches
iI Leave at least
_ this muchspace
...................___4_i_n__ct__e__s_(!9__c__m)jaround the set,
15
