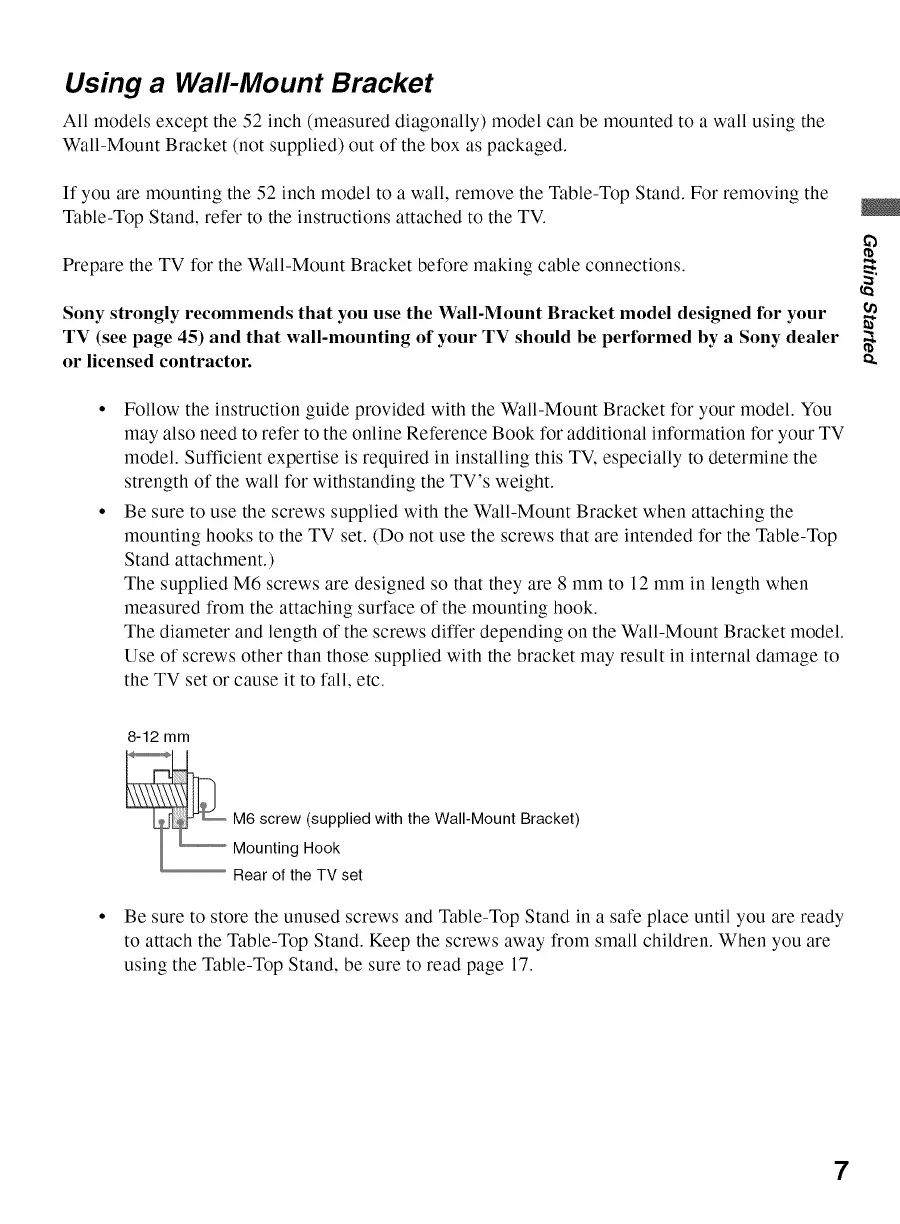

Using a Wall-Mount Bracket
All models except tile 52 inch (measured diagonally) model can be mounted to a wall using tile
Wall-Mount Bracket (not supplied) out of the box as packaged.
If you are mounting the 52 inch model to a wall, remove the Table-Top Stand. For removing the
Table-Top Stand, refer to the instructions attached to the TV.
Prepare the TV for the Wall-Mount Bracket before making cable connections.
Sony strongly recommends that you use the Wall-Mount Bracket model designed for your
TV (see page 45) and that wall-mounting of your TV should be performed by a Sony dealer
or licensed contractor.
Follow the instruction guide provided with the Wall-Mount Bracket for your model. You
may also need to refer to the online Reference Book for additional information for your TV
model. Sufficient expertise is required in installing this TV, especially to determine the
strength of the wall for withstanding the TV's weight.
Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the
mounting hooks to the TV set. (Do not use the screws that are intended for the Table-Top
Stand attachment.)
The supplied M6 screws are designed so that they are 8 mm to 12 mm in length when
measured from the attaching surface of the mounting hook.
The diameter and length of the screws differ depending on the Wall-Mount Bracket model.
Use of screws other than those supplied with the bracket may result in internal damage to
the TV set or cause it to fall, etc.
8-12 mm
M6 screw (supplied with the Wall-Mount Bracket)
Mounting Hook
Rear of the TV set
Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready
to attach the Table-Top Stand. Keep the screws away from small children. When you are
using the Table-Top Stand, be sure to read page 17.
