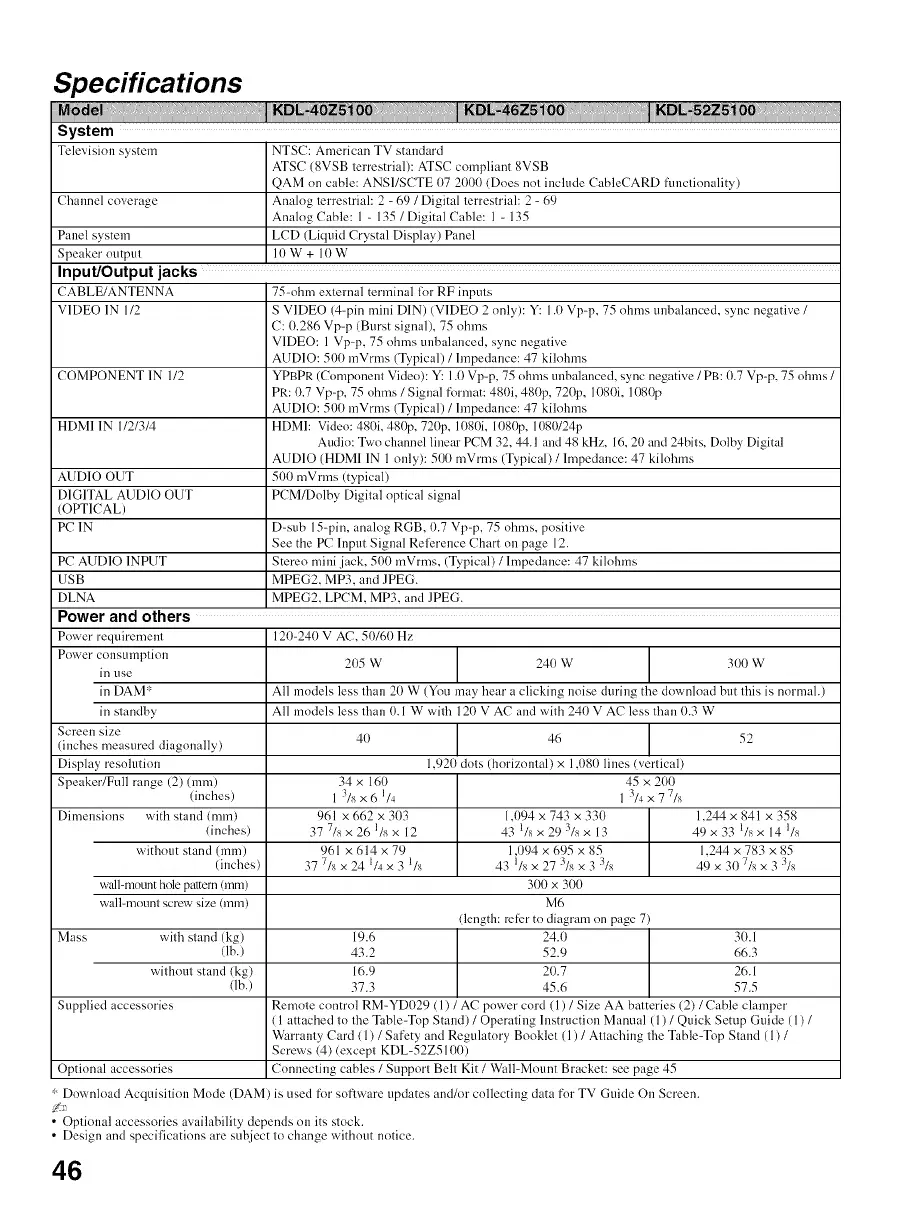

Specifications
System
Television s_stem NTSC: American TV standard
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANS1/SCTE 07 2000 (Does not include CableCARD fimctinnality)
Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
Panel system LCD (Liquid Crystal Display) Panel
Speaker output l0 W + l0 W
Input/Output jacks
CABLE/ANTENNA 75-ohm external terminal lor RF inputs
VIDEO 1N 1/2 S VIDEO (4-pin mini DIN) (VIDEO 2 only): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative /
C: 0.286 Vp-p (Burst signal), 75 ohms
VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative
AUDIO: 500 mVrms (T_pical) / hnpedauce: 47 kilnhms
COMPONENT 1N 1/2 YPBPR (Component Vide(>): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / PB: 0.7 Vp-p, 75 ohms /
PR: 0.7 Vp-p, 75 ohms / Signal fi)rmat: 480i, 480p, 720p, 1080i, 1080p
AUDIO: 500 mVrms (T_pical) / hnpedauce: 47 kilnhms
HDMI 1N 1/2/3/4 HDMI: Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p
Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits, Dnlby Digital
AUDIO (HDMI 1N 1 only): 500 mVrms (T_pical) / Impedance: 47 kilohms
AUDIO OUT 5t)I) mVrms (typical)
D1GITAL AUDIO OUT PCM/Dolby Digital optical signal
(OPTICAL)
PC 1N [)-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive
See the PC Input Signal Relizreuce Chart on page 12.
PC AUDIO INPUT Stereo mini jack, 500 mVrms, (T_pical) / Impedance: 47 kilohms
USB MPEG2, MP3, and JPEG.
DLNA MPEG2, LPCM, MP3, and JPEG.
Power and others
120-240 V AC, 50/60 Hz
205 W 240 W 31)0W
All models less than 21) W (You may hear a clicking noise during the download but this is normal.)
All models less than 0.1 W with 120 V AC and with 241) V AC less than 0.3 W
Power requirement
Power cousunlptiou
in use
in [)AM"'
in standby
Screen size
(inches measured diagonally) 40 46 52
Display resolution 1,920 dots (horizontal) x 1,080 lines (vertical)
Speaker/Full range (2) (ram) 34 x 160 45 x 200
(inches) 1 3/s x 6 1/4 1 3/4 X7 7/S
Dimensions with stand (ram) 961 x 662 x 303 1,094 x 743 x 330 1,244 x 841 x 358
(inches) 37 7/s x 26 1/s x 12 43 I/s x 29 3/s x 13 49 x 33 I/s x 14 1/s
without stand (ram) 961 x 614 x 79 1,094 x 695 x 85 1,244 x 783 x 85
(inches) 37 7/s x 24 I/4 x 3 I/s 43 1/s x 27 3/s x 3 3/s 49 x 30 ?/s x 3 3/s
wall-mount hole paltcm (ram) 300 x 300
wall-mount sc)vw size (ram) M6
(length:)v.fi_.r to diagram on page 7)
Mass with stand (kg) 19.6 24.0 30.1
(lb.) 43.2 52.9 66.3
without stand (kg) 16.9 20.7 26.1
(lb.) 37.3 45.6 57.5
Supplied accessories Remote control RM-YD029 (1) / AC power cord (1) / Size AA batteries (2) /Cable clamper
(1 attached to the Table-Top Stand) / Operating Instruction Manual (1) / Quick Setup Guide (1) /
Warranty Card (1) / Safety and Regulatory Booklet (1) / Attaching the Table=Top Stand ( 1) /
Screws (4) (except KDL-52Z5100)
Optional accessories Connecting cables / Support Belt Kit / WM1-Mount Bracket: see page 45
Download Acquisition Mode (DAM) is used fl>r software updates and/or collecting data fnr TV Guide On Screen.
• Optional accessories availability depends on its stock.
• Design and specifications are subject to change without notice.
