HCD-FC8/FC9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

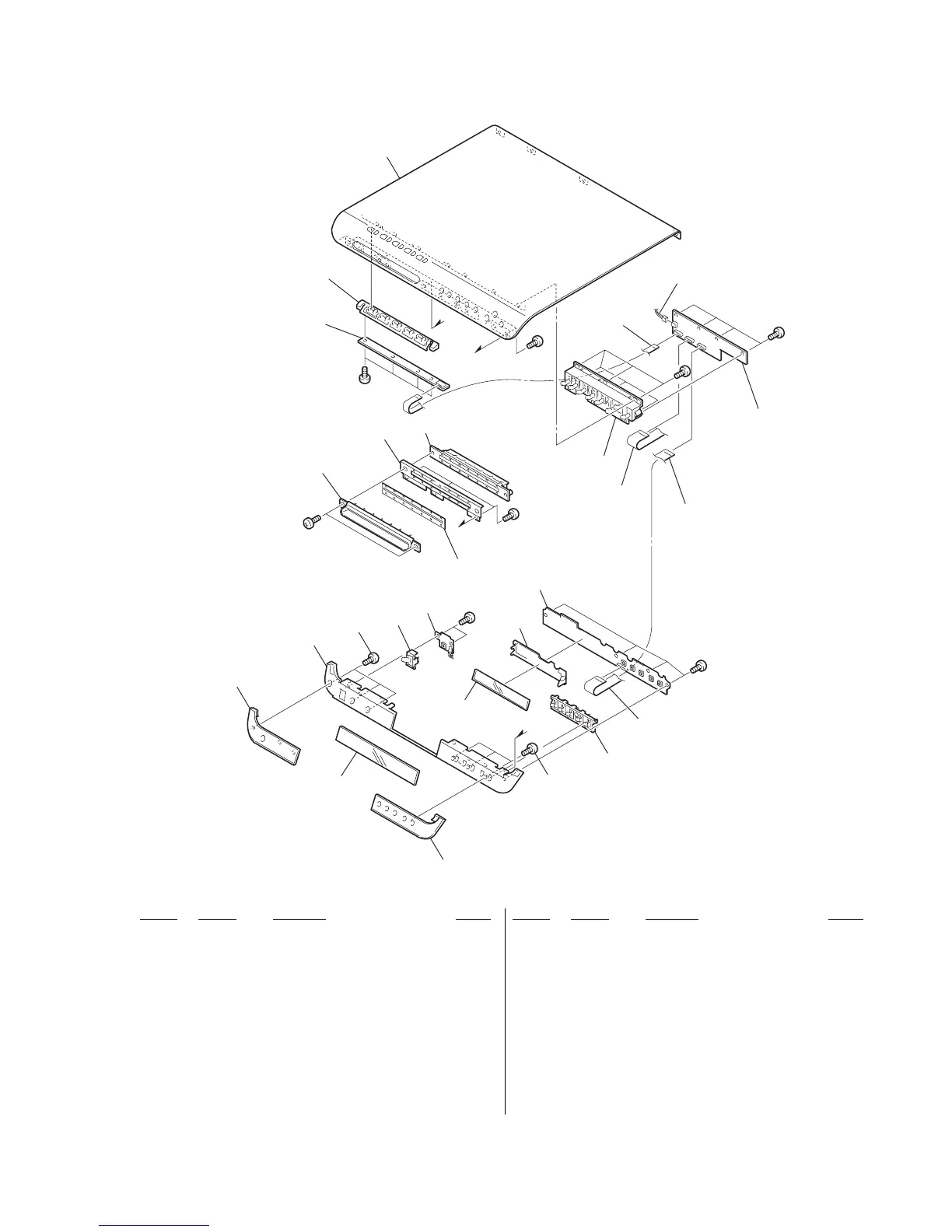

8-2. FRONT PANEL SECTION
51 4-248-518-01 FRONT (AL) PANEL
52 4-248-530-01 FRONT (ML) PANEL
53 4-248-525-11 PANEL TOP (L)(FC8)
53 4-248-525-21 PANEL TOP (L)(FC9)
54 4-248-526-01 PANEL TOP (R)
55 4-931-757-31 SCREW (DIA.2.6X8)(IT3B), TAPPING
56 X-4955-806-1 WINDOW SUB ASSY
57 X-4955-807-1 POWER BUTTON SUB ASSY
58 1-689-352-12 LED BOARD
59 4-248-538-01 FL, HOLDER
60 A-4747-616-A FL BOARD, COMPLETE
61 4-248-528-01 BAND BUTTON
62 X-4955-805-1 DISC BUTTON SUB ASSY
63 1-689-345-12 KEY BOARD
64 4-248-529-01 PLAY BUTTON
65 A-4747-964-A DDCON BOARD, COMPLETE
66 4-249-656-01 SLOT DISC
67 4-249-659-01 COVER SLOT
68 4-249-657-01 SLOT DISC (INSIDE)
FL801 1-518-924-11 INDICATOR TUBE, FLUORESCENT
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
51
52
55
57
58
59
60
62
63
64
65
66
67
68
55
56
53
54
61
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
not supplied
FL801
a
b
b
a
not supplied
not supplied
not supplied
not supplied
