11
HCD-FC8/FC9
Note: Follow the disassembly procedure in the numerical order given.

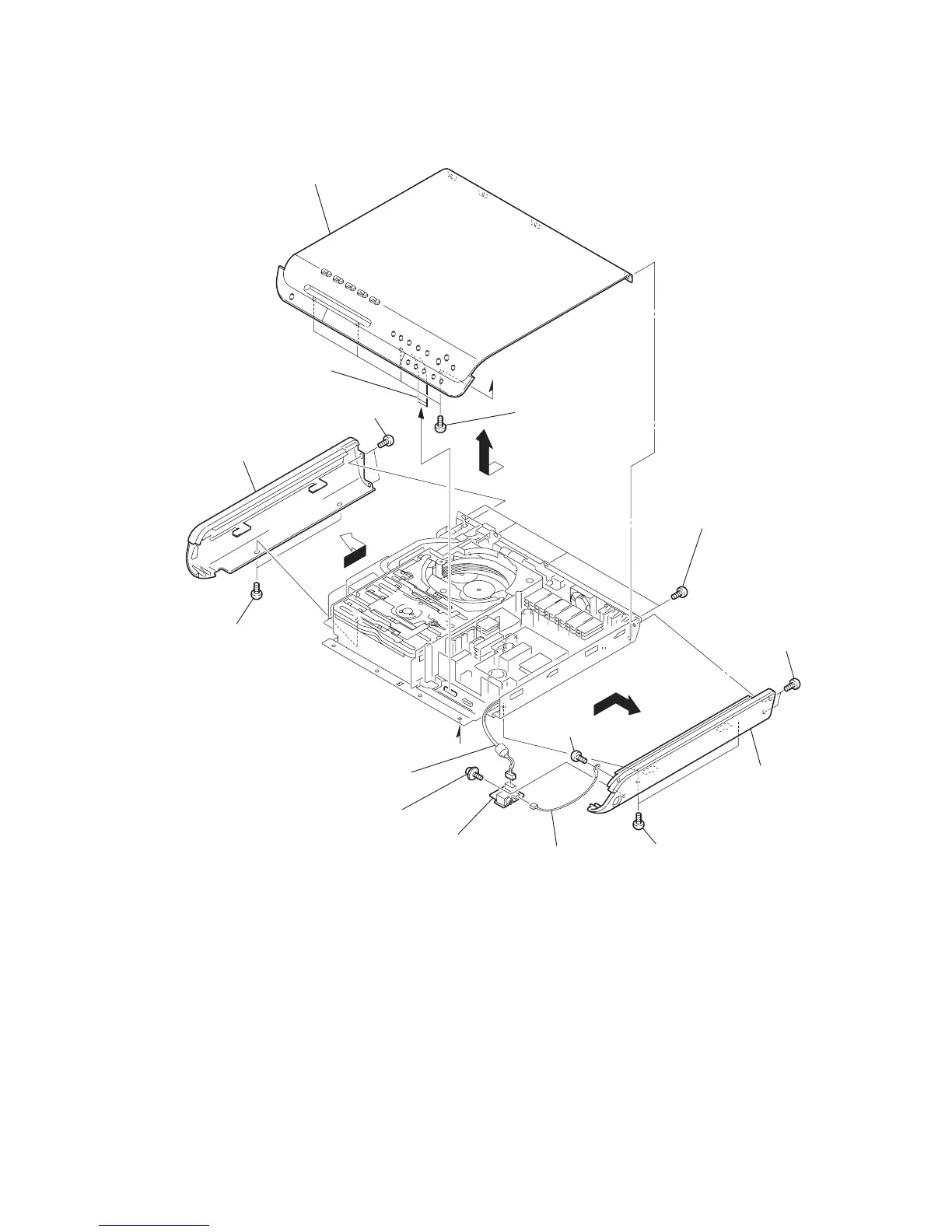

3-1. FRONT PANEL SECTION, SIDE PANEL (L)/(R) SECTION
a
a
1 four screws
(+BV SUMITITE B3)
6 two screws
(+BVTP 3
× 8)
qf two screws
(+BVTP 3
× 8)
0 screw
(+BTP 3
× 6)
qa screw
qg two screws
(+BVTP 3
× 8)
7 two screws
(+BVTP 3
× 8)
2 four screws
(+BV SUMITITE B3)
3
4
wire (flat type)(CN005)
9 connector (CN900)
qd HP board
qs connector
(CN901)
8 side panel (L)
qh side panel (R)
5 front panel section
