Sony HCD-FC8 User Manual

12

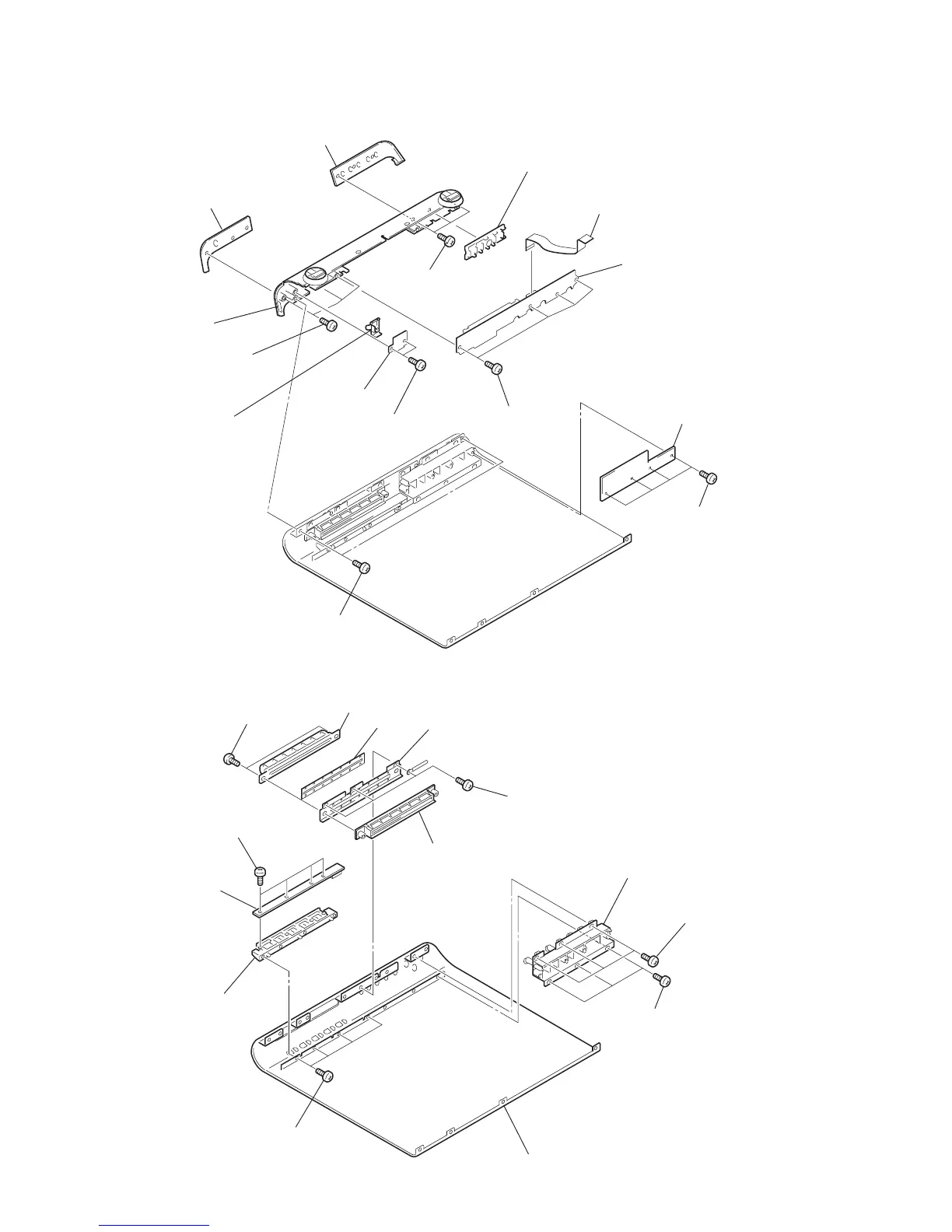

HCD-FC8/FC9
2 DDCON board
9 FL board
5 LED board
6 power button sub assy
1 four screws
(+BVTP 3
× 8
)
7 four screws
(+BVTP 3
× 8)
qd three screws
(+BVTP 3
× 8)
0 three screws
(+BVTP 3
× 8)
3 two screws
(+BVTP 3
× 8)
4 two screws
(+BVTP 3
× 8)
8 wire (flat type)
qa panel top (L)
qf panel top (R)
qs band button
qg front (ml) panel
3-2. DDCON BOARD, LED BOARD, FL BOARD
6 KEY board
7 disc button sub assy
1 three screws
(+BVTP 3 × 8)
8 three screws
(+BVTP 3
× 8)
9 two screws
(+BVTP 3
× 8)
4 four screws
(+BVTP 3 × 8)
5 four screws
(+BTP 2.6
× 6)
2 three screws
(+BVTP 3 × 8)
3 play button
0 slot disc
qa sheet
qs slot disc (inside)
qd cover slot
qf front (al) panel
3-3. KEY BOARD
