Sony HCD-FC8 User Manual

18
HCD-FC8/FC9

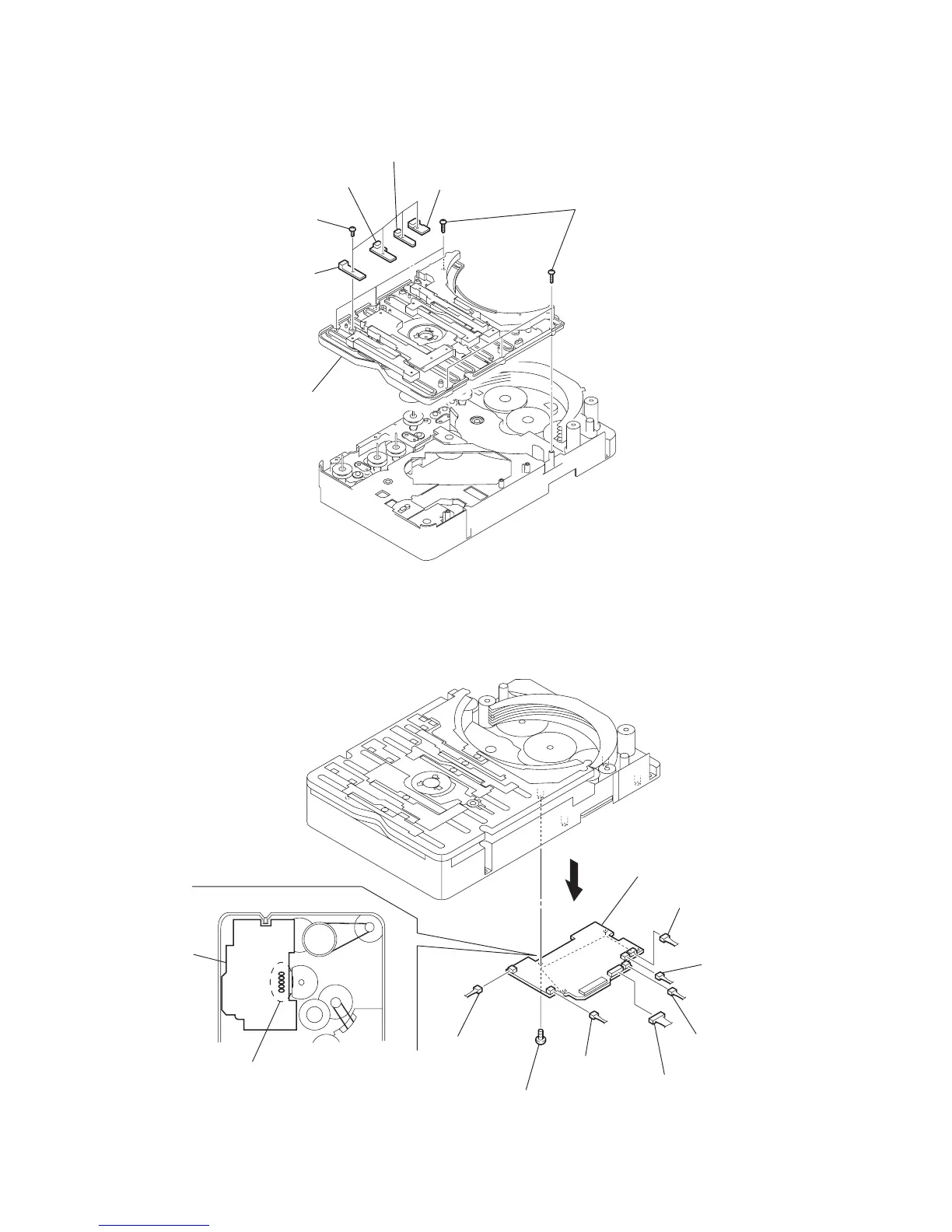

3-12. SW BOARD, BRACKET (TOP) ASSY
6 six screws
(BVTP2.6 × 8)
5 SW board (4)
4 SW board (3)
3 SW board (2)
2 SW board (1)
7 bracket (top) assy
1 four screws
(BTP2.6 × 6)
3-13. RELAY BOARD
1 Remove five solders.
– bottom view –
RELAY board
4 connector
(CN703)
5 connector
(CN702)
2 four screws
(BVTP2.6
× 8)
6 connector
(CN710)
7 connector
(CN706)
8 connecto
r
(CN707)
9 connector
(CN708)
0 RELAY board
3
