Sony HCD-FC8 User Manual

17
HCD-FC8/FC9
3 boss
4 boss
5 boss
6 base unit
(DVBU16)
1 screw
(PTPWHM2.6
)
2

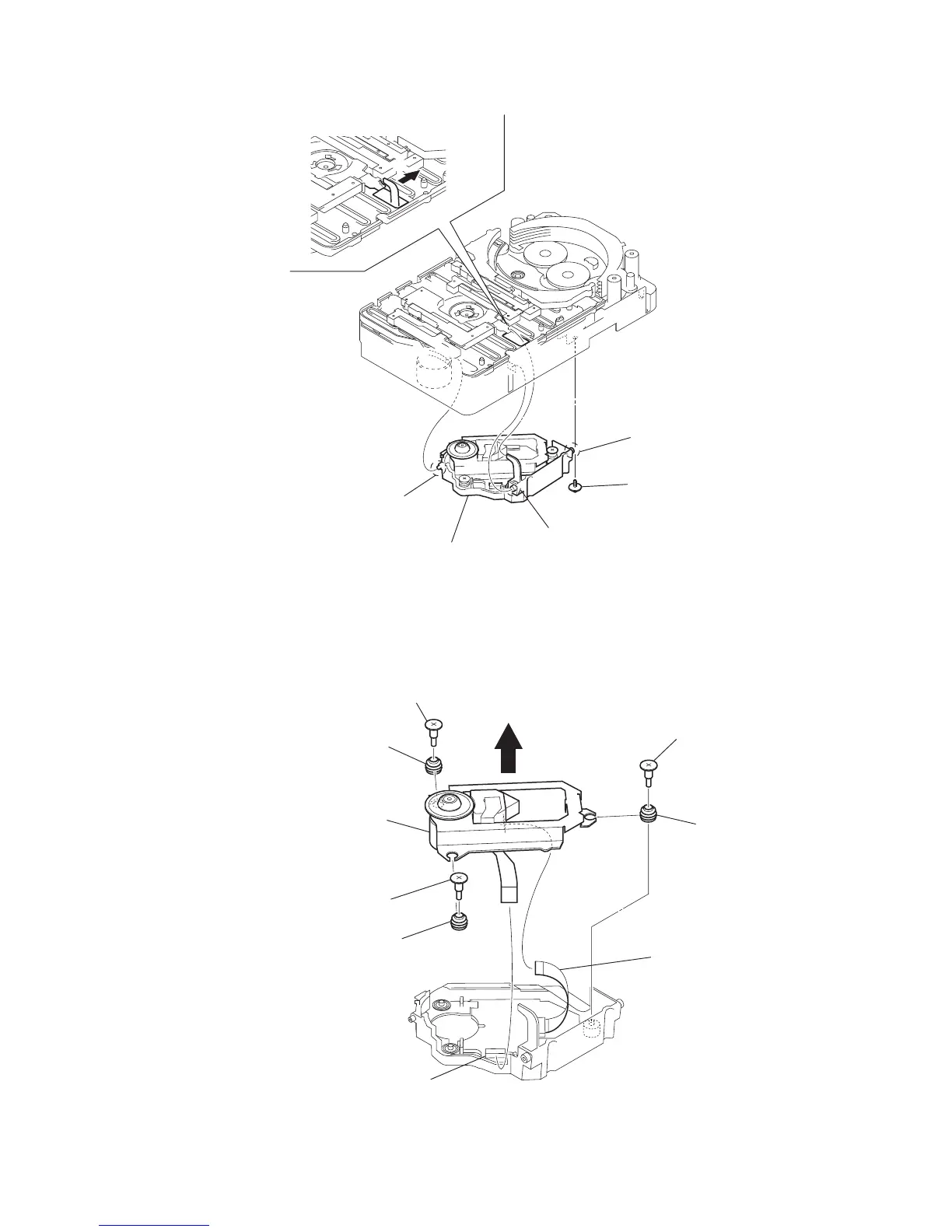

3-10. BASE UNIT (DVBU16)
3-11. PICK-UP UNIT (TDP022W)
6 flexible board
8 insulator
7 insulator
9 insulator
5 connector
(CN003)
2 step screw (M
)
1 step screw (M)
0 pick-up unit (TDP022W)
4
3 step screw (M)
