HCD-FC8/FC9

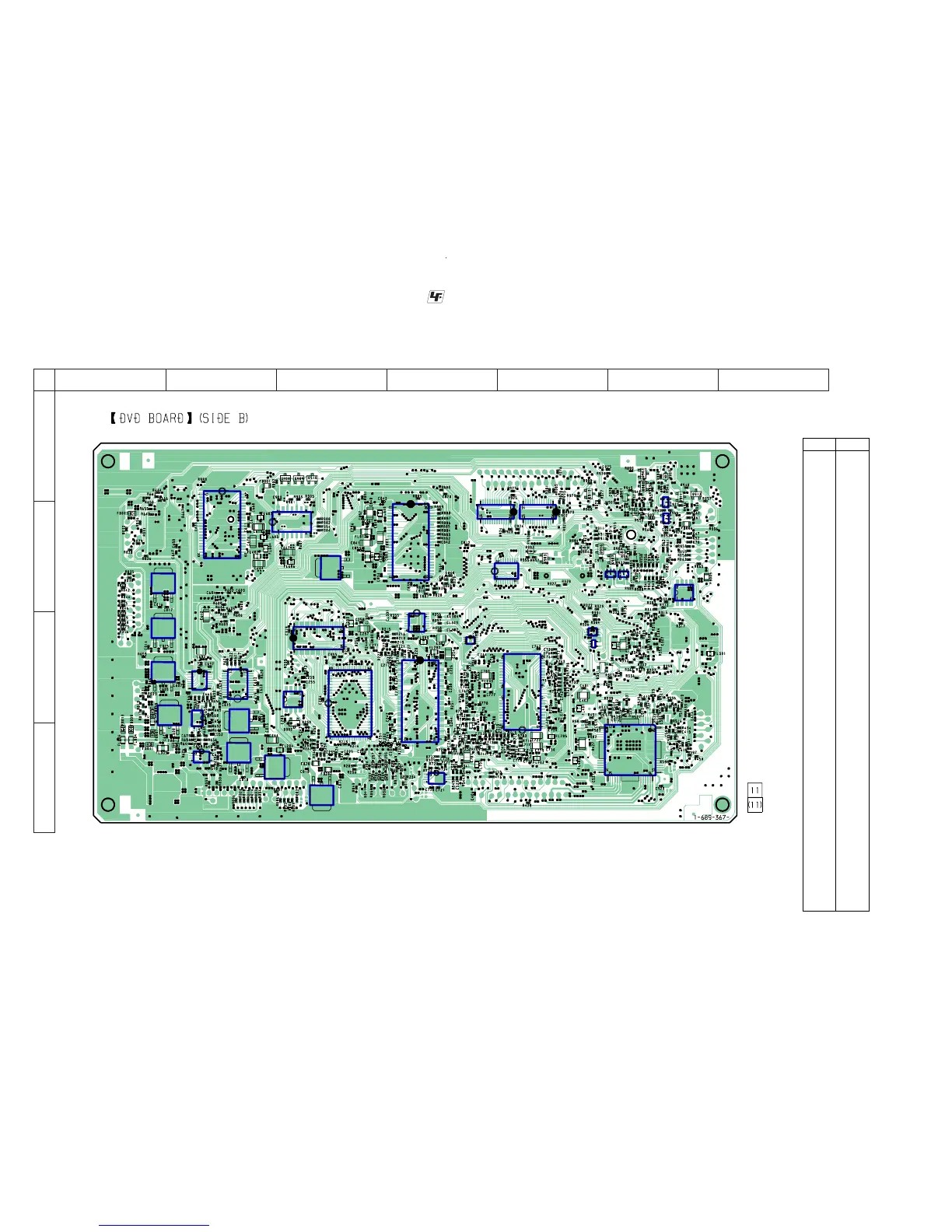

7-8. PRINTED WIRING BOARD – DVD SECTION (SIDE B) – • See page 35 for Circuit Boards Location.
• : Uses unleaded solder.
IC005
IC604
IC004
IC600
IC601
IC602
IC006
IC203
IC608
IC002
IC603
IC610
IC001
IC808
IC303
IC814
IC205
IC501
IC706
IC703
IC202
IC215
IC900
IC702
IC906
IC902
IC812
IC903
IC302
IC802
IC803
IC904
IC907
IC905
IC003
12
A
B
C
D
34567
R969
FC8
• Semiconductor
Location
Ref. No. Location
D902 B-6
D903 B-5
D904 B-6
D906 B-5
D907 A-6
IC001 D-2
IC002 D-2
IC003 C-2
IC004 C-1
IC005 B-1
IC006 D-3
IC202 C-4
IC203 C-3
IC205 C-3
IC215 C-3
IC302 B-6
IC303 C-4
IC501 D-6
IC600 C-1
IC601 C-2
IC602 C-2
IC603 D-2
IC604 B-2
IC608 F-10
IC610 C-2
IC702 B-3
IC703 D-4
IC706 C-5
IC802 C-5
IC803 C-5
IC808 B-4
IC812 B-5
IC814 C-4
IC900 B-3
IC902 B-5
IC903 B-6
IC904 B-6
IC905 A-6
IC906 B-4
IC907 B-6
Q301 C-5
Q302 C-3
Q900 A-6
Q901 A-6
Q902 A-6
Q903 B-5
Q906 B-5
Q907 B-6
Q908 A-3
Q909 A-3
Q910 A-3
Q911 A-6
Q912 A-6
Q913 A-5
