HCD-FC8/FC9

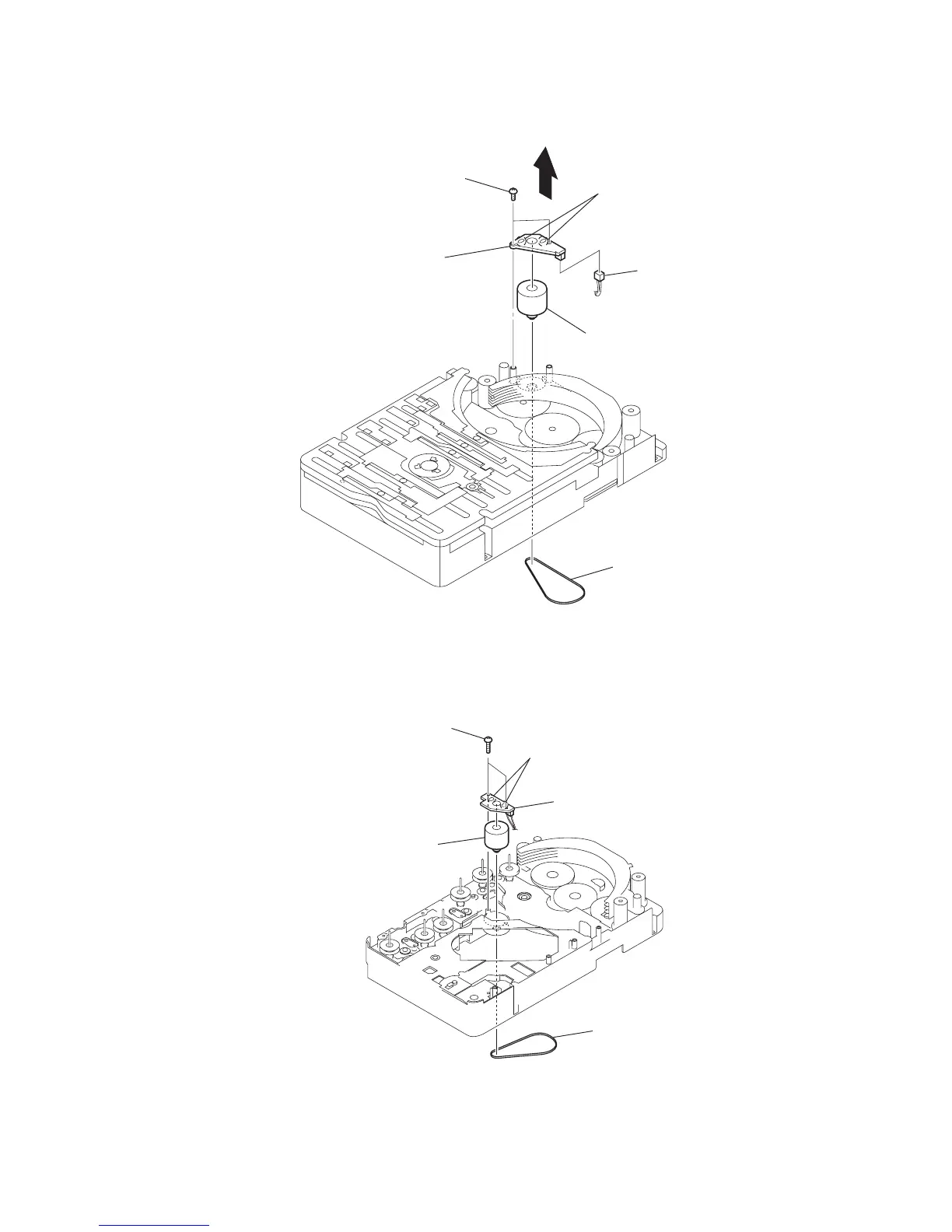

3-14. MOTOR (STOCKER) ASSY (STOCKER)(M761)
6
STOCKER MOTOR board
3
two screws
(BVTP2.6
×
8)
2
Remove two solders
5
connector
(CN761)
4
7
motor (stocker) assy
(stocker) (M761)
1
belt (stocker)
3-15. MOTOR (STOCKER) ASSY (ROLLER)(M781)
1
belt (roller)
4
ROLLER MOTOR boar
d
2
Remove two solders.
3
two screws
(BVTP2.6
×
8)
5
motor (stocker) assy
(roller) (M781)
