HCD-FC8/FC9

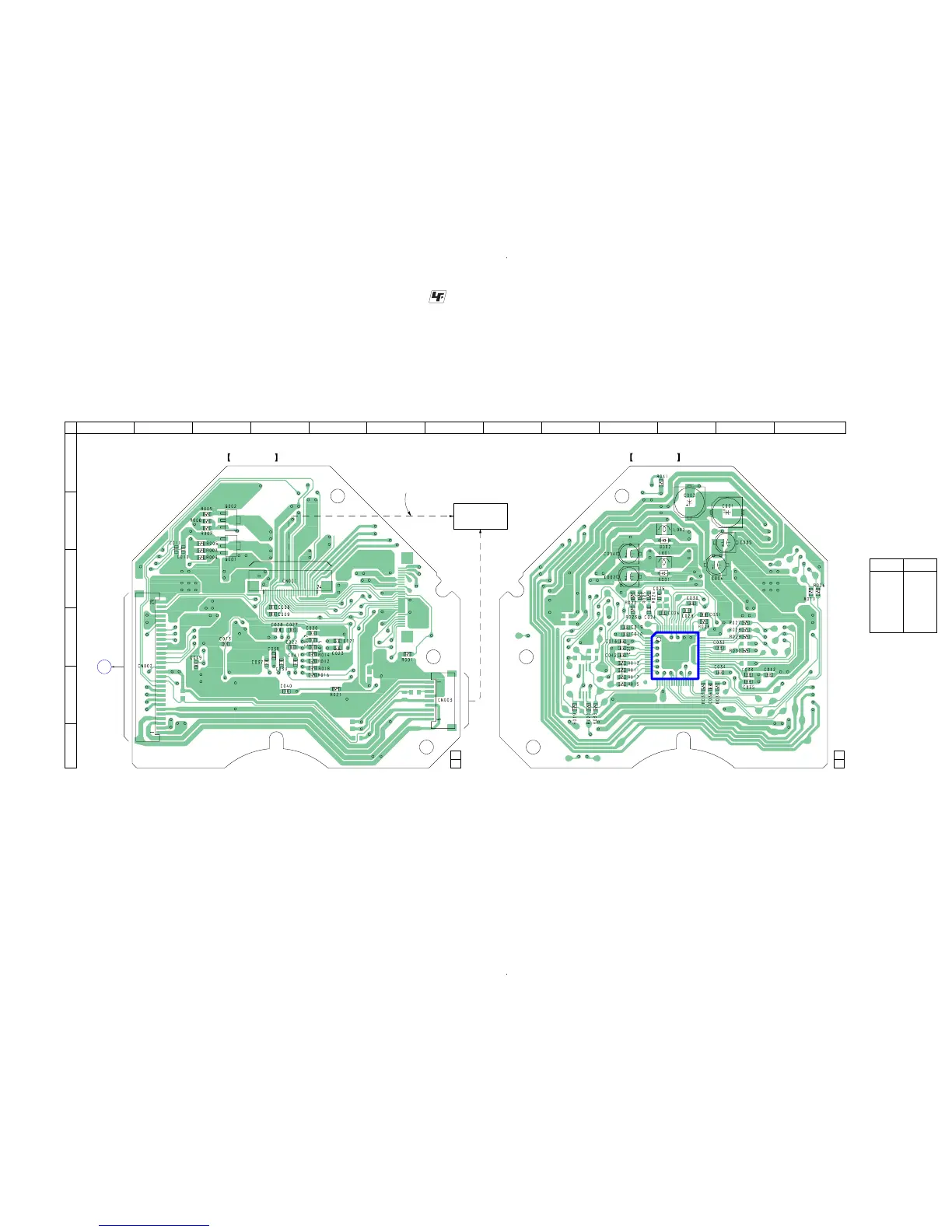

7-3. PRINTED WIRING BOARD – RF SECTION – • See page 35 for Circuit Boards Location.
• : Uses unleaded solder.
(SIDE A)
RF BOARD
(SIDE B)
RF BOARD
IC001
DVD BOARD
CN401
(Page 45)
A
E
E
OPTICAL PICK-UP
BLOCK
(TDP022W)
FLEXIBLE BOARD
1-684-822-
11
(11)
1-684-822-
11
(11)
1
16
17 32
48
33
64 49
1 2 3 4 5 6 7 8 9 10 11 12 13
A
B
C
D
E
F
• Semiconductor
Location
Ref. No. Location
D001 C-11
D002 B-11
IC001 D-11
Q001 B-3
Q002 B-3
