Sony HD-IS10 User Manual

HCD-IS10
12

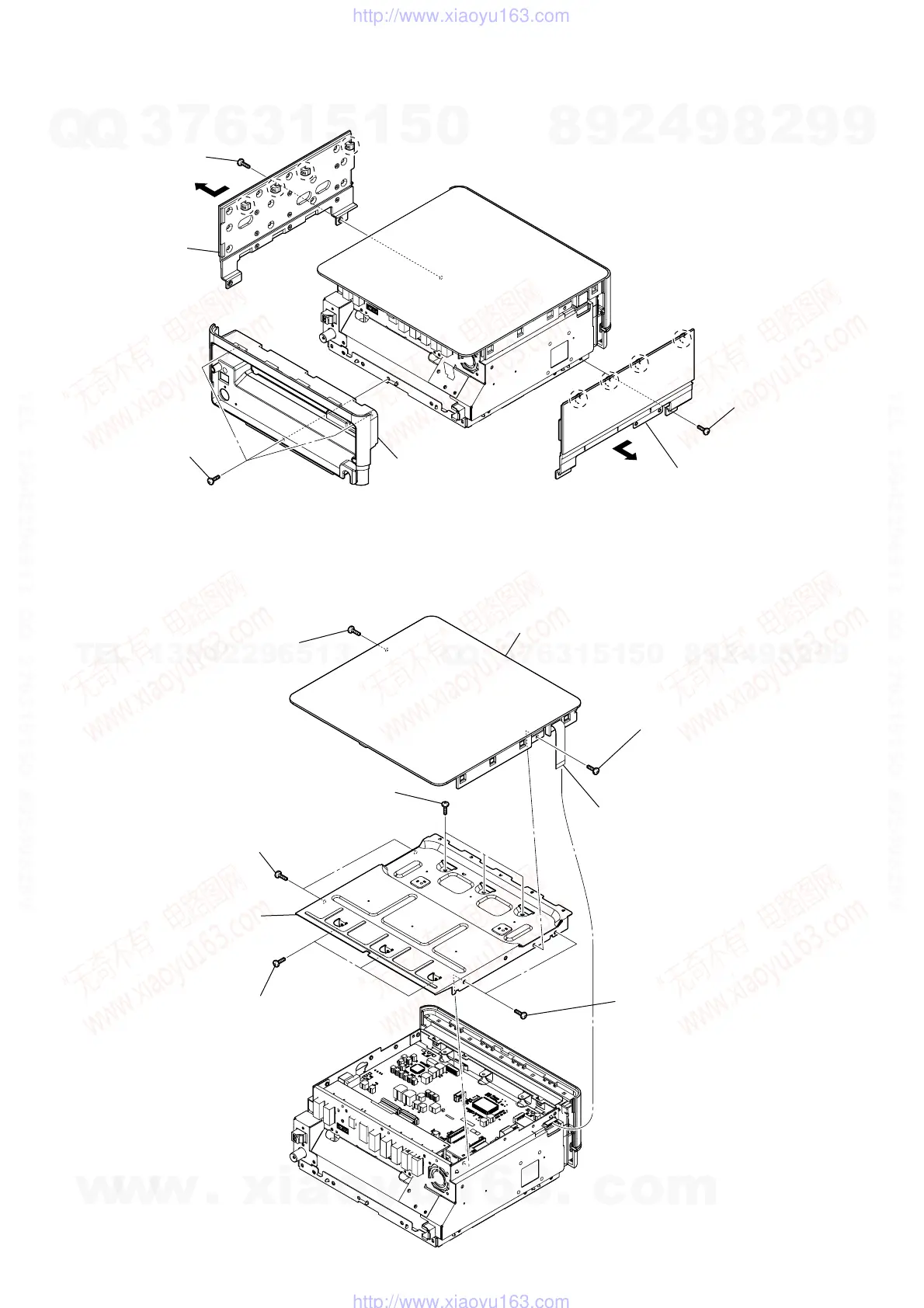

3-4. PANEL (SIDE-L/R) ASSY
3 screws
(BVTP3
× 8)
4 panel (side-R) assy
5 screws
(BVTP3
× 8)
6 panel (side-L) assy
1 three screws
(BVTP3
× 8)
2 cover (rear) assy
– back view –
3-5. PANEL (TOP) BLOCK, SHIELD PLATE (TOP)
2 screws
(BVTP3
× 8)
2 screws
(BVTP3
× 8)
5 three screws
(BVTP3
× 8)
6 three screws
(BVTP3
× 8)
4 two screws
(BVTP3
× 8)
4 two screws
(BVTP3
× 8)
7 shield plate (top)
1 wire (flat type) (11 core)
(CN108)
3 panel (top) block
– back view –
