64
HCD-IS10
#1
MAIN board section
#1
#1
#1
#1
not supplied
51
52
53
61
56
53
52
53
52
58
59
60
57
54
55

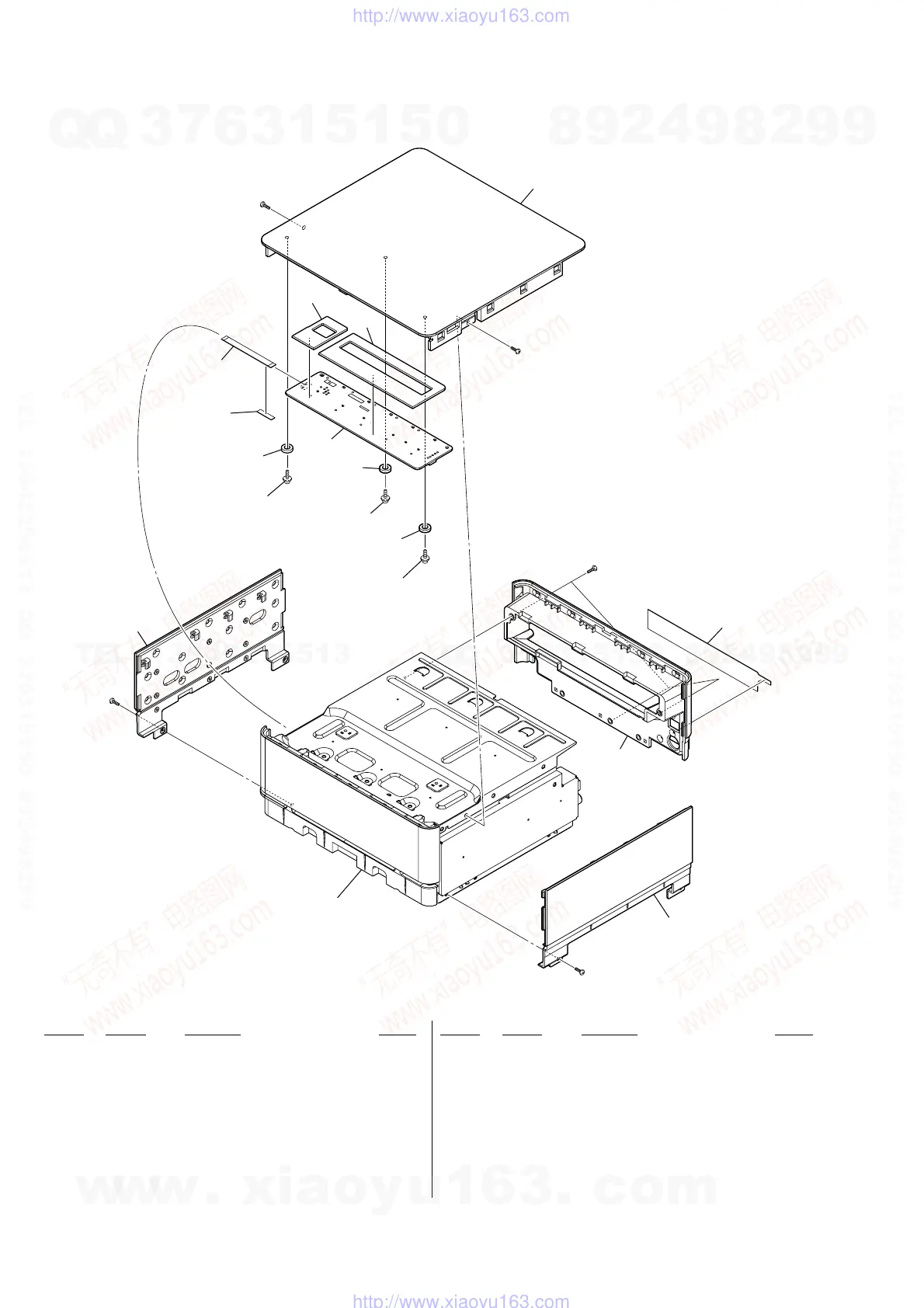

7-2. PANEL (TOP) SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-2177-611-1 PANEL (SIDE-L) ASSY
52 4-933-134-01 SCREW (M2.6), +PTPWH
53 3-100-544-01 CUSHION (TOUCH)
54 X-2179-325-1 INDICATOR (TOUCH-L) ASSY
55 X-2179-326-1 INDICATOR (TOUCH-S) ASSY
56 X-2177-610-1 PANEL (TOP) ASSY (US, CND)
56 X-2177-616-1 PANEL (TOP) ASSY (AEP, RU, UK)
56 X-2177-617-1 PANEL (TOP) ASSY
(E32, EA, SP, TW, AR, TH, AUS, CH)
57 A-1249-887-A TOUCH BOARD, COMPLETE
58 X-2177-613-1 COVER (REAR) ASSY
59 3-113-136-01 LABEL (CONNECTION) (US, CND, AEP, RU, UK,
EA, SP, TW, TH, AUS, CH)
59 3-113-138-01 LABEL (CONNECTION) (E32, AR)
60 X-2177-612-1 PANEL (SIDE-R) ASSY
61 1-828-317-11 WIRE (FLAT TYPE) (11 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ver. 1.1
