HCD-IS10
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-2177-614-1 COVER (BOTTOM) ASSY
24-225-252-01 CUSHION (FOOT)
3 4-977-358-01 CUSHION
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

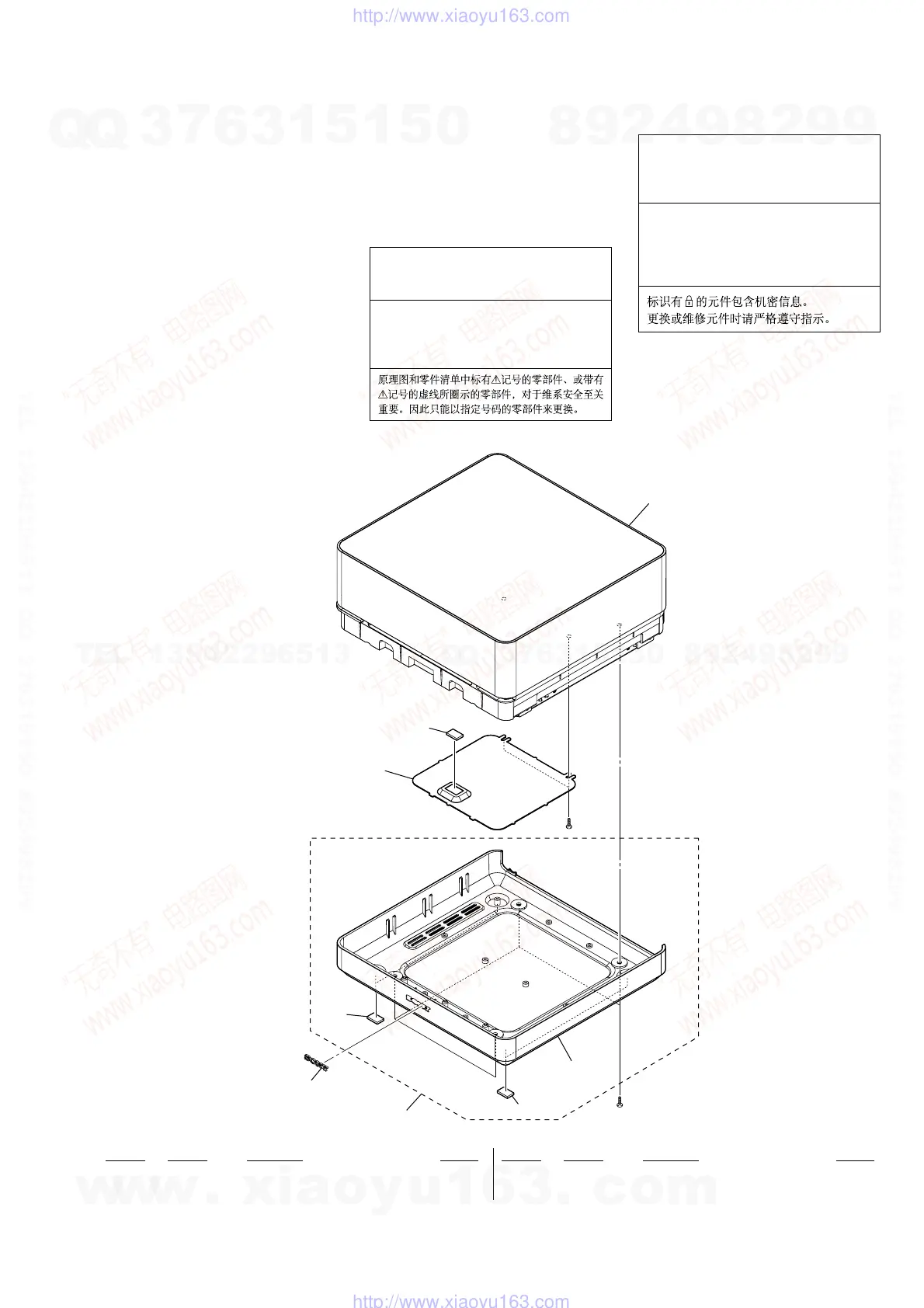

7-1. BOTTOM COVER SECTION
#1
2
2
1
3
#1
not supplied
not supplied
not supplied
panel (top) sectio
E32 : Latin America models except
Argentina
EA : Saudi Arabia model
RU : Russian model
SP : Singapore model
TH : Thai model
TW : Taiwan model
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Abbreviation
AR : Argentina model
AUS: Australian model
CH : Chinese model
CND : Canadian model
The components identified by mark 9 contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifiés par la marque 9
contiennent des informations confidentielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé et /
ou réparé.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiquens pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
