HCD-IS10
14

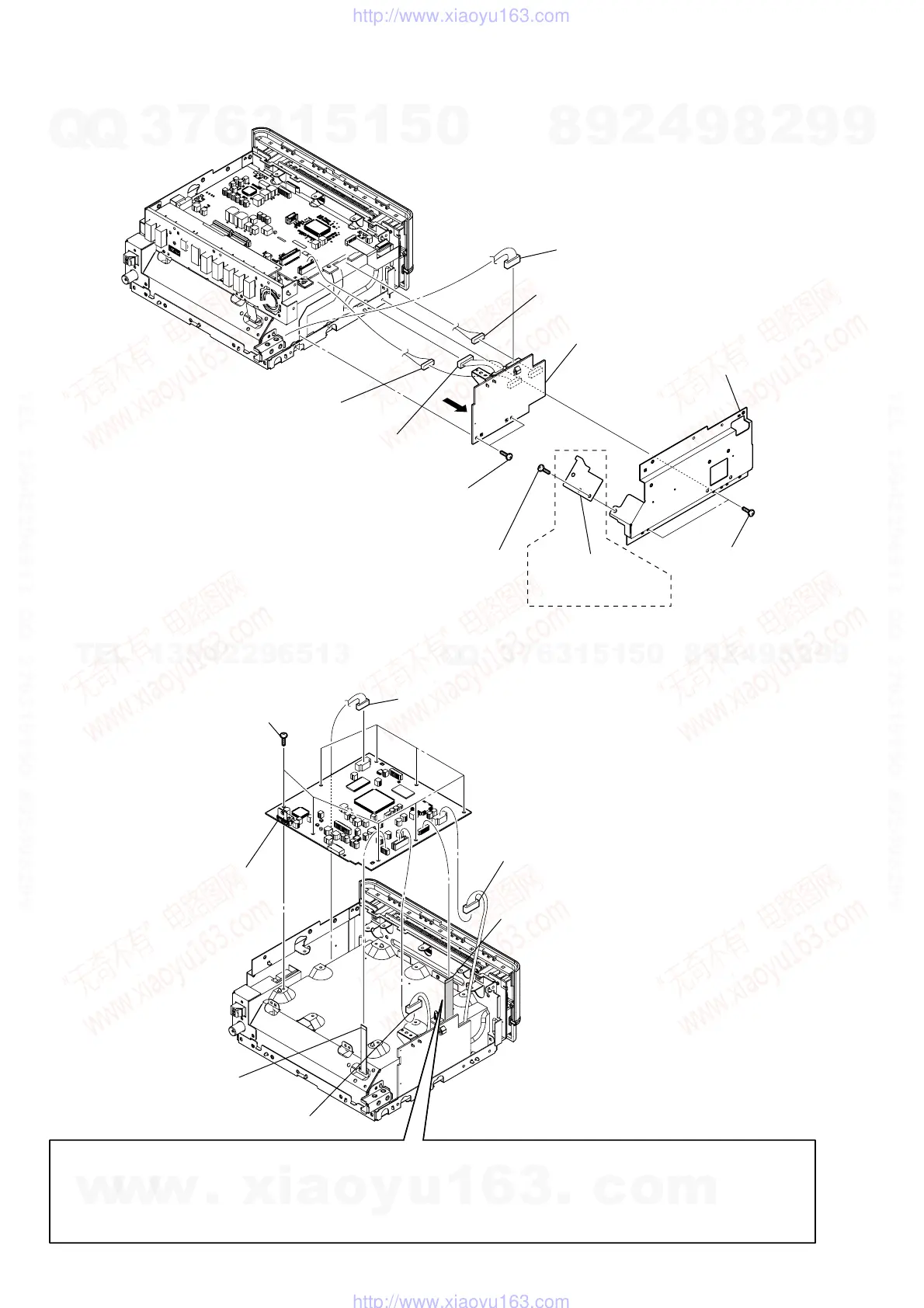

3-8. REG BOARD
5
connector (CN702)
8
0
connector (CN710)
9
connector (CN708)
qa
REG board
6
connector (CN111)
7
two screws
(BVTP3
×
8)
– back view –
1
screw
(BVTP3
×
8)
2
insulating sheet
(motor)
US, Canadian
3
two screws
(BVTP3
×
8)
4
shield plate (side-L)
3-9. DMB-IVHD BOARD
6
eight screws
(BVTP3
×
8)
3
connector (CN201)
7
DMB-IVHD board
4
connector (CN105)
5
connector (CN601)
1
wire (flat type) (7 core)
(CN202)
2
wire (flat type) (24 core)
(CN101)
Perform work with this wire (flat type) (24 core) connected, or make a bridge as mentioned above and then disconnect the wire
(flat type) (24 core). (Optical pick-up will be destroyed without bridging.) On the contrary at the installation, connect the wire (flat type)
(24 core) first, and then remove the bridge.
Note: For a soldering iron, use the one with a ground wire. (Refer to DISASSEMBLY 3-2. OPTICAL PICK-UP BLOCK (KHM-313CAB))
PRECAUTION WHEN REMOVING WIRE (FLAT TYPE) (24 CORE)
– back view –
