HCD-IS10

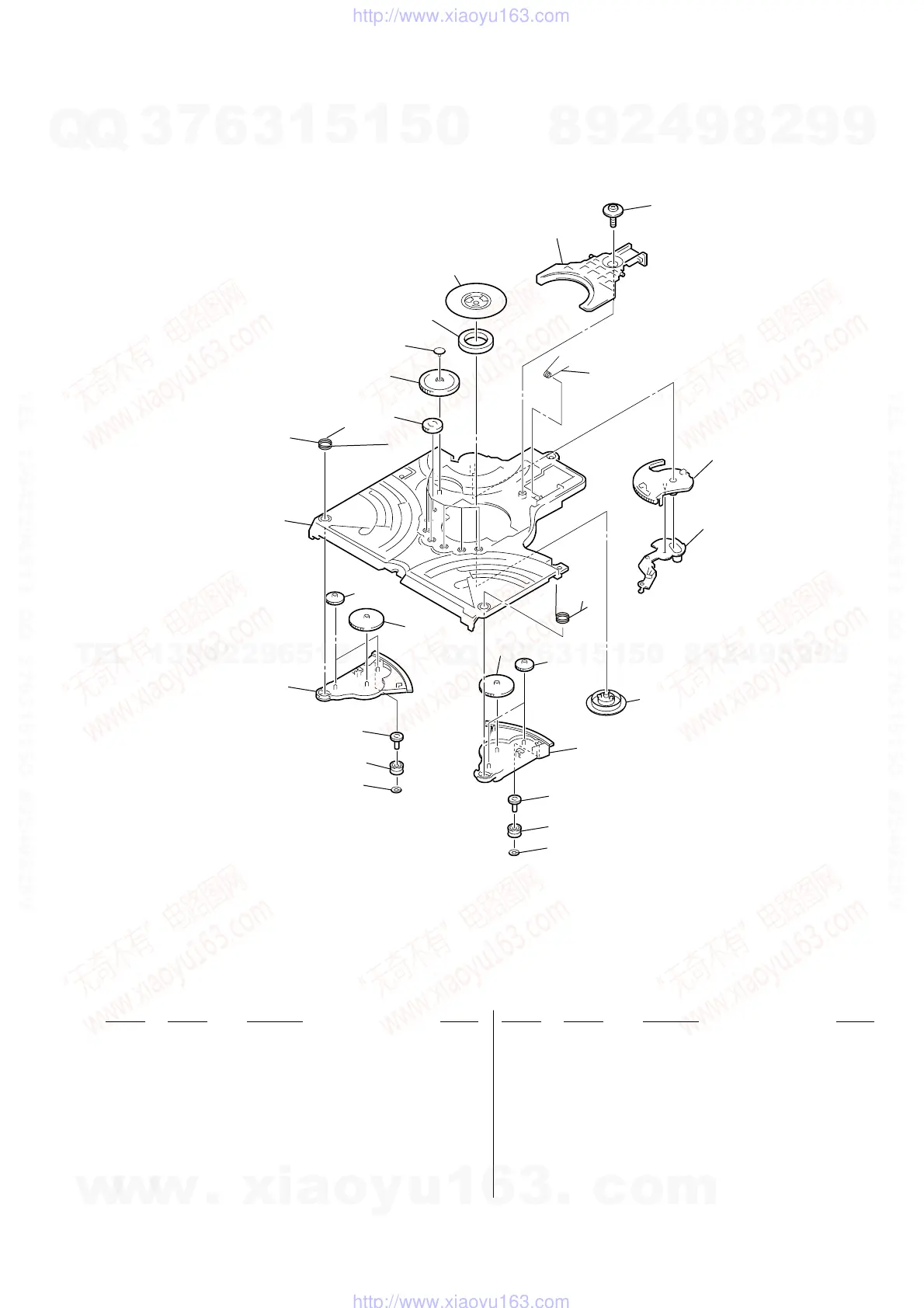

7-7. MECHANISM DECK SECTION-3
(CDM86A-DVBU101)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
651 4-245-627-01 WASHER (6-2.7-0.4)
652 4-245-637-11 ROLLER, RUBBER
653 4-245-649-01 GEAR (IDL-I)
654 4-245-657-11 LEVER (LOADING-R)
655 4-245-647-01 GEAR (IDL-G)
656 4-245-648-01 GEAR (IDL-H)
657 4-245-655-01 CHASSIS (TOP)
658 4-245-631-11 SPT-T (LOADING-R)
659 4-245-650-01 GEAR (IDL-J)
660 4-245-651-11 GEAR (IDL-L)
661 4-245-640-01 GEAR (CAP)
662 4-245-632-11 SPR-T (LOADING-L)
663 4-245-656-11 LEVER (LOADING-L)
664 3-088-752-01 FLOATING SCREW (+PTPWH M2.6)
665 4-245-636-01 SPR-T CL DOWN
666 4-245-658-11 LEVER (DISC STOP)
667 4-245-659-11 LEVER (DISC SENSOR)
668 2-023-062-01 CHUCK PLATE
669 2-023-065-02 LEVER CL UP 1
651
651
652
652
653
654
657
658
659
660
661
not supplied
653
663
664
668
669
667
not supplied
666
655
665
655
656
656
662
