HCD-IS10

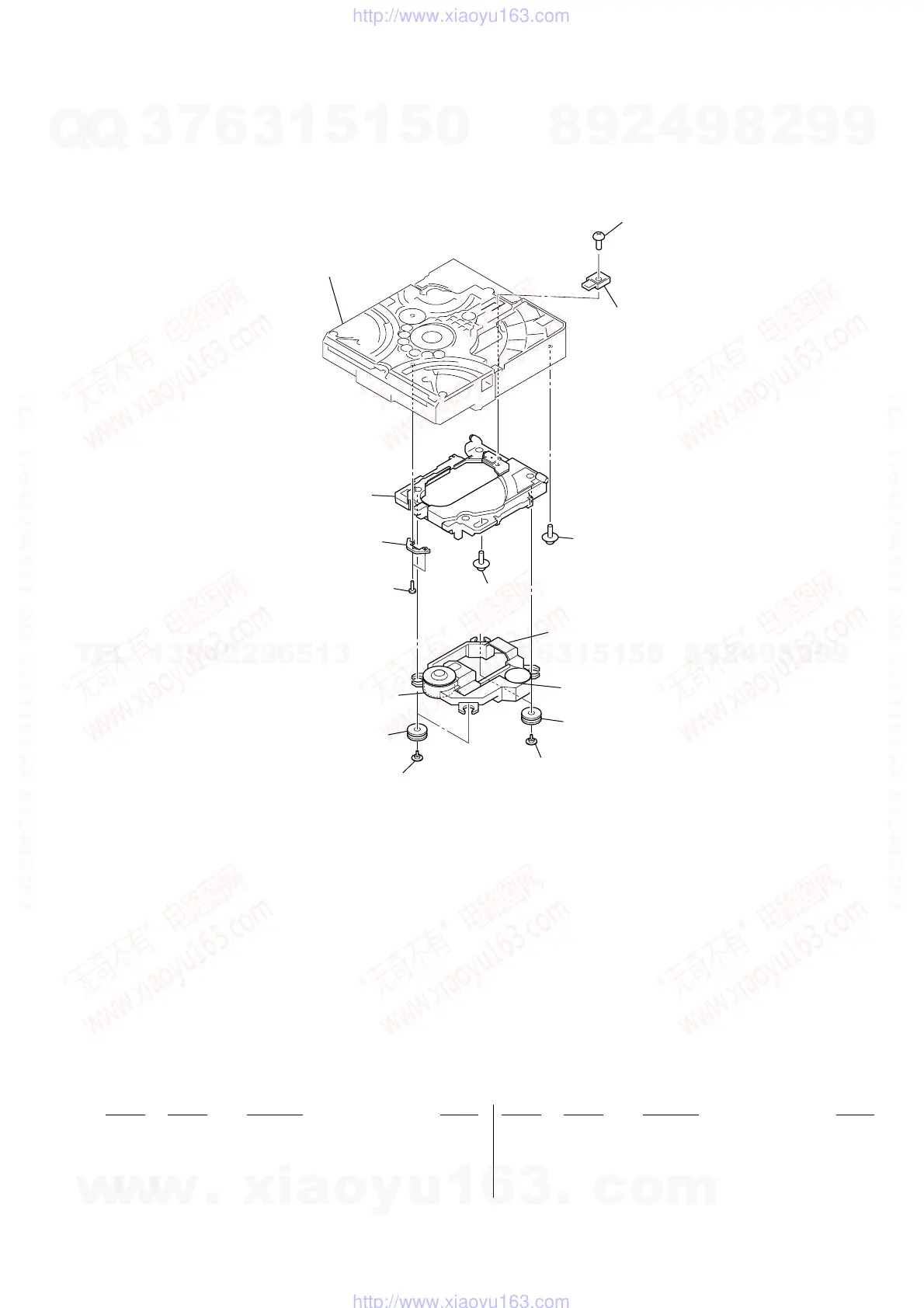

7-5. MECHANISM DECK SECTION-1
(CDM86A-DVBU101)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
551 4-245-639-01 LEVER (CL UP2)
552 3-087-599-01 INSULATOR SCREW
553 3-088-752-01 FLOATING SCREW (+PTPWH M2.6)
554 2-634-618-11 INSULATOR
555 2-023-068-01 TAPPING +B 2.6X8
553
553
559
552
554
557
(including sled motor, spindle motor)
554
552
not supplied
not supplied
not supplied
(spindle motor)
not supplied
(sled motor)
mechanism deck section-2
555
551
0 557 8-820-322-04 OPTICAL PICK-UP BLOCK (KHM-313CAB/
C2RP)(Including sled motor, spindle motor)
559 2-023-066-01 TAPPING +B 2X6
