68
HCD-IS10

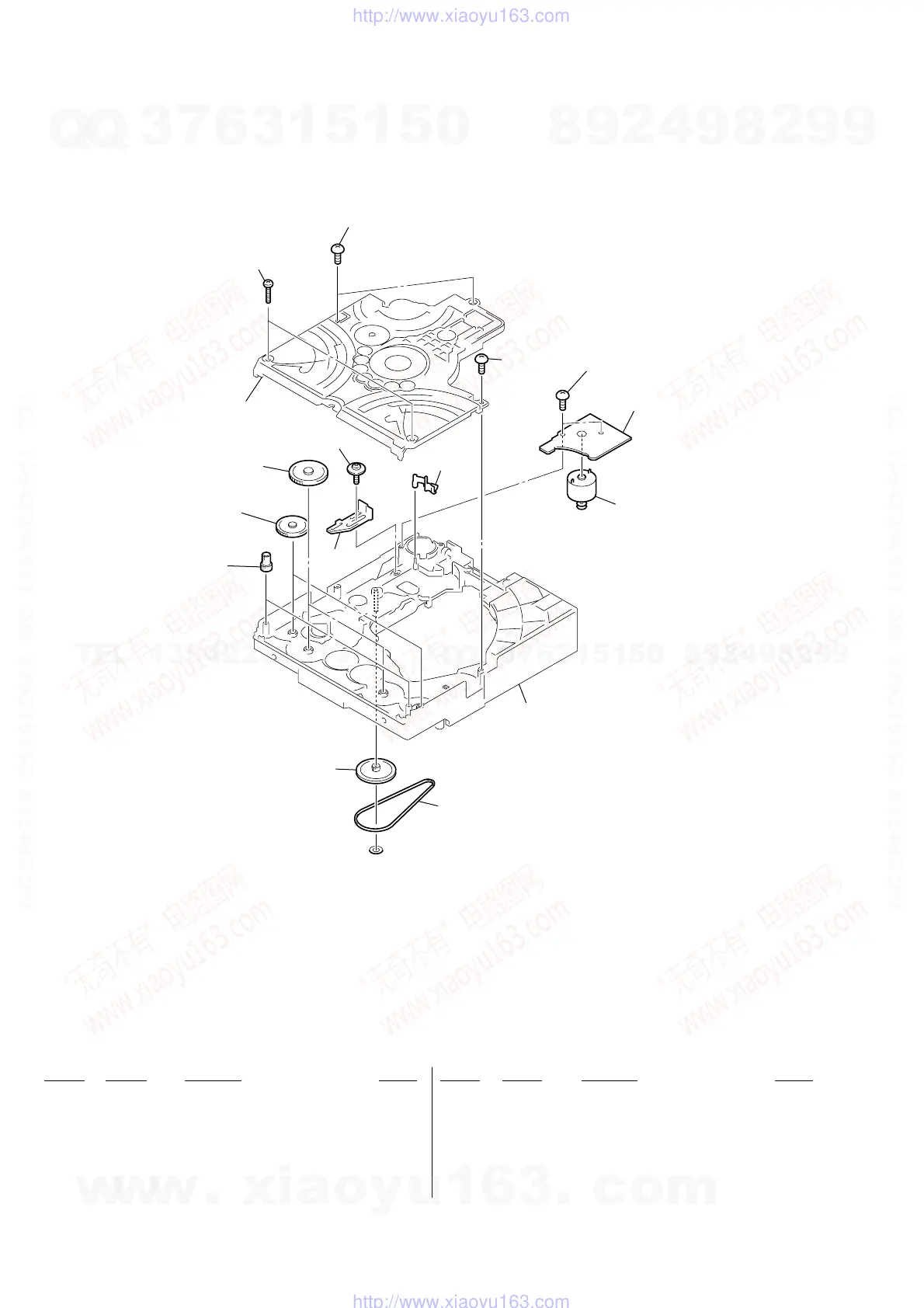

7-6. MECHANISM DECK SECTION-2
(CDM86A-DVBU101)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
601 3-088-752-01 FLOATING SCREW (+PTPWH M2.6)
602 2-023-648-01 TAPPING +B 2X10
603 4-245-653-01 BELT (MOT)
604 4-245-662-02 PULLEY (GEAR)
605 4-245-646-01 GEAR (IDL-F)
606 4-245-644-01 GEAR (IDL-D)
607 4-245-645-01 GEAR (IDL-E)
608 4-246-203-01 LEVER (RELEASE)
609 4-245-630-01 LEVER (SW)
610 2-023-068-01 TAPPING +B 2.6X8
M001 X-4955-496-1 MOTOR (PULLEY) ASSY (LOADING)
#12 7-623-921-01 WASHER 1.7, NYLON
mechanism deck section-3
610
602
610
610
609
608
601
607
606
605
604
603
mechanism deck section-4
not supplied
(MS-214 board)
M001
#12
