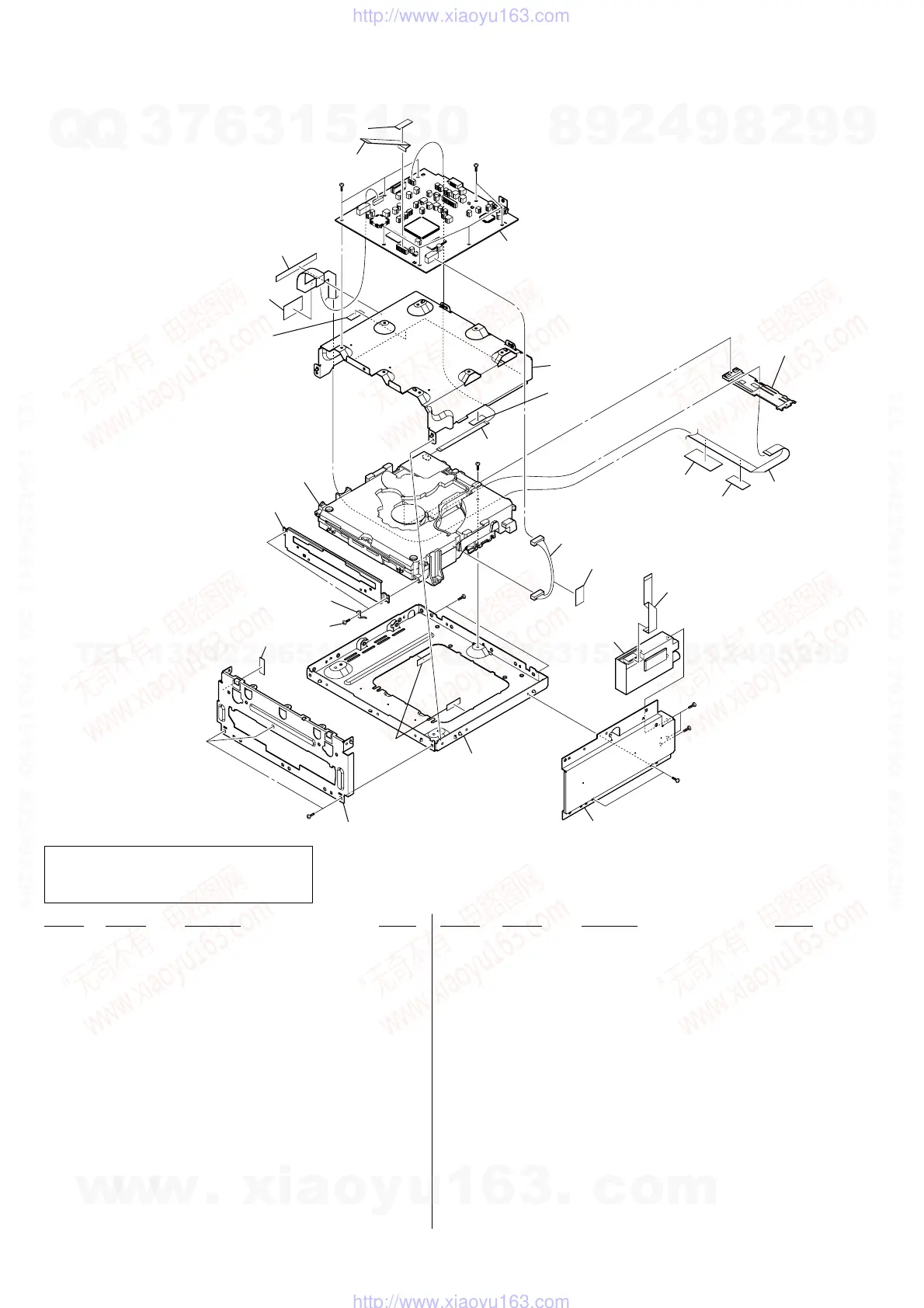

7-4. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 3-087-053-01 +BVTP2.6 (3CR)
152 3-378-109-12 CUSHION, SARANET
9 153 A-1313-854-A DMB-IVHD BOARD, COMPLETE (for SERVICE)
(US, CND)
9 153 A-1313-856-A DMB-IVHD BOARD, COMPLETE (for SERVICE)
(AEP, UK)
9 153 A-1313-858-A DMB-IVHD BOARD, COMPLETE (for SERVICE)
(RU)
9 153 A-1313-859-A DMB-IVHD BOARD, COMPLETE (for SERVICE)
(SP, TW, TH)
9 153 A-1313-860-A DMB-IVHD BOARD, COMPLETE (for SERVICE)
(CH)
9 153 A-1313-861-A DMB-IVHD BOARD, COMPLETE (for SERVICE)
(EA)
9 153 A-1313-862-A DMB-IVHD BOARD, COMPLETE (for SERVICE)
(AUS)
9 153 A-1313-863-A DMB-IVHD BOARD, COMPLETE (for SERVICE)
(E32)
9 153 A-1313-865-A DMB-IVHD BOARD, COMPLETE (for SERVICE)
(AR)
154 1-693-724-11 TUNER (FM/AM) (AEP, RU, UK)
154 1-693-725-11 TUNER (FM/AM) (CH)
154 1-693-726-11 TUNER (FM/AM)
(E32, EA, SP, TW, AR, TH, AUS)
154 1-693-731-11 TUNER (FM/AM) (US, CND)
155 1-828-327-11 WIRE (FLAT TYPE) (13 CORE)
156 1-828-298-11 WIRE (FLAT TYPE) (7 CORE)
157 1-828-954-11 WIRE (FLAT TYPE) (9 CORE)
(US, CND, E32, EA, SP, TW, AR, TH, AUS, CH)
157 1-828-964-11 WIRE (FLAT TYPE) (11 CORE) (AEP, UK, RU)
158 1-828-253-51 WIRE (FLAT TYPE) (24 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-862-01 SCREW +BVTT 2.6X6 (S)
not
supplied
not supplied
not supplied
not supplied
not supplied
not supplied
mechanism deck section-1
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
#2
#1
#1
not supplied
151
152
155
153
156
157
154
not supplied
not supplied
158
not supplied
not supplied
not supplied
Note: If wire (flat type) is replaced, install it after
bending it in the same form as that before
replacement.
