Sony HD-IS10 - Front Panel Block and Mechanism Deck Disassembly

HCD-IS10
15

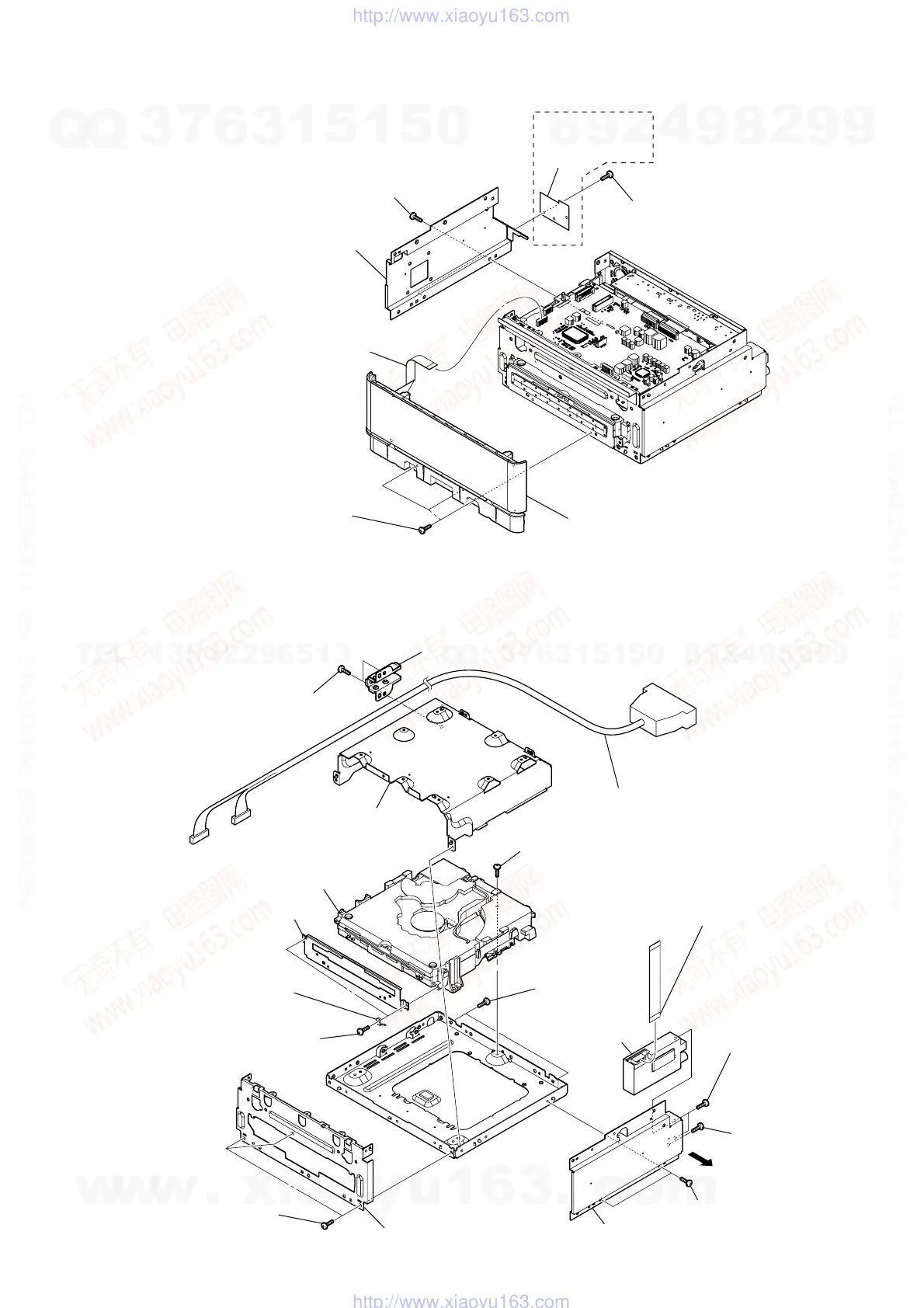

3-10. FRONT PANEL BLOCK
1 screw
(BVTP3 × 8)
3 two screws
(BVTP3
× 8)
6 three screws
(BVTP3 × 8)
4 shield plate (side-L)
5 wire (flat type) (11 core)
(CN109)
7 front panel block
2 insulating sheet
(motor)
US, Canadian
3-11. MECHANISM DECK SECTION (CDM86A-DVBU101)
3
ql
mechanism deck section
(CDM86A-DVBU101)
5 shield plate (side-R)
1 two screws
(BVTP3
× 8)
8 two screws (BVTP3 × 8)
9 bracket (SYS)
4 two screws
(BVTT2.6
× 6)
2 screw
(BVTP3
× 8)
7 tuner (FM/AM)
qa two screws
(BVTP2.6)
qs two ground
plates (panel)
qd bracket (CDM)
0 system cable
qf three screws
(BVTP3
× 8)
qg shield plate (front)
qh two screws
(BVTP3
× 8)
qj sub chassis (HCD)
qk screw
(BVTP3
× 8)
6 wire (flat type)
(9 core: except AEP, UK, Russian models)/
(11 core: AEP, UK, Russian models)
