65
HCD-IS10

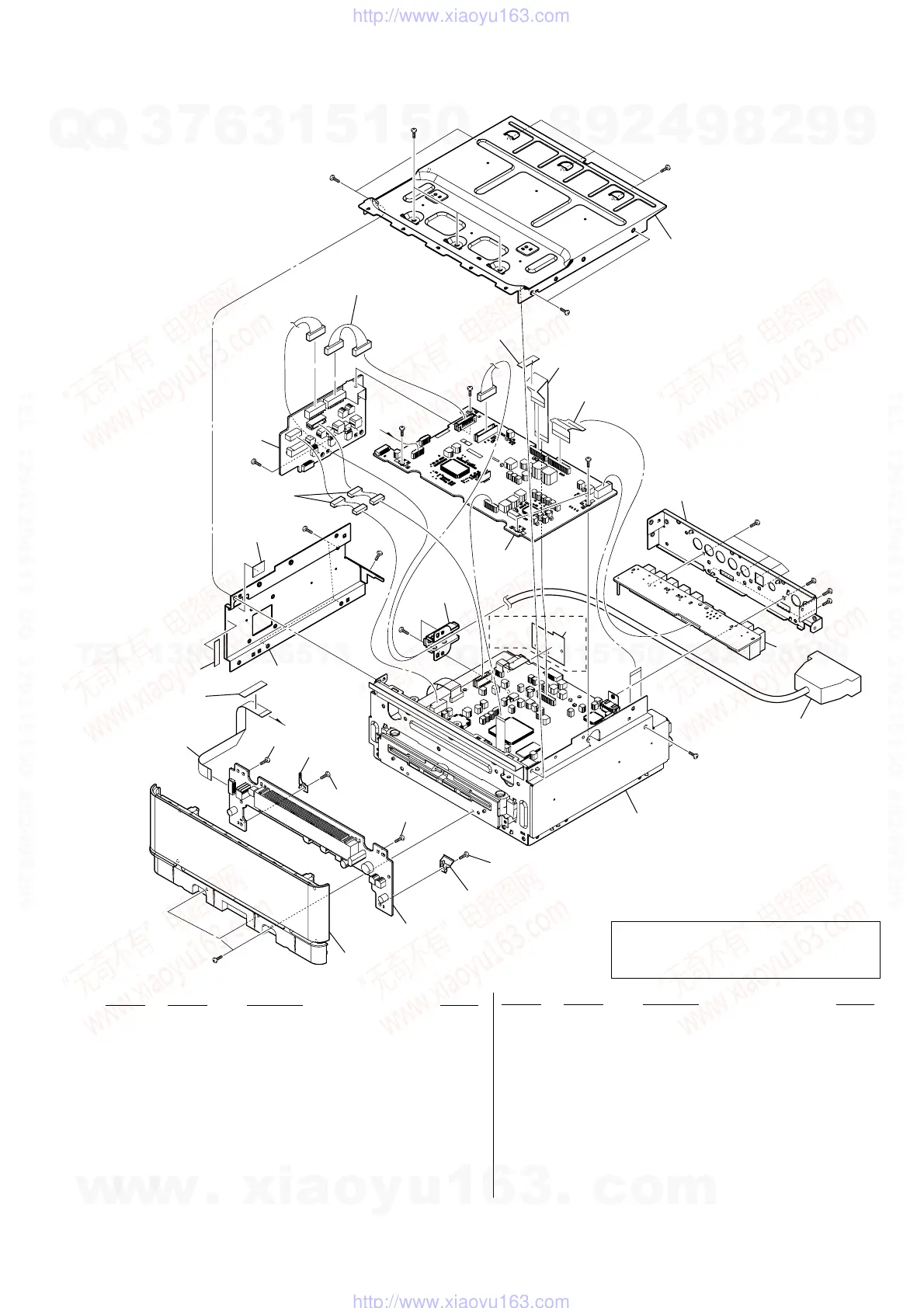

7-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 X-2177-540-1 PANEL ASSY, FRONT
102 A-1249-889-A FL BOARD, COMPLETE
103 2-674-053-01 PLATE (FUNCTION), GROUND
104 3-087-053-01 +BVTP2.6 (3CR)
105 A-1249-890-A REG BOARD, COMPLETE (US, CND, AEP, RU,
UK, EA, SP, TW, TH, AUS, CH)
105 A-1249-995-A REG BOARD, COMPLETE (E32, AR)
106 A-1249-884-A MAIN BOARD, COMPLETE
(US, CND, EA, SP, TW, TH, AUS)
106 A-1249-992-A MAIN BOARD, COMPLETE (E32, AR)
106 A-1251-130-A MAIN BOARD, COMPLETE (AEP, RU, UK)
106 A-1314-590-A MAIN BOARD, COMPLETE (CH)
107 A-1249-891-A IO BOARD, COMPLETE
108 1-833-994-11 CABLE, SYSTEM
109 3-100-549-01 SHEET (MOTOR), INSULATING (US, CND)
110 1-828-317-11 WIRE (FLAT TYPE) (11 CORE)
* 111 3-378-109-01 CUSHION, SARANET
112 1-828-356-11 WIRE (FLAT TYPE) (19 CORE)
113 1-828-365-11 WIRE (FLAT TYPE) (21 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-872-01 SCREW +BVTT 3X8 (S)
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#3
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
not
supplied
(US,
CND)
chassis section
not
supplied
not supplied
not supplied
not supplied
101
102
103
104
104
103
104
110
111
112
113
107
108
109
106
105
104
Note: If wire (flat type) is replaced, install it after
bending it in the same form as that before
replacement.
Ver. 1.1
