Sony MHC-V11 Service Manual

MHC-V11
14

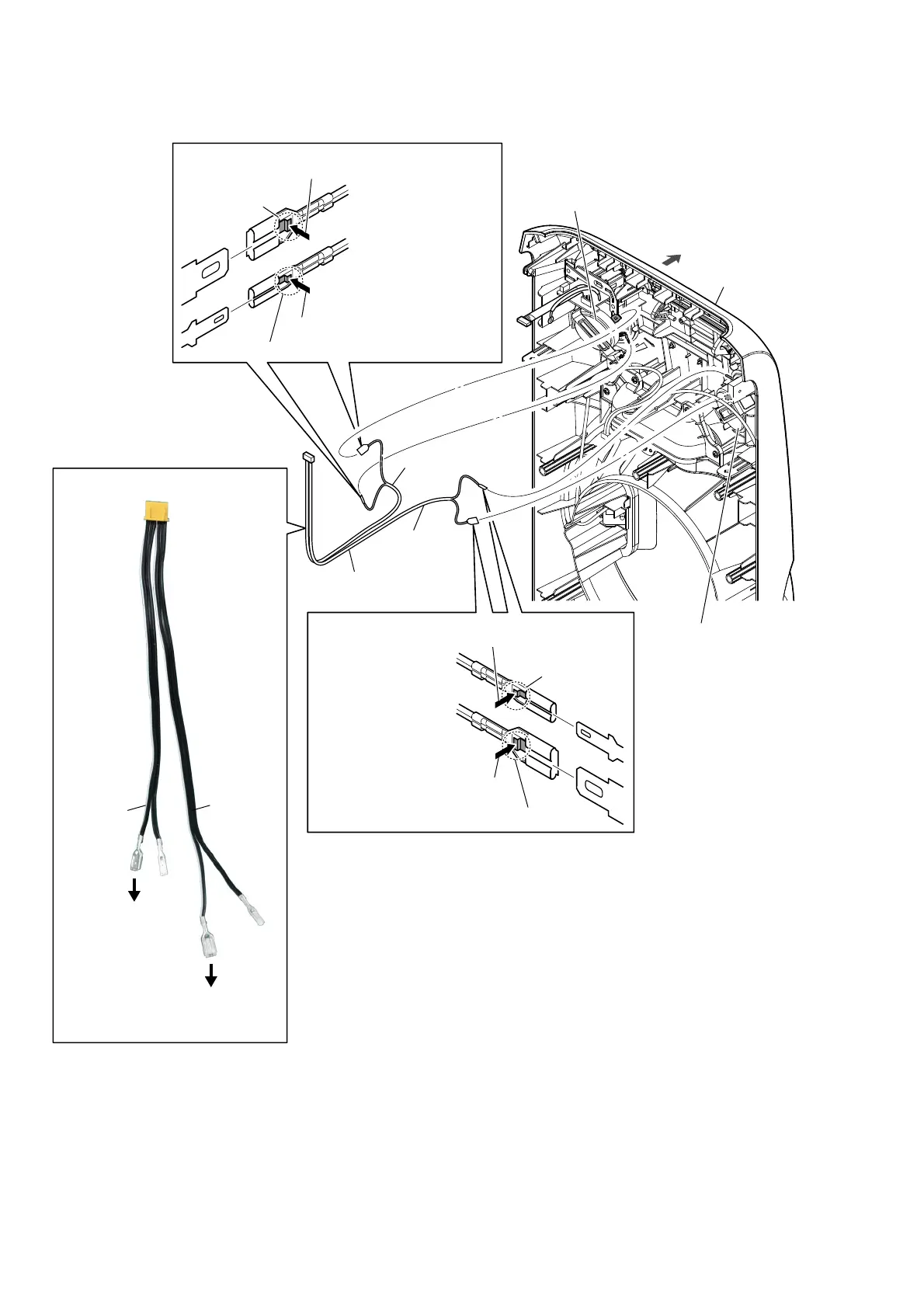

2-11. TWEETER UNIT WIRE
protrusion
protrusion
1 Push the protrusion, and remove
the terminal (narrow side).
1 Push the protrusion, and remove
the terminal (wide side).
protrusion
protrusion
short wire
long wire
1 Push the protrusion, and remove
the terminal (wide side).
1 Push the protrusion, and remove
the terminal (narrow side).
to
tweeter unit
(R-ch)
to
tweeter unit
(L-ch)
7ZHHWHUXQLWZLUHVHWWLQJ
front side
front panel block
tweeter unit (L-ch)
(SP2)
tweeter unit (R-ch)
(SP3)
2 tweeter unit wire
short wire
long wire
