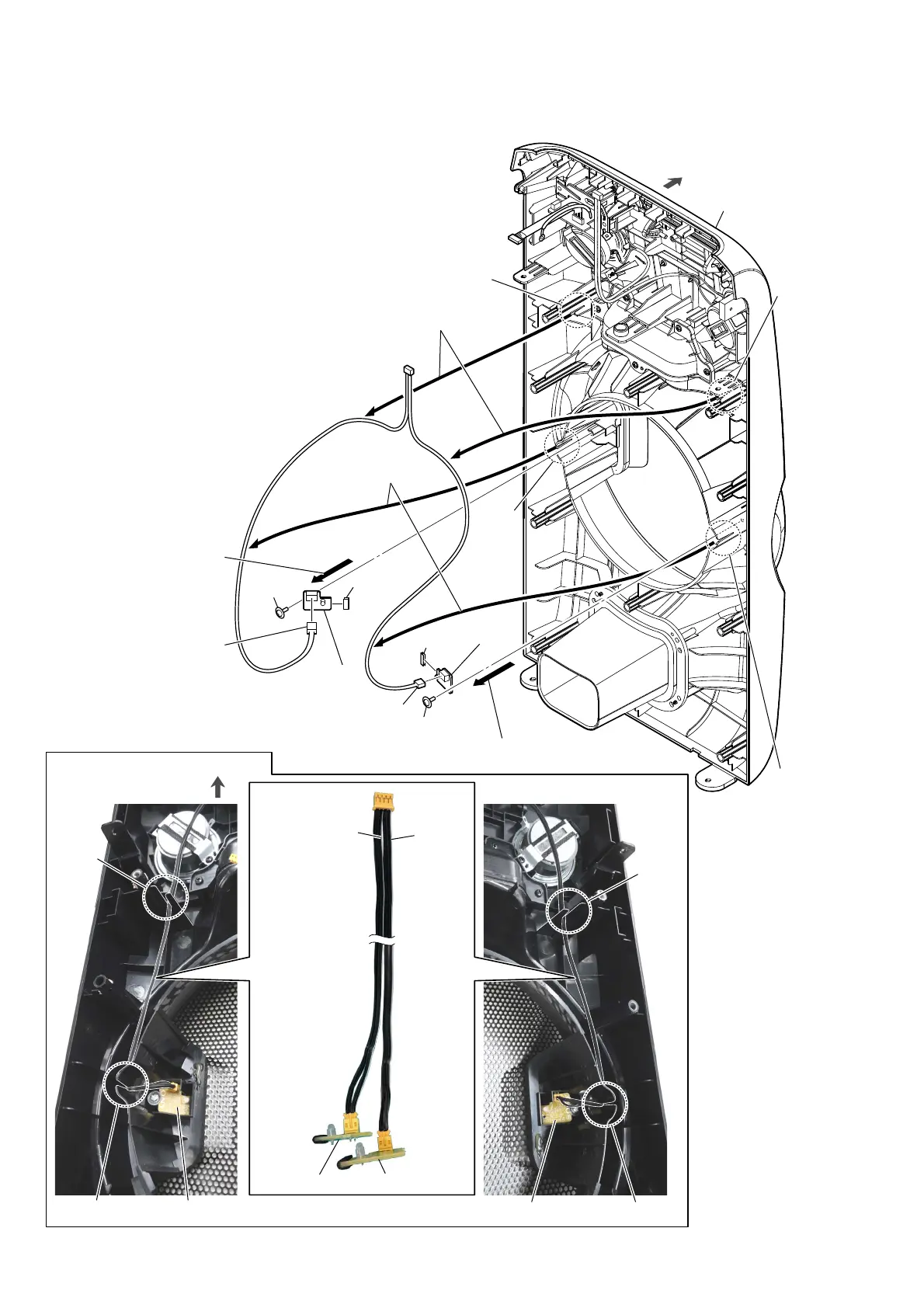

2-13. LED A BOARD, LED B BOARD
LED B board
LED A board
WireVeWWiQJ
white line
white line
front side
front panel block
groove
groove
groove
groove
1 Draw the cable out
of the groove.
1 Draw the cable out
of the groove.
2 screw
2 screw
3 Remove the LED B board
block in the direction of
the arrow.
3 Remove the LED A board block
in the direction of the arrow.
4 connector (2P)
(XP3)
4 connector (2P)
(XP4)
5 cushion
5 cushion
6 LED B
board
6 LED A
board
groove
LED A board
LED B board
groove
groove
groove
top side
