MHC-V11
19

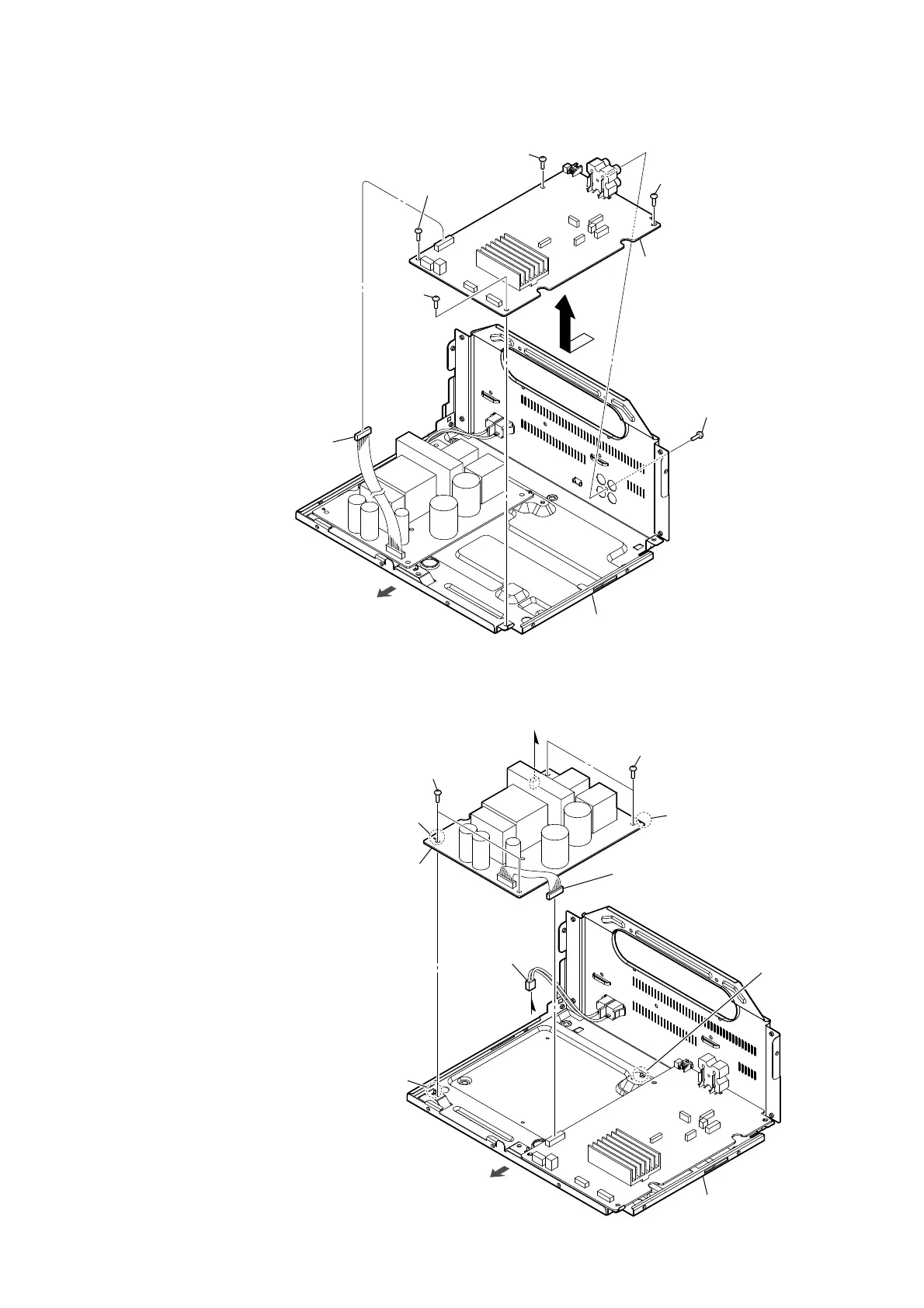

2-16. MAIN BOARD
2-17. PSU BOARD
front side
chassis block
2 screw
1 connector (9P)
(XP2)
4 MAIN board
3 screw
3 screw
3 screw
3 screw
A
A
front side
chassis block
1 connector (9P)
(XP2)
3 two screws
2 AC inlet
connector (2P)
(CN501)
3 two screws
rib
hole
4 PSU board
Note:
When installing the PSU board,
align the hole and groove with
the two ribs.
rib
groove
