MHC-V11
MHC-V11
2525

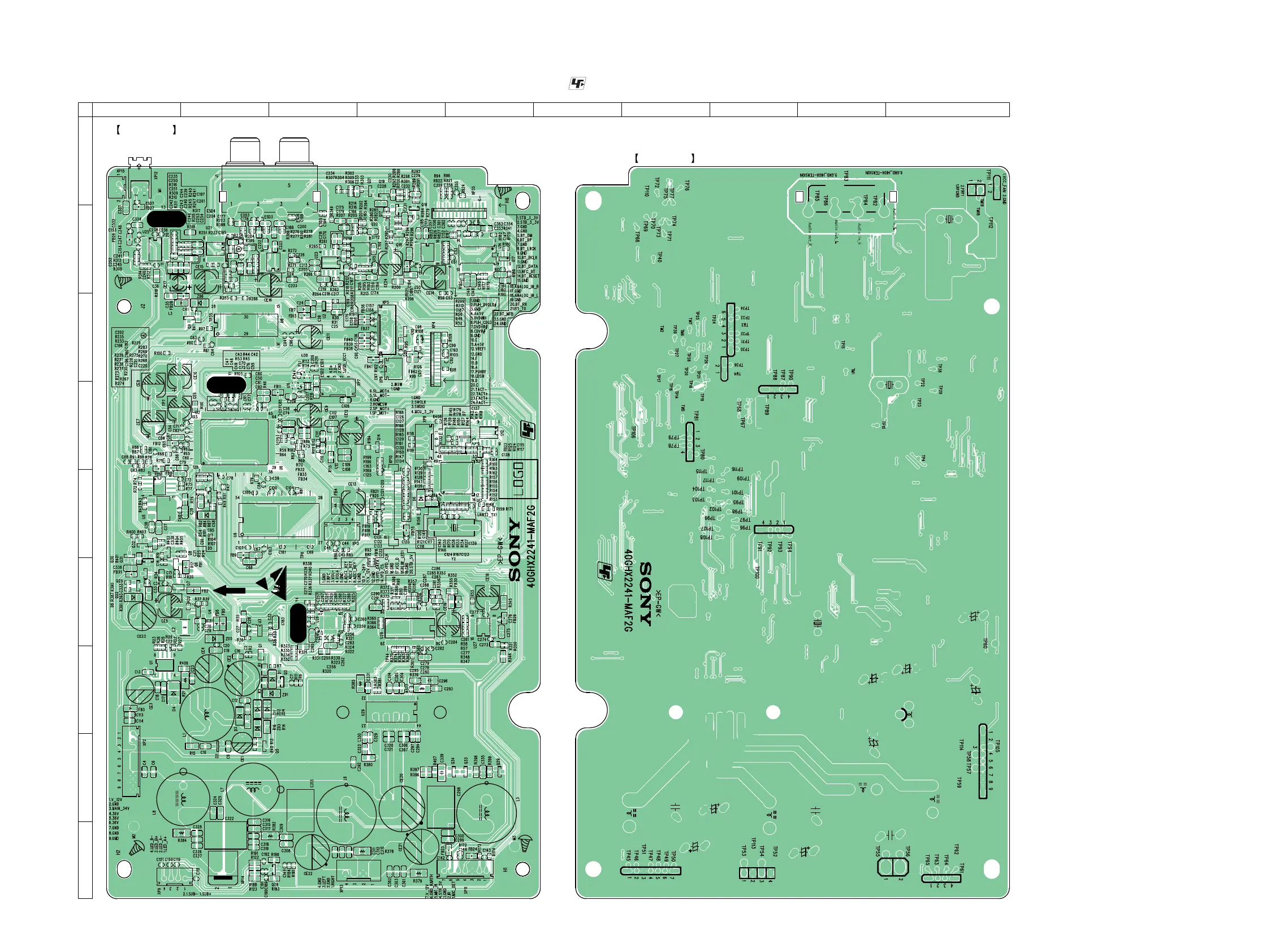

5-3. PRINTED WIRING BOARD - MAIN Board -
• : Uses unleaded solder.
• See page 24 for Circuit Boards Location.
MAIN BOARD (COMPONENT SIDE)
MAIN BOARD (CONDUCTOR SIDE)
A
B
C
D
E
1 2 3 4 5 6 7 8 9 10
F
G
H
I
