Sony MHC-V11 Service Manual

MHC-V11
18

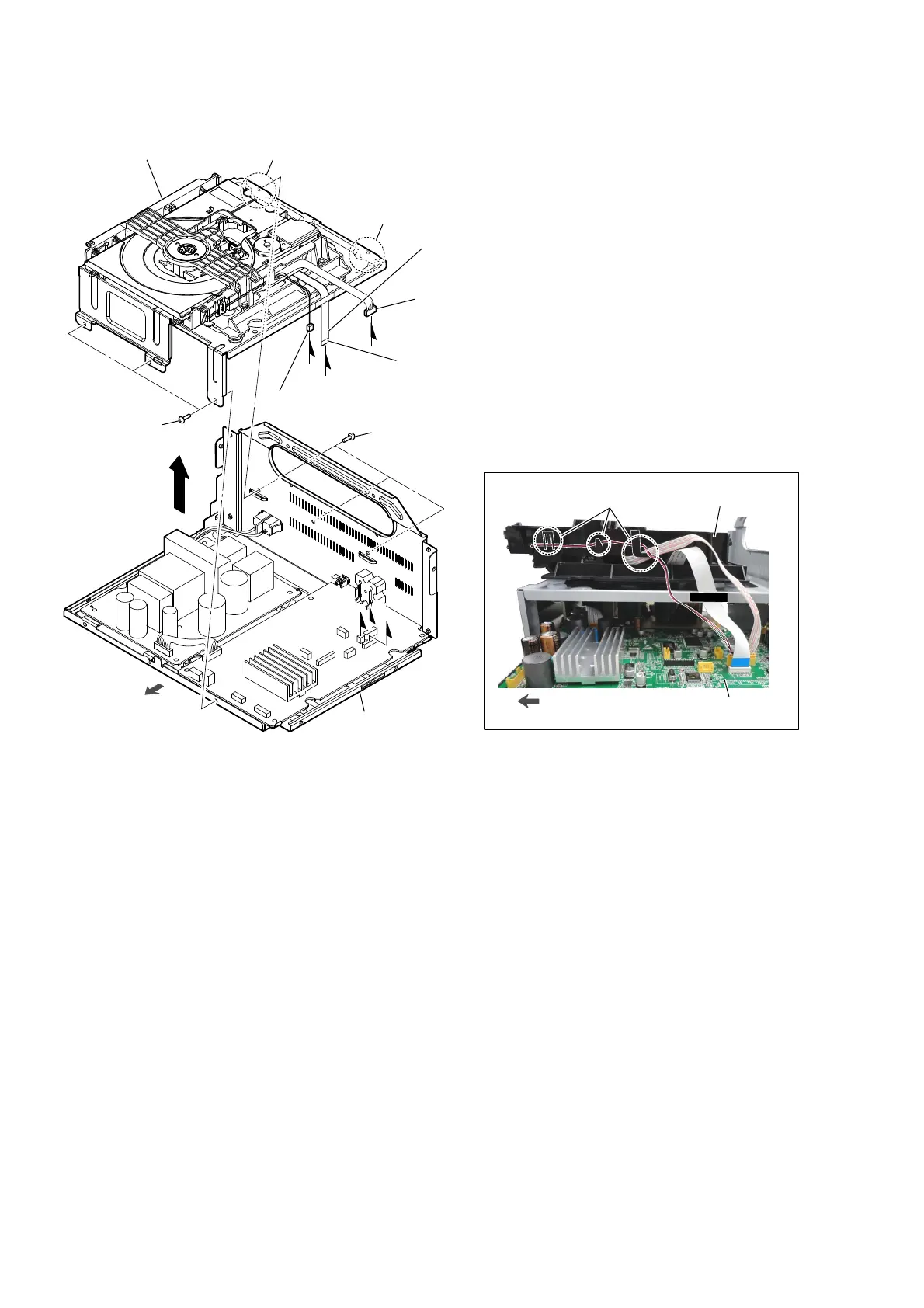

2-15. LOADER BLOCK
A
A
B
C
C
B
WireVeWWiQJ
three hooks
–5iJKWYieZ–
front side
loader (CDM1)
MAIN board
5 three screws
2 connector (6P)
(XP5)
1 FFC (24P)
(XP4)
3 connector (2P)
(XP6)
4 three screws
7 loader block
6 rib
6 rib
front side
chassis block
The opposite side is
the terminal side.
