Sony MHC-V4D Service Manual

MHC-V3/V4D
11

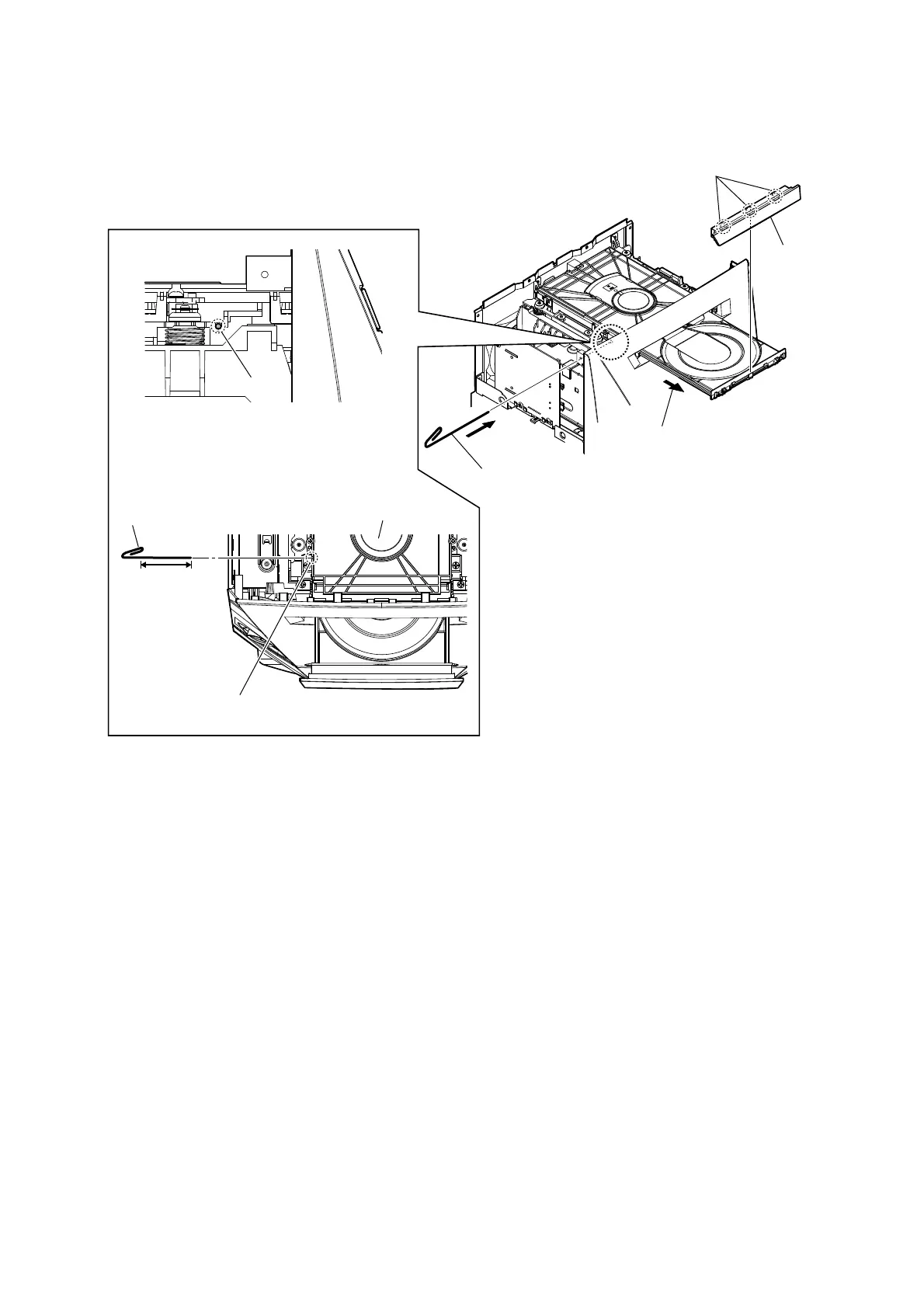

2-4. LOADING PANEL BLOCK
1 Insert the clip etc.
2 Draw out the tray.
3 three claws
4 panel, loading
block
– Left view –
– Top view –
hole
CD mechanism deck
8 cm or more
tray
Insert the clip etc. processed to the
length of 8 cm or more in the hole
on the side of the chassis and push.
Note: Push after it inserts it
in this hole well.
Ver. 1.1

Sony MHC-V4D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Bass reflex	-
Speaker type	3-way
RMS rated power	720 W
Woofer diameter	200 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
Equalizer modes	Custom, Pop, Flat, Rap, Rock
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Composite video out	1
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	English
Playback modes	Program, Shuffle, Repeat, Normal
Audio formats supported	WMA, MP3
Display type	LCD

Weight and Dimensions

Depth	295 mm
Width	280 mm
Height	780 mm
