Sony MHC-V4D Service Manual

MHC-V3/V4D
13
hole
hook
hook
hole

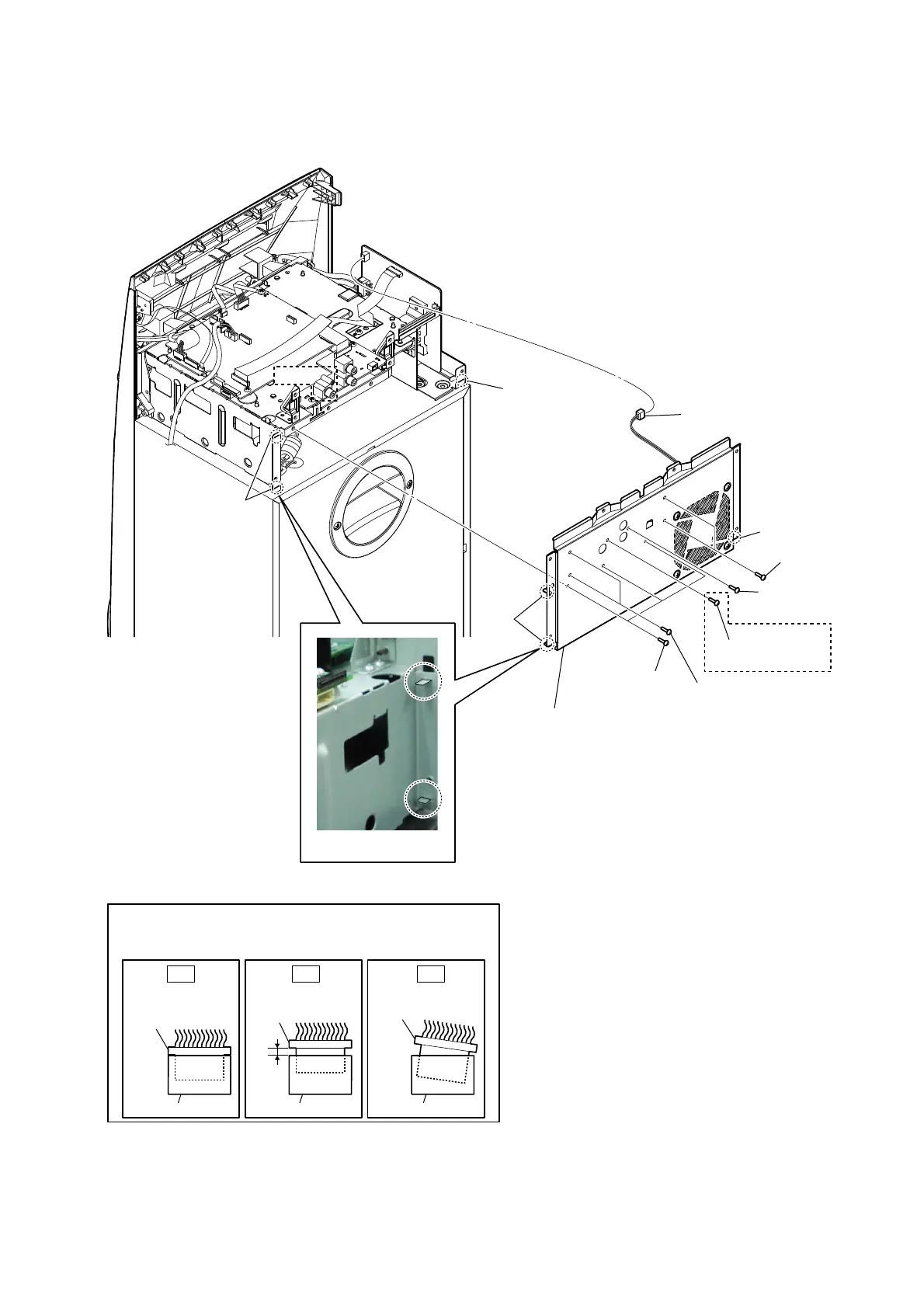

– Right view –
1 CN1004 (2P)
2 three screws
(+BVTP 3 u 8)
2 two screws
(+BVTP 3 u 8)
2 two screws
(+BVTP 3 u 8)
2 one screw
(+BVTP 3 u 8)
2 one screw
(+BVTP 3 u 8)
3 back panel block
Note 1:
When installing the back panel block,
align three hooks and three holes.
– Top rear view –
Note 2: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG
(V4D)
(V4D)
2-6. BACK PANEL BLOCK
Ver. 1.1
