Sony MHC-V4D Service Manual

85
MHC-V3/V4D

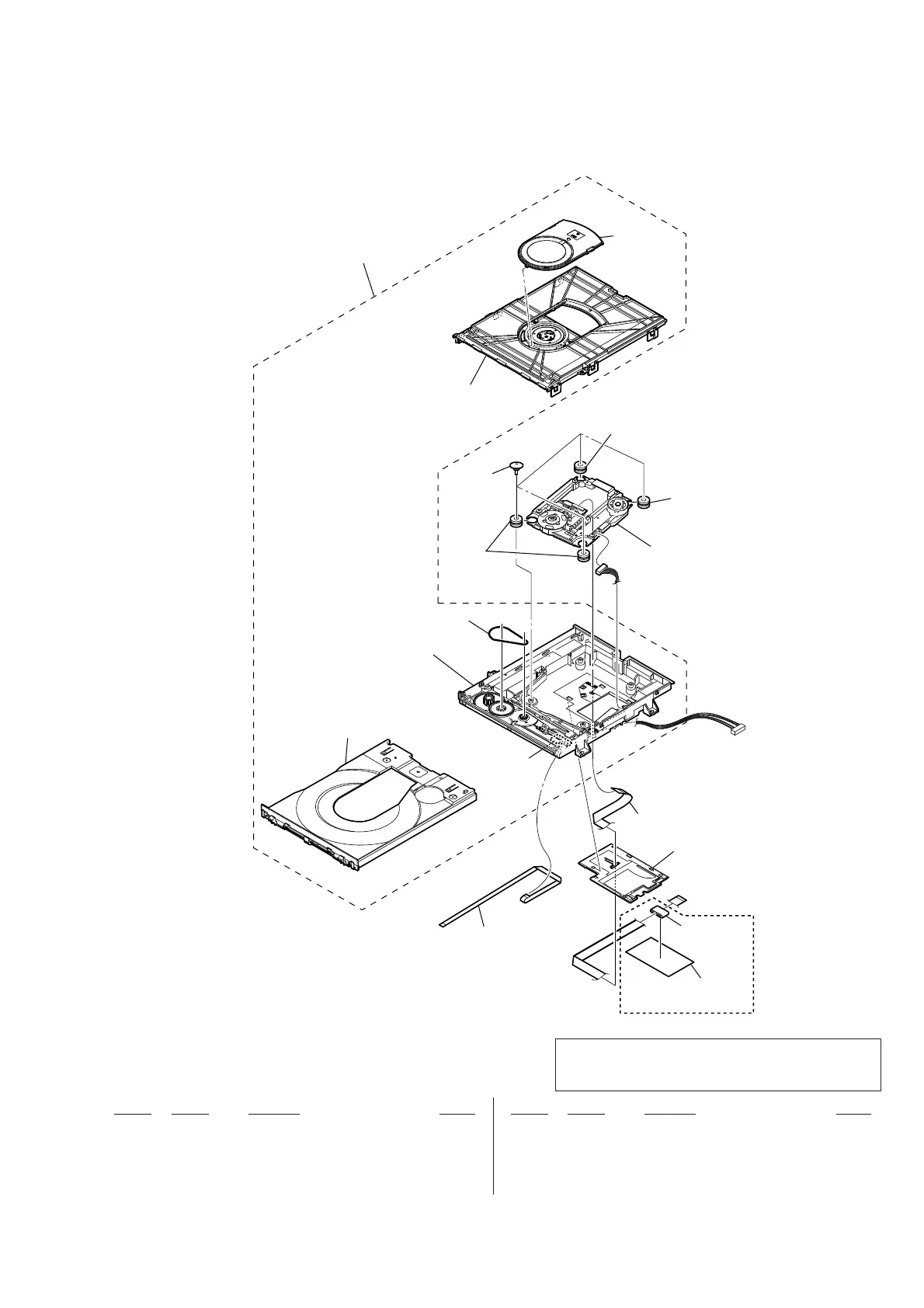

7-10. CD MECHANISM SECTION
(CDM90-DVBU204//M)
451 A-1896-391-B LOADING COMPLETE ASSY (T)
(including MS-476 board)
452 3-087-599-01 INSULATOR SCREW
453 2-634-618-21 INSULATOR
0
454 A-2046-956-A SERVICE, OPTICAL DEVICE(7G)
455 1-846-951-11 FLEXIBLE FLAT CABLE (24 CORE)
456 1-469-829-11 CORE, FERRITE (AUS, SAF, EA, MY)
457 1-828-291-21 WIRE (FLAT TYPE) (5 CORE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If fl exible fl at cable and wire (fl at type) is replaced,
install it after bending it in the same form as that
before replacement.
Ver. 1.4
not supplied
not
supplied
not supplied
not supplied
(MS-476 board)
(including MS-476 board)
not supplied
not supplied
not supplied
not supplied
451
452
453
453
453
454
455
457
456
(AUS, SAF, EA, MY)
