Sony MHC-V4D Service Manual

82
MHC-V3/V4D
301 4-238-407-12 SCREW (1) (4 X20), +BV TAPPING
302 4-874-614-12 SCREW (1) (3.5X14), TAPPING
303 4-540-837-01 CUSHION, AC INLET
304 4-534-712-21 PLATE (AC CORD)
0
305 1-844-099-11 AC INLET
306 4-487-670-03 HANDLE, REAR
307 4-541-367-01 CUSHION, FOOT
*
308 1-500-082-11 CLAMP, SLEEVE FERRITE (AUS, SAF, EA, MY)
SP1 1-859-054-12 LOUDSPEAKER (8CM) (Mid) (L-CH)
SP3 1-859-054-12 LOUDSPEAKER (8CM) (Mid) (R-CH)
SP5 1-859-055-11 LOUDSPEAKER (20CM) (Woofer)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

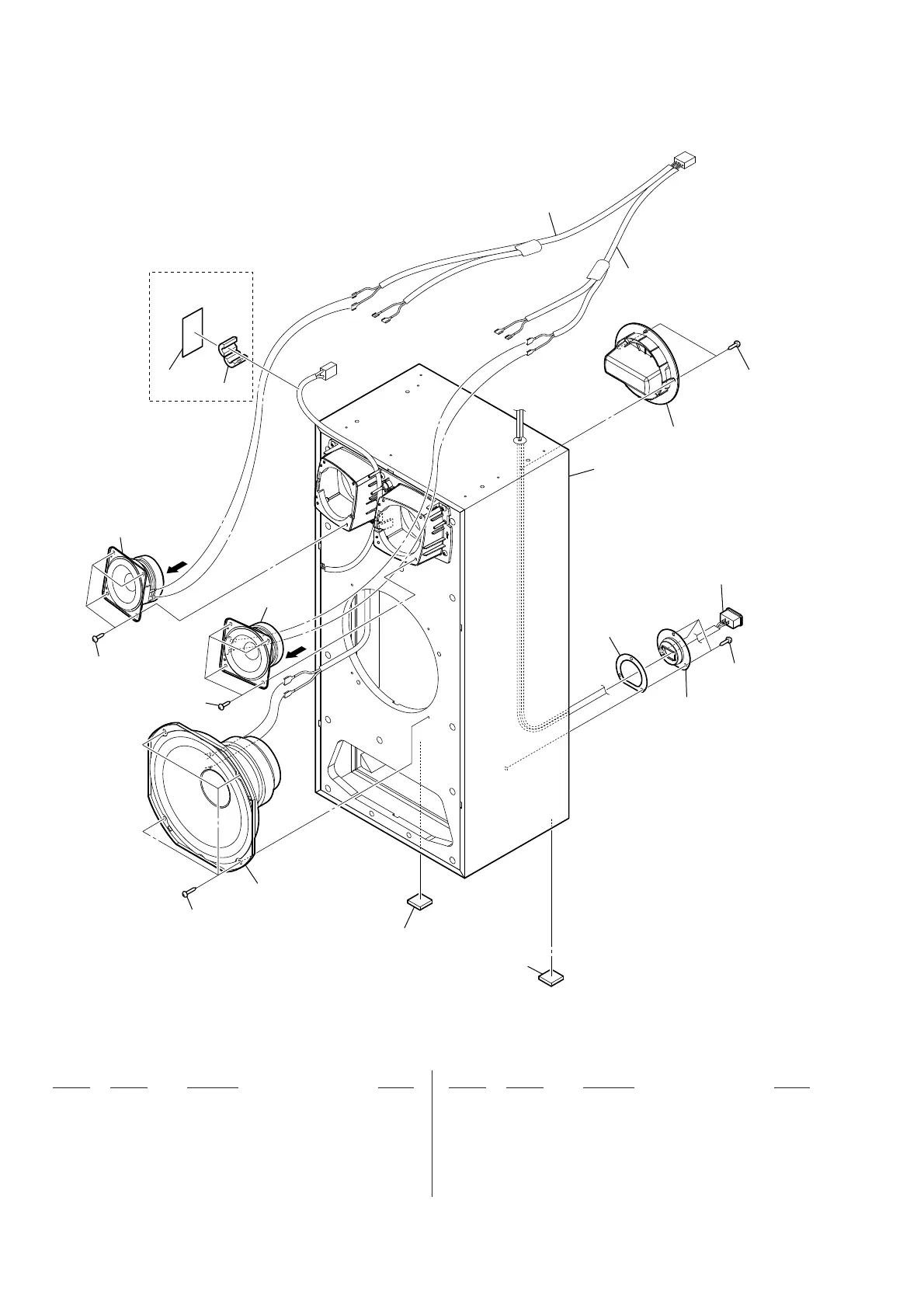

7-7. SPEAKER CABINET SECTION
Ver. 1.5
302
304
303
305
307
307
306
302
not supplied
not supplied
not supplied
not
supplied
302
302
SP1
SP3
301
308
SP5
(AUS, SAF,
EA, MY)

Sony MHC-V4D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Bass reflex	-
Speaker type	3-way
RMS rated power	720 W
Woofer diameter	200 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
Equalizer modes	Custom, Pop, Flat, Rap, Rock
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Composite video out	1
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	English
Playback modes	Program, Shuffle, Repeat, Normal
Audio formats supported	WMA, MP3
Display type	LCD

Weight and Dimensions

Depth	295 mm
Width	280 mm
Height	780 mm
