Sony MHC-V4D Service Manual

81
MHC-V3/V4D
251 1-828-690-61 WIRE (FLAT TYPE) (8 CORE)
252 8-989-470-05 RC-S801/A5 (WW)
*
253 1-500-082-11 CLAMP, SLEEVE FERRITE (AUS, SAF, EA, MY)
254 4-874-614-02 SCREW (1) (3.5X14), TAPPING
255 4-541-367-01 CUSHION, FOOT
256 X-2589-366-2 PANEL, FRONT ASSY (V3)
256 X-2589-910-2 PANEL, FRONT ASSY (DVD) (V4D)
SP2 1-859-053-11 LOUDSPEAKER (4CM) (Tweeter) (L-CH)
SP4 1-859-053-11 LOUDSPEAKER (4CM) (Tweeter) (R-CH)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.

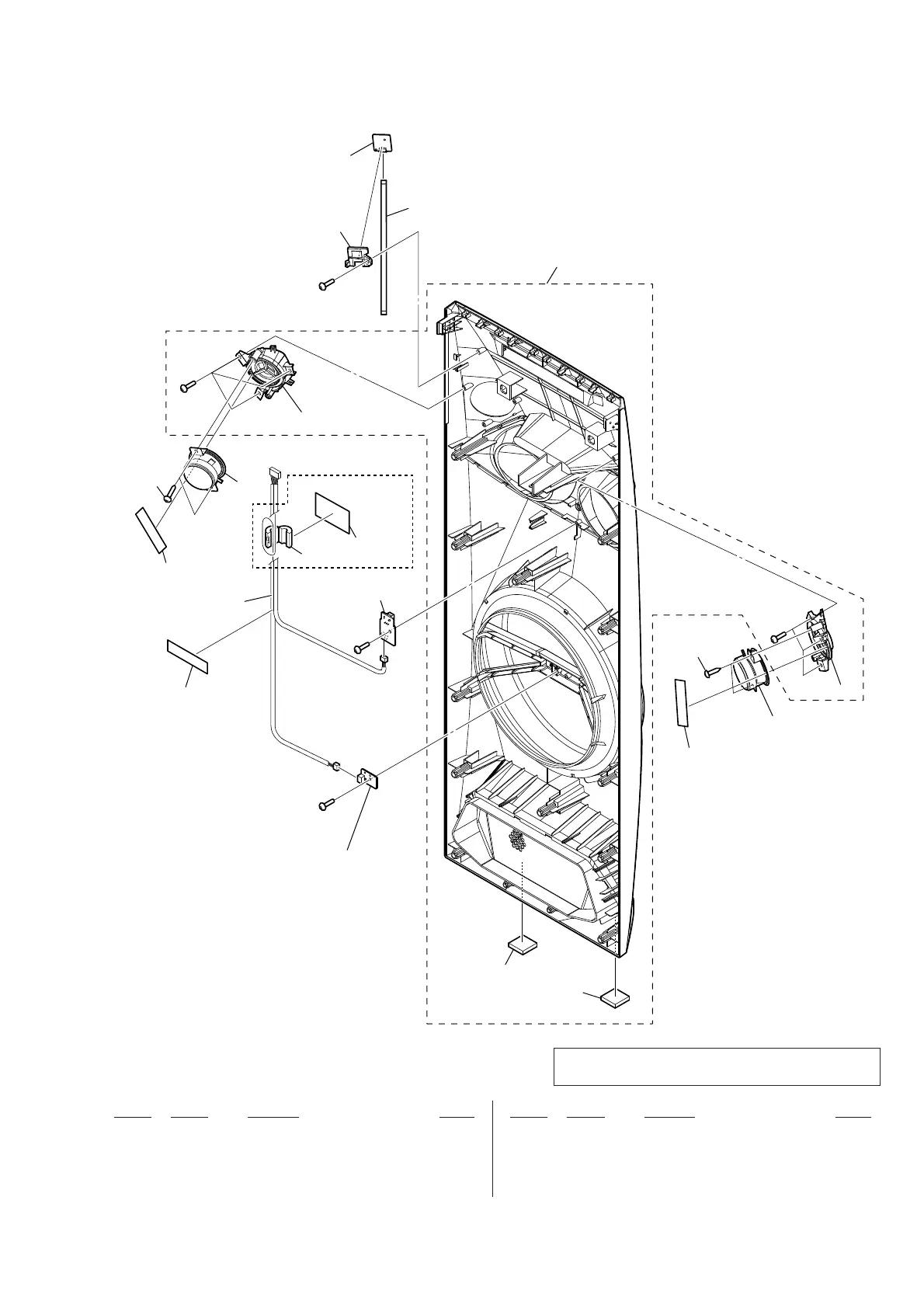

7-6. FRONT PANEL SECTION
Ver. 1.5
251
252
254
253
256
254
255
255
#2
#2
#2
#2
#2
not supplied
not supplied
(SPEAKER LED board)
not supplied (IR board)
not supplied
not supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
SP4
SP2
(AUS, SAF, EA, MY)

Sony MHC-V4D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Bass reflex	-
Speaker type	3-way
RMS rated power	720 W
Woofer diameter	200 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
Equalizer modes	Custom, Pop, Flat, Rap, Rock
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Composite video out	1
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	English
Playback modes	Program, Shuffle, Repeat, Normal
Audio formats supported	WMA, MP3
Display type	LCD

Weight and Dimensions

Depth	295 mm
Width	280 mm
Height	780 mm
