Sony MHC-V4D Service Manual

76
MHC-V3/V4D
SECTION 7
EXPLODED VIEWS
Note:
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Items marked “*” are not stocked since
they are seldom required for routine
service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories are given in the last of this
parts list.
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.

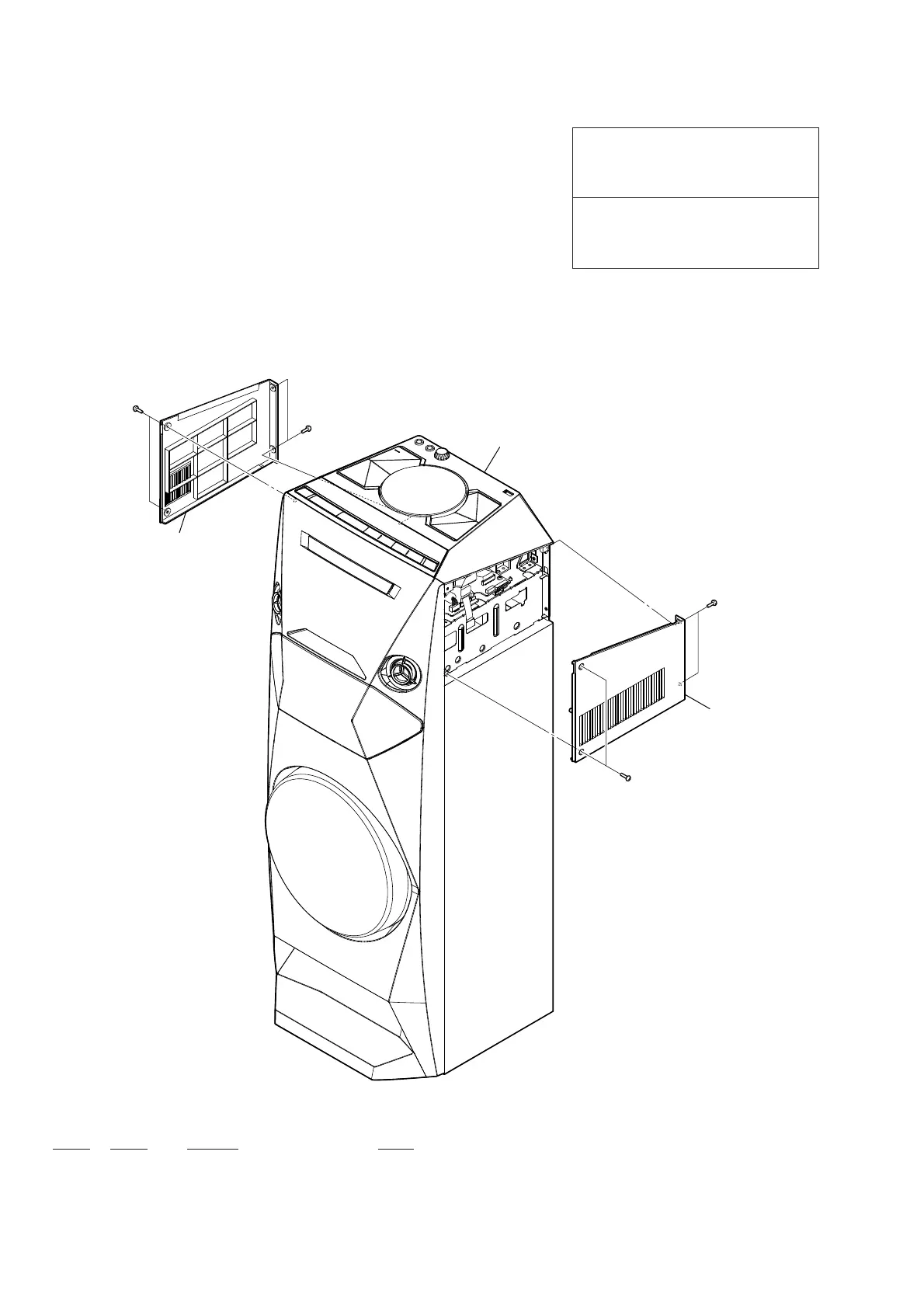

7-1. SIDE PANEL SECTION
1 X-2590-111-1 PANEL, SIDE L ASSY
2 X-2590-112-1 PANEL, SIDE R ASSY
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark
• Abbreviation
AR : Argentina model
AUS : Australian model
E2 : 120 V AC area in E model
E4 : African model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
MY : Malaysia model
SAF : South African model
TH : Thai model
#1
#1
#1
#1
1
2
loading panel section
Ver. 1.5

Sony MHC-V4D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Bass reflex	-
Speaker type	3-way
RMS rated power	720 W
Woofer diameter	200 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
Equalizer modes	Custom, Pop, Flat, Rap, Rock
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Composite video out	1
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	English
Playback modes	Program, Shuffle, Repeat, Normal
Audio formats supported	WMA, MP3
Display type	LCD

Weight and Dimensions

Depth	295 mm
Width	280 mm
Height	780 mm
