Sony MHC-V4D Service Manual

83
MHC-V3/V4D
351 3-087-053-01 +BVTP2.6 (3CR)
352 X-2589-706-1 KNOB, VOLUME ASSY
353 4-237-065-01 CLAMP (L35)
354 4-543-826-01 HEMILON, 45X25X0.45 (AUS, SAF, EA, MY)
355 1-400-640-11 CORE, FERRITE (AUS, SAF, EA, MY)
356 1-828-330-21 WIRE (FLAT TYPE) (13 CORE)
357 4-543-517-02 HEMILON, 5X5X0.4
358 A-2037-666-A USB BOARD, COMPLETE
359 4-540-864-01 KNOB, MIC (V4D)
360 X-2589-367-2 PANEL, TOP ASSY (V3)
360 X-2589-909-1 PANEL, TOP ASSY (DVD) (V4D)
ND5001 1-812-032-11 DISPLAY PANEL, LIQUID CRYSTAL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.

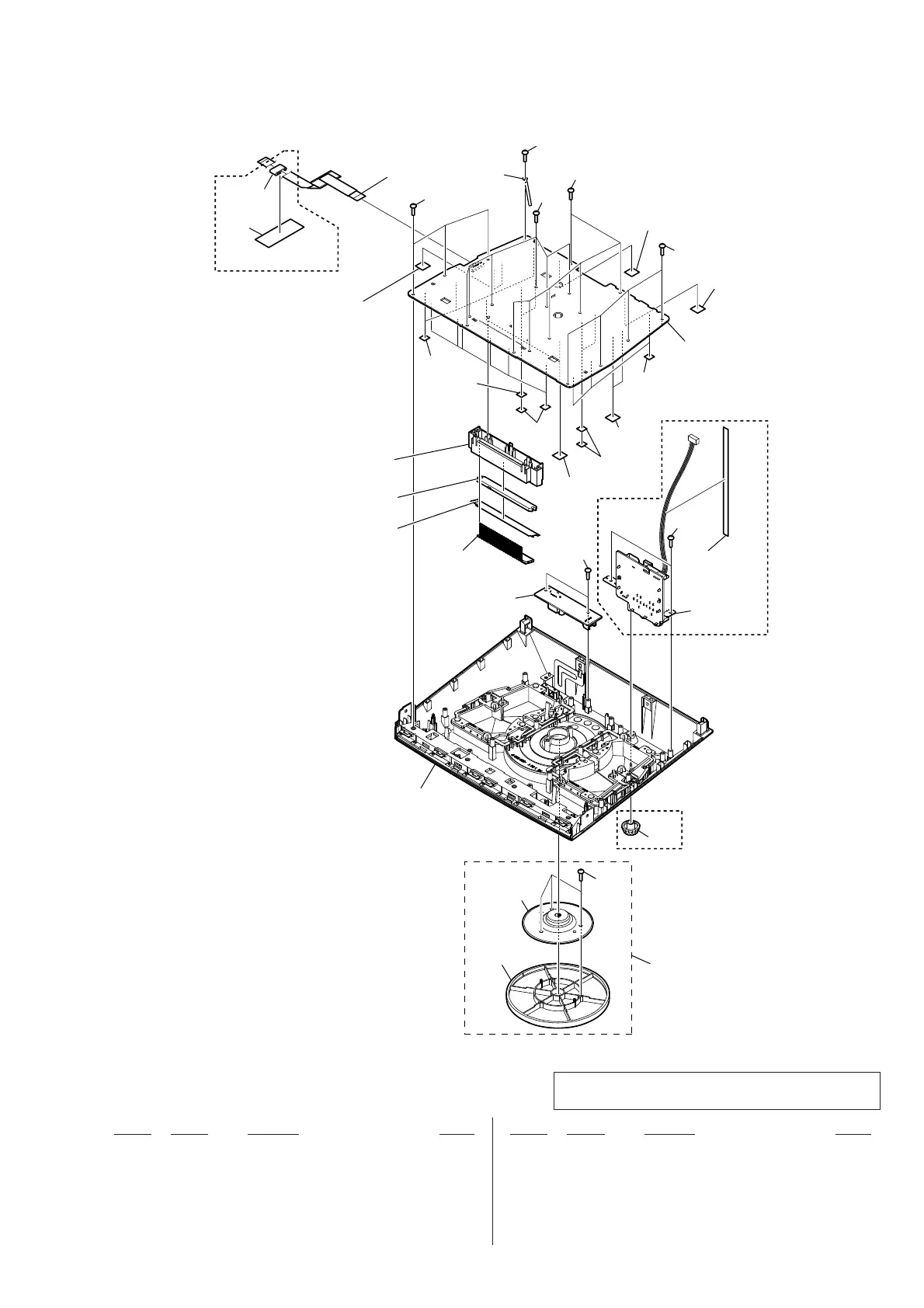

7-8. TOP PANEL SECTION
Ver. 1.3
351
353
351
351
351
356
351
351
358
359
357
357
357
357
357
351
352
351
355
354
360
not supplied
not supplied
not supplied
not
supplied
not
supplied
not supplied
(MIC board)
not supplied
not supplied
not supplied
(PANEL board)
not supplied
not supplied
not supplied
not supplied
ND5001
(V4D)
(V4D)
(AUS, SAF, EA, MY)

Sony MHC-V4D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Bass reflex	-
Speaker type	3-way
RMS rated power	720 W
Woofer diameter	200 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
Equalizer modes	Custom, Pop, Flat, Rap, Rock
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Composite video out	1
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	English
Playback modes	Program, Shuffle, Repeat, Normal
Audio formats supported	WMA, MP3
Display type	LCD

Weight and Dimensions

Depth	295 mm
Width	280 mm
Height	780 mm
