Sony MHC-V4D Service Manual

MHC-V3/V4D
15
2-8. ARAGON BOARD
• Abbreviation
AUS : Australian model
EA : Saudi Arabia model
MY : Malaysia model
SAF : South African model
Ver. 1.3

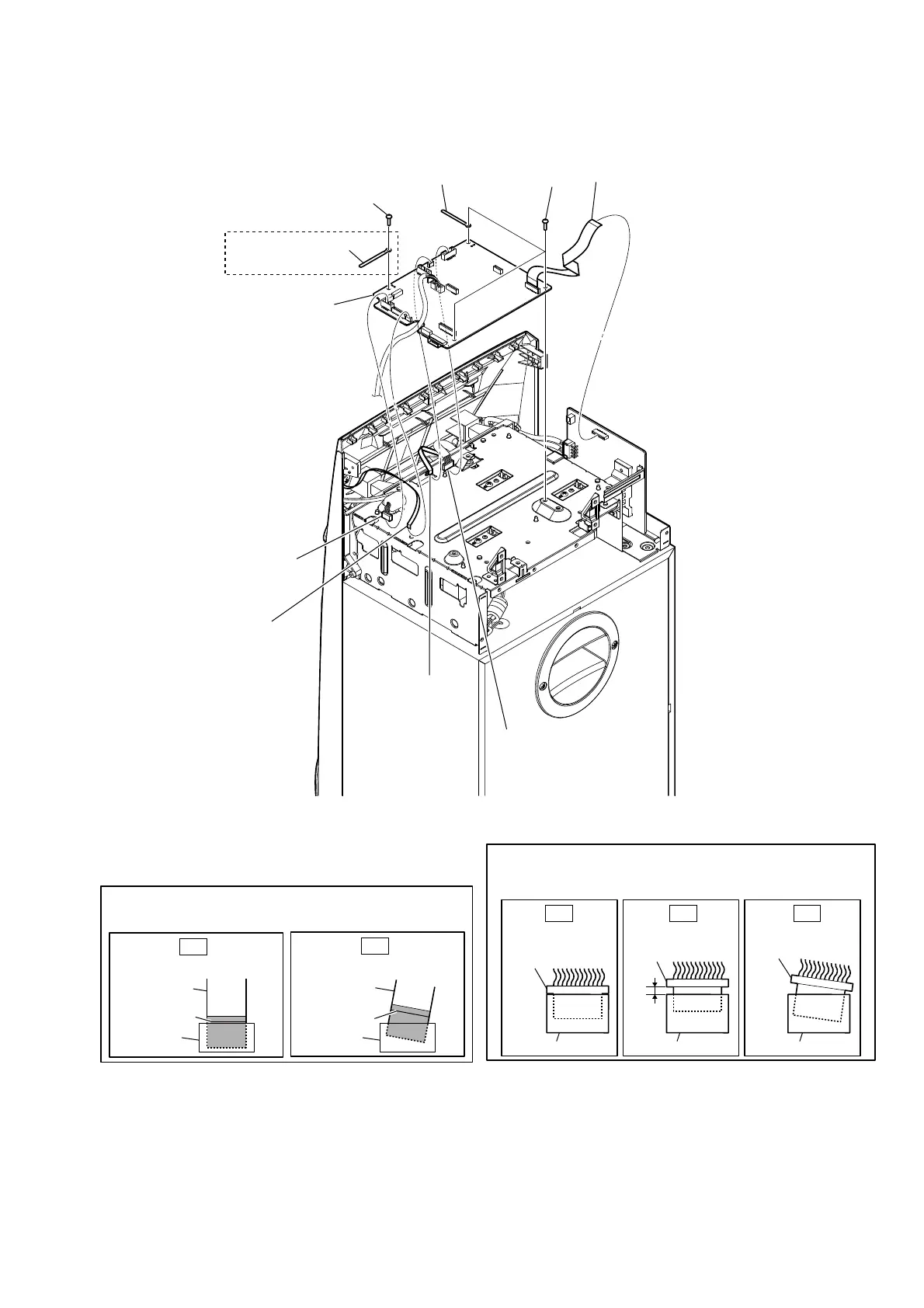

– Top rear view –
2 three screws
(+BVTP 3 u 8)
3 clamp (L35)
3 clamp (L35)
2 one screw
(+BVTP 3 u 8)
8 ARAGON board
1 wire (flat type)
(17 core) (CN1001)
5 wire (flat type)
(10 core) (CN102)
6 wire (flat type)
(8 core) (CN105)
4 CN001 (6P)
7 CN115 (5P)
(AUS, SAF, EA, MY)
Note 2: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
Note 1: When installing the wire (flat type), ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
wire (flat type)
wire (flat type)
connectorconnector
OK
NG
OK NG NG

Sony MHC-V4D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Bass reflex	-
Speaker type	3-way
RMS rated power	720 W
Woofer diameter	200 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
Equalizer modes	Custom, Pop, Flat, Rap, Rock
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Composite video out	1
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	English
Playback modes	Program, Shuffle, Repeat, Normal
Audio formats supported	WMA, MP3
Display type	LCD

Weight and Dimensions

Depth	295 mm
Width	280 mm
Height	780 mm
