Sony MHC-V50 Service Manual

MHC-V50/V50D
20

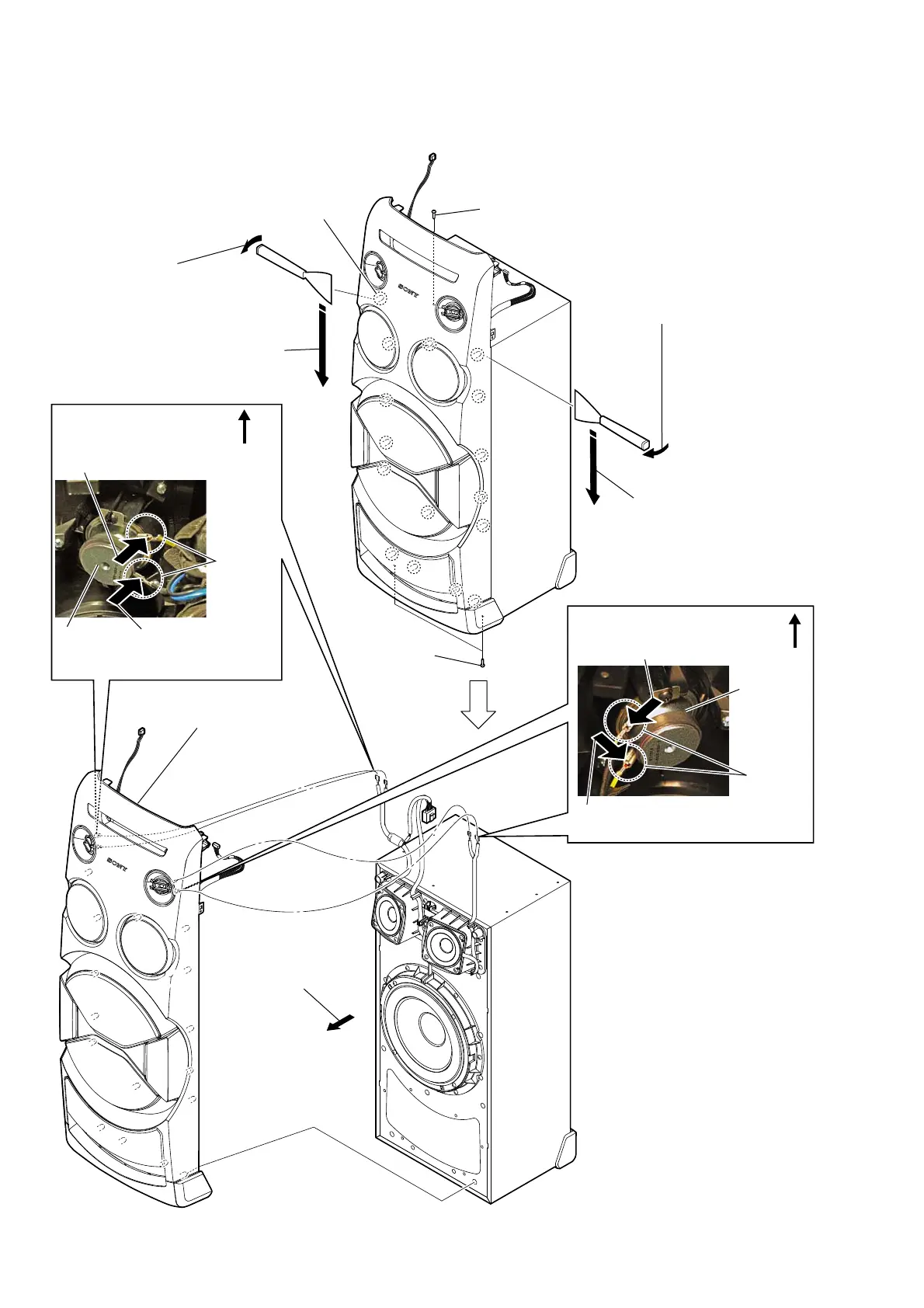

2-12. FRONT PANEL SECTION
:LUHVHWWLQJ
top side
5 Push the protrusion,
and remove the
terminal (narrow side).
5 Push the protrusion, and
remove the terminal
(wide side).
loudspeaker
(4cm)
protrusion
:LUHVHWWLQJ
5 Push the protrusion, and remove
the terminal (wide side).
5 Push the protrusion, and remove
the terminal (narrow side).
top side
protrusion
loudspeaker
(4cm)
total sixteen bosses
3 Insert the jig into a space and slowly
remove the front panel section.
Note 1: When using a jig, please work
so as not to injure front panel
section and speaker cabinet.
7 front panel section
Note 2: When installing the
front panel section,
remove the used glue and
use a new glue to fix
the front panel.
1 one screw ((3.5 x 16), TAPPING)
2 two screws
((3.5 x 16),
TAPPING)
3 Insert the jig into a space and slowly
remove the front panel section.
Note 1: When using a jig, please work
so as not to injure front panel
section and speaker cabinet.
4 All bosses are removed
while moving jig in the
direction of the arrow,
and front panel section
is removed.
4 All bosses are removed while moving
jig in the direction of the arrow, and
front panel section is removed.
6 Remove the front panel
section in the direction
of an arrow.

Sony MHC-V50 Specifications

General

Type	Home audio tower system
Cassette deck	No
Product color	Black
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Analog signal format system	NTSC, PAL
Speaker type	3-way
RMS rated power	660 W
Woofer diameter	200 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Recording on	USB
Playback modes	Normal, Repeat, Shuffle
Playback disc formats	CD audio, DVD-Audio, VCD
Audio formats supported	AAC, MP3, WAV, WMA
Video formats supported	MPEG1, MPEG4, XVID
Volume control	Digital
Power source	AC
Power consumption (standby)	0.5 W
Power consumption (typical)	120 W

Weight and Dimensions

Depth	300 mm
Width	293 mm
Height	798 mm
Weight	14000 g
