Sony MHC-V50 Service Manual

59
MHC-V50/V50D

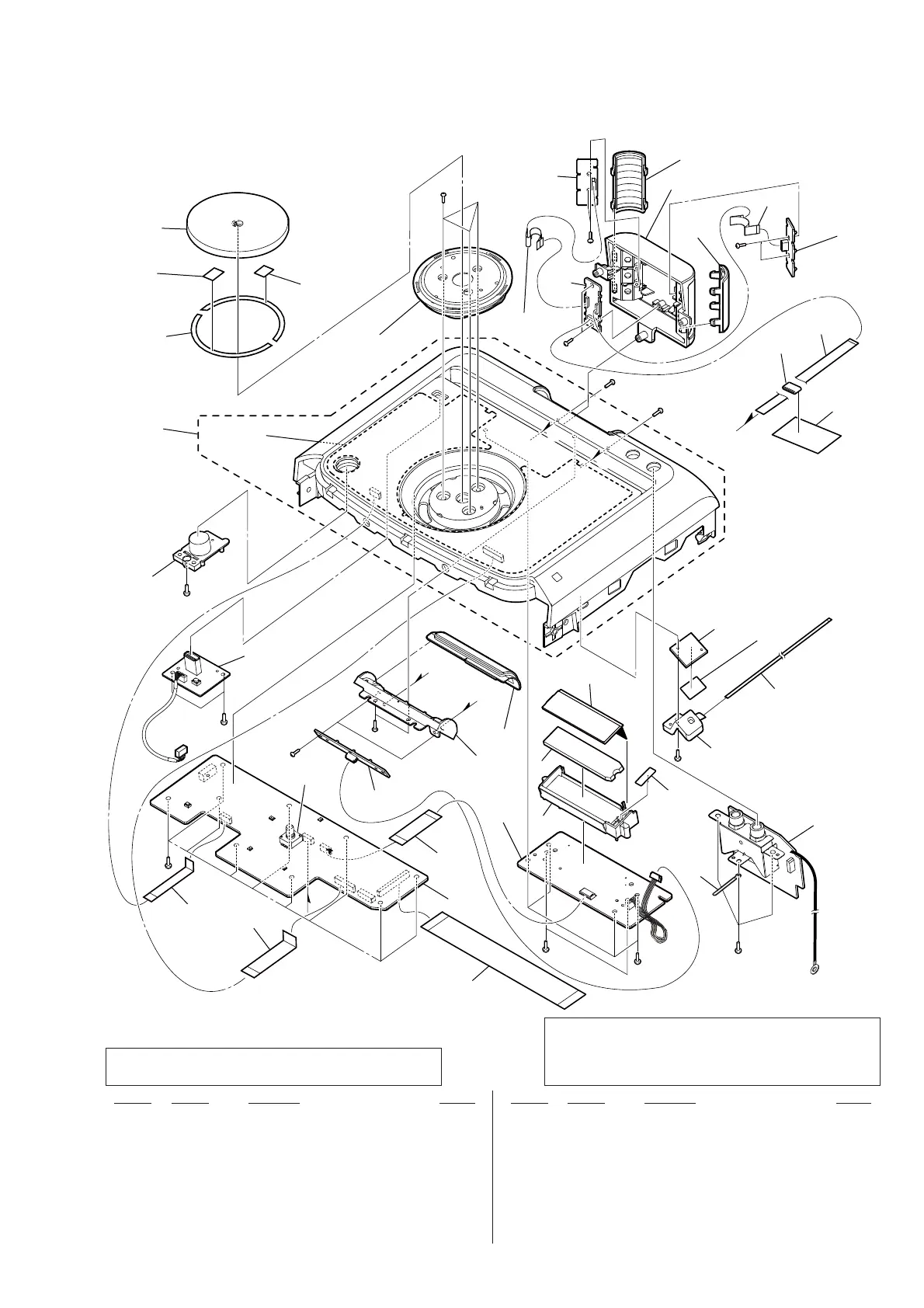

7-4. TOP PANEL, PARTY LIGHT BOARD SECTION-1
Note 1: If fl exible fl at cable is replaced, install it after bend-
ing it in the same form as that before replacement.
Note 2: When the RC-S730 (WW) board is replaced, re-
fer to “NOTE OF REPLACING MOTHERBOARD
BOARD OR BLUETOOTH MODULE OR RC-
S730 (WW) BOARD” on page 6.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 4-581-291-01 KNOB, VOLUME
152 4-694-974-01 SHEET, SOUND
153 1-912-093-11 FLEXIBLE FLAT CABLE (6 CORE)
154 8-989-602-00 RC-S730 (WW)
155 1-912-100-11 FLEXIBLE FLAT CABLE (9 CORE)
156 1-912-097-11 FLEXIBLE FLAT CABLE (19 CORE)
157 1-912-107-11 FLEXIBLE FLAT CABLE (29 CORE)
158 1-912-096-11 FLEXIBLE FLAT CABLE (11 CORE)
159 1-912-095-11 FLEXIBLE FLAT CABLE (9 CORE)
160 A-2144-056-A VOLUME BOARD, COMPLETE
161 1-469-829-11 CORE, FERRITE
162 4-459-192-02 CUSHION (FFC)
163 A-2144-050-A LCD BOARD, COMPLETE
164 A-2144-057-A TOP PARTY LIGHT BOARD, COMPLETE
165 4-686-651-01 LENS, TOP
– Continued on next page –
G
171
167
169
170
172
#4
#4
#4
170
#4
H
I
I
H
#4
#4
#4
MIC board
(ns)
ns
SENSOR
board (ns)
USB board
(ns)
G
164
165
ND3200
EN1251
ns
ns
ns
ns
ns
151
166
160
161
168
168
159
154
152
162
ns
ns
ns
ns
ns
#2
#2
#2
#2
#2
#2
#2
158
155
156
163
157
153
#2

Sony MHC-V50 Specifications

General

Type	Home audio tower system
Cassette deck	No
Product color	Black
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Analog signal format system	NTSC, PAL
Speaker type	3-way
RMS rated power	660 W
Woofer diameter	200 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Recording on	USB
Playback modes	Normal, Repeat, Shuffle
Playback disc formats	CD audio, DVD-Audio, VCD
Audio formats supported	AAC, MP3, WAV, WMA
Video formats supported	MPEG1, MPEG4, XVID
Volume control	Digital
Power source	AC
Power consumption (standby)	0.5 W
Power consumption (typical)	120 W

Weight and Dimensions

Depth	300 mm
Width	293 mm
Height	798 mm
Weight	14000 g
