Sony MHC-V50 Service Manual

60
MHC-V50/V50D

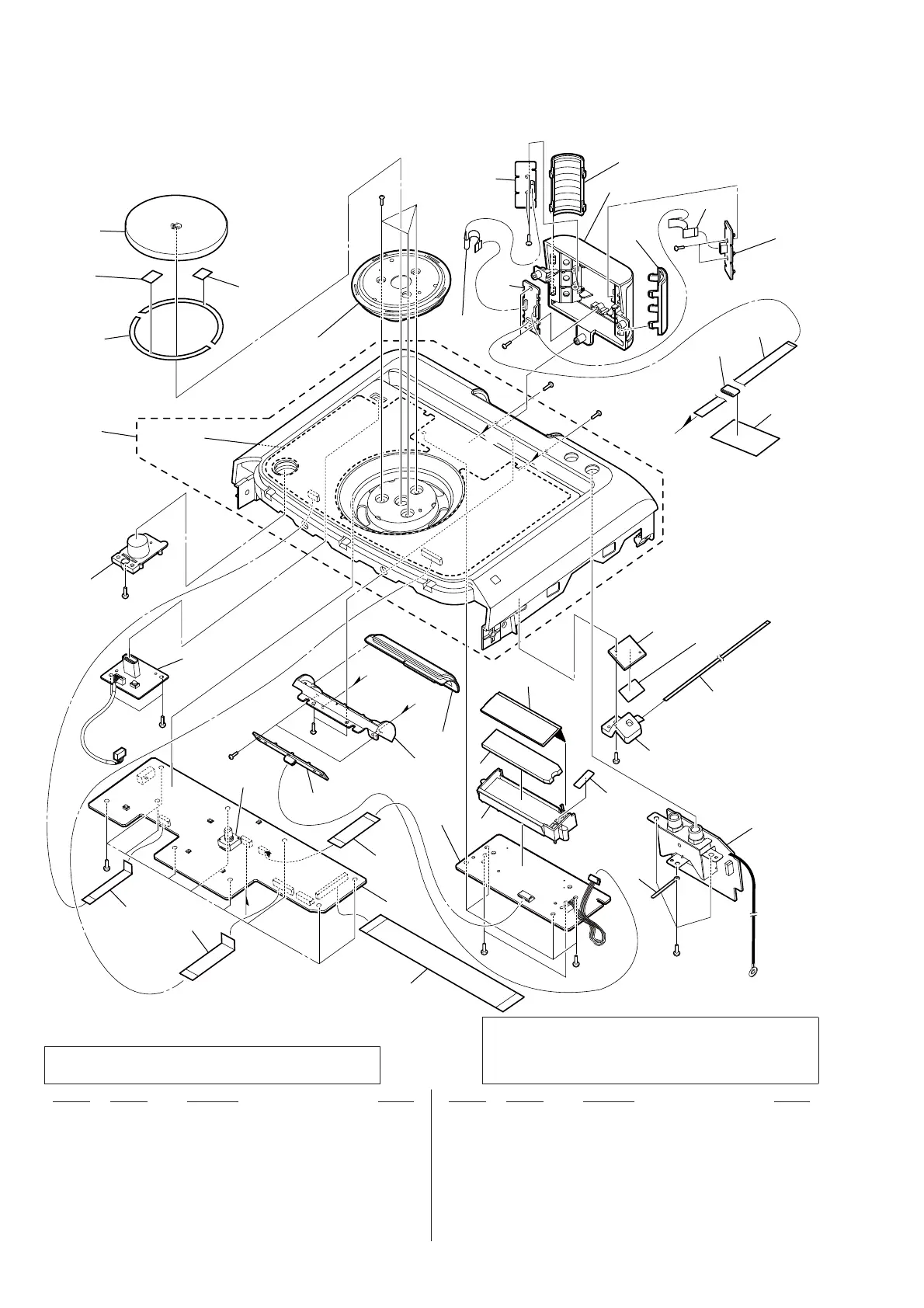

7-4. TOP PANEL, PARTY LIGHT BOARD SECTION-2
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
166 A-2181-150-A SERVICE, TOP PANEL ASSY
(Including SENSOR board) (V50)
166 A-2181-151-A SERVICE, TOP PANEL ASSY
(Including SENSOR board) (V50D)
167 4-686-654-01 MODULE, COVER
168 4-686-655-02 LENS, REAR
169 A-2144-062-A PARTY LIGHT DRIVER BOARD, COMPLETE
170 1-912-094-11 FLEXIBLE FLAT CABLE (5 CORE)
171 A-2144-058-A BACK PARTY LIGHT L BOARD, COMPLETE
172 A-2144-059-A BACK PARTY LIGHT R BOARD, COMPLETE
EN1251 1-493-008-11 ENCODER, ROTARY (VOLUME/DJ CONTROL)
ND3200 1-493-124-11 LIQUID CRYSTAL DISPLAY
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-645-71 SCREW +BVTP 3X6 TYPE2 IT-3
ns not supplied
Note 1: If fl exible fl at cable is replaced, install it after bend-
ing it in the same form as that before replacement.
Note 2: When the RC-S730 (WW) board is replaced, re-
fer to “NOTE OF REPLACING MOTHERBOARD
BOARD OR BLUETOOTH MODULE OR RC-
S730 (WW) BOARD” on page 6.
G
171
167
169
170
172
#4
#4
#4
170
#4
H
I
I
H
#4
#4
#4
MIC board
(ns)
ns
SENSOR
board (ns)
USB board
(ns)
G
164
165
ND3200
EN1251
ns
ns
ns
ns
ns
151
166
160
161
168
168
159
154
152
162
ns
ns
ns
ns
ns
#2
#2
#2
#2
#2
#2
#2
158
155
156
163
157
153
#2
