Sony MHC-V50 Service Manual

63
MHC-V50/V50D

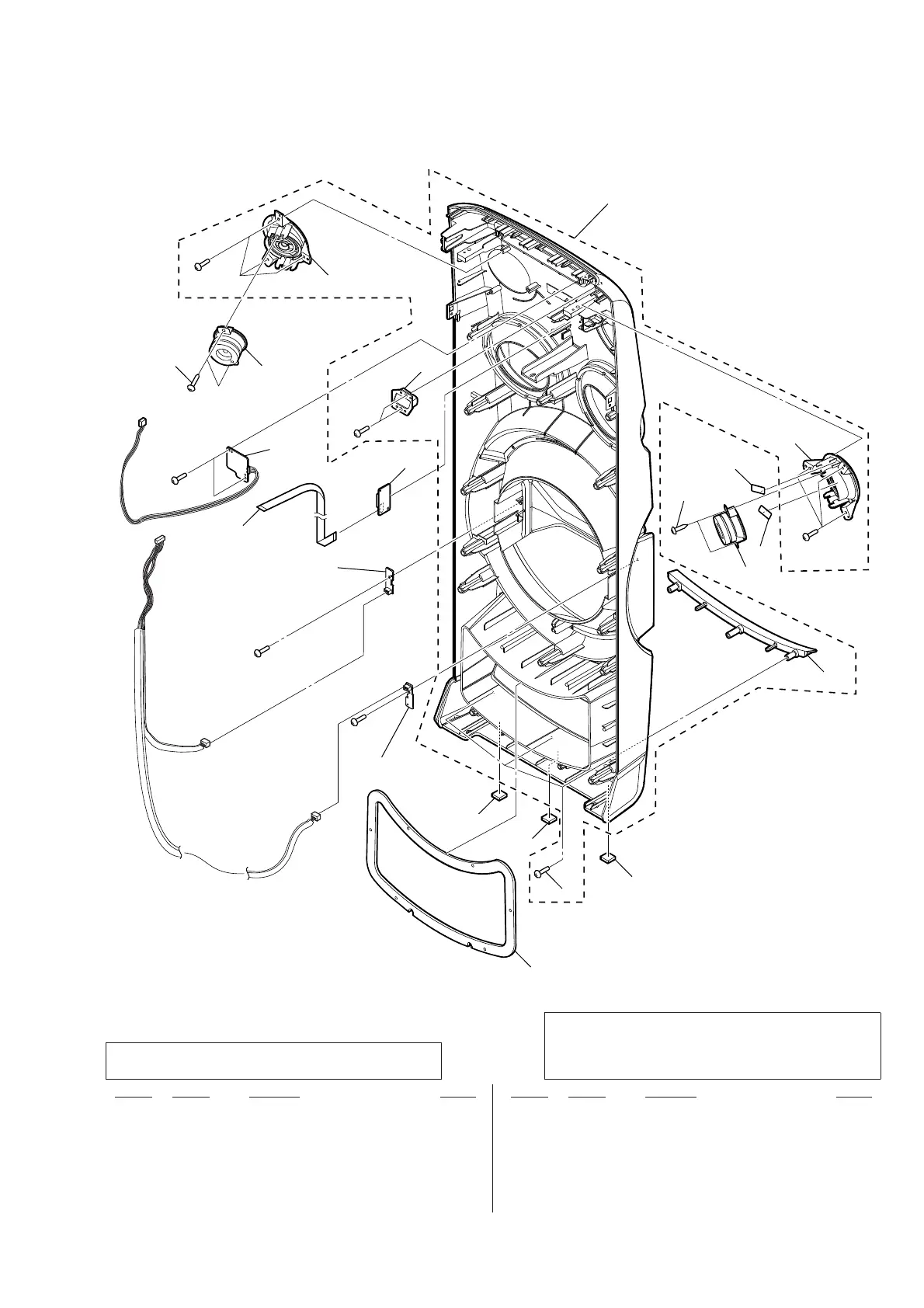

7-7. FRONT PANEL SECTION
Note 2: When the BLUETOOTH MODULE is replaced,
refer “NOTE OF REPLACING MOTHERBOARD
BOARD OR BLUETOOTH MODULE OR RC-
S730 (WW) BOARD” on page 6.
Note 1: If fl exible fl at cable is replaced, install it after bend-
ing it in the same form as that before replacement.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 1-849-480-11 FLEXIBLE FLAT CABLE (10 CORE)
302 1-492-699-32 BLUETOOTH MODULE
303 A-2144-060-A SPK RGB L BOARD, COMPLETE
304 A-2144-061-A SPK RGB R BOARD, COMPLETE
305 4-874-614-12 SCREW (1) (3.5X14), TAPPING
306 1-859-223-11 LOUDSPEAKER (4CM)
307 4-592-164-01 FOOT, RUBBER
308 X-2594-827-1 PANEL, FRONT (SW) ASSY (V50D)
308 X-2594-353-1 PANEL, FRONT (SW) ASSY (V50)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
308
305
306
301
303
304
302
307
307
ns
ns
ns
#2
305
306
#2
#2
#2
#2
#2
#2
ns
ns
ns
ns
307
IR board
(ns)

Sony MHC-V50 Specifications

General

Type	Home audio tower system
Cassette deck	No
Product color	Black
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Analog signal format system	NTSC, PAL
Speaker type	3-way
RMS rated power	660 W
Woofer diameter	200 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Recording on	USB
Playback modes	Normal, Repeat, Shuffle
Playback disc formats	CD audio, DVD-Audio, VCD
Audio formats supported	AAC, MP3, WAV, WMA
Video formats supported	MPEG1, MPEG4, XVID
Volume control	Digital
Power source	AC
Power consumption (standby)	0.5 W
Power consumption (typical)	120 W

Weight and Dimensions

Depth	300 mm
Width	293 mm
Height	798 mm
Weight	14000 g
