Sony MHC-V50 Service Manual

MHC-V50/V50D
23

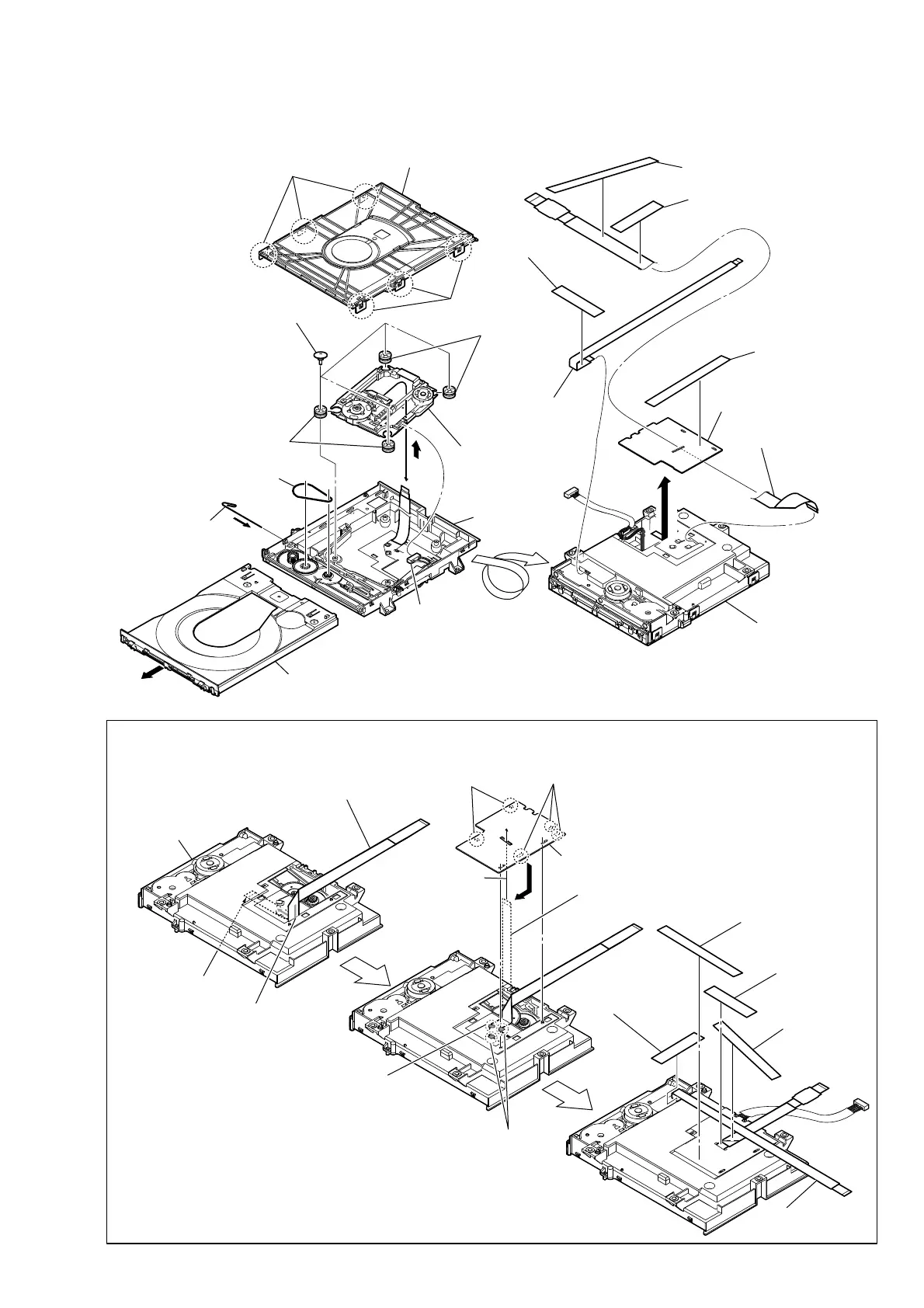

2-15. SERVICE OPTICAL DEVICE (7G), FLEXIBLE FLAT CABLE
7 four insulator screws
0 connector
qa insulator
qa insulator
6 belt
3 Insert the clip etc.
5 tray
qs service, optical
device(7G)
ql
wa flexible flat cable
(24 core)
1 three claws
4
8
9
2 chuck holder assy (MB)
– Bottom view –
loading assy (MB)
qd loading base assy
w; holder, flexible flat cable
qh flexible flat cable
(5 core)
Under the guide
Under the guide
(Fold area)
1 flexible flat cable (24 core)
2 Through the hole
3 Through the hole
terminal face
loading assy (MB)
7 flexible flat cable (24 core)
6 holder, FFC
5 three claws
5 two claws
8 flexible flat
cable (5 core)
,QVWDOODWLRQRIIOH[LEOHIODWFDEOHFRUHDQGIOH[LEOHIODWFDEOHFRUH
Note: This illustration sees the loading assy (MB) from bottom side.
4
1 three claws
–5HDUYLHZ–
qk cushion (H)
qj filament tape
qg filament tape
qf cushion (H)
q; cushion (H)
qs cushion (H)
qa filament tape
9 filament tape

Sony MHC-V50 Specifications

General

Type	Home audio tower system
Cassette deck	No
Product color	Black
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Analog signal format system	NTSC, PAL
Speaker type	3-way
RMS rated power	660 W
Woofer diameter	200 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Recording on	USB
Playback modes	Normal, Repeat, Shuffle
Playback disc formats	CD audio, DVD-Audio, VCD
Audio formats supported	AAC, MP3, WAV, WMA
Video formats supported	MPEG1, MPEG4, XVID
Volume control	Digital
Power source	AC
Power consumption (standby)	0.5 W
Power consumption (typical)	120 W

Weight and Dimensions

Depth	300 mm
Width	293 mm
Height	798 mm
Weight	14000 g
