MHC-V50/V50D

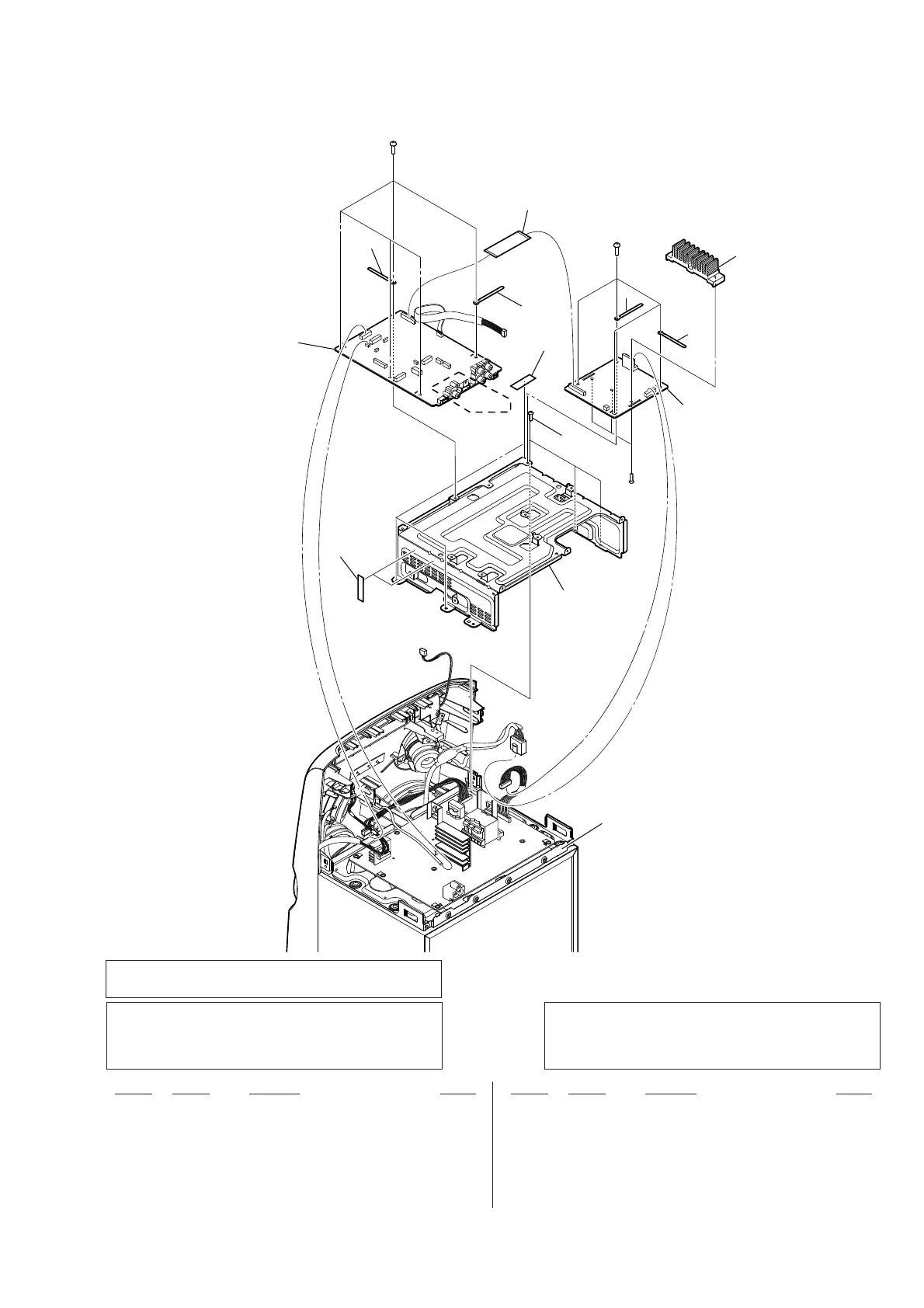

7-5. MOTHERBOARD BOARD SECTION
Note 1: If fl exible fl at cable is replaced, install it after bend-
ing it in the same form as that before replacement.
Note 2: When the MOTHERBOARD board is replaced, re-
fer to “NOTE OF REPLACING MOTHERBOARD
BOARD OR BLUETOOTH MODULE OR RC-
S730 (WW) BOARD” on page 6.
Note 3: When the complete DAMP board is replaced, re-
fer to “NOTE OF REPLACING THE IC2002 AND
IC2003 ON THE DAMP BOARD AND THE COM-
PLETE DAMP BOARD” on page 5.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 1-849-475-11 FLEXIBLE FLAT CABLE (25 CORE)
202 A-2144-066-A DAMP BOARD, COMPLETE
203 3-077-331-21 +BV3 (3-CR)
204 A-2181-058-A MOTHERBOARD BOARD, COMPLETE
(for SER
VICE) (V50)
9 204 A-2181-059-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (V50D: LA9)
9 204 A-2181-060-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (V50D: AEP, UK)
9 204 A-2181-062-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (V50D: AUS)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#5 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
ns not supplied
(V50D)
#2
#2
#5
ns
ns
ns
ns
ns
201
204
202
ns
chassis section
203
ns
ns
