Quick Reference

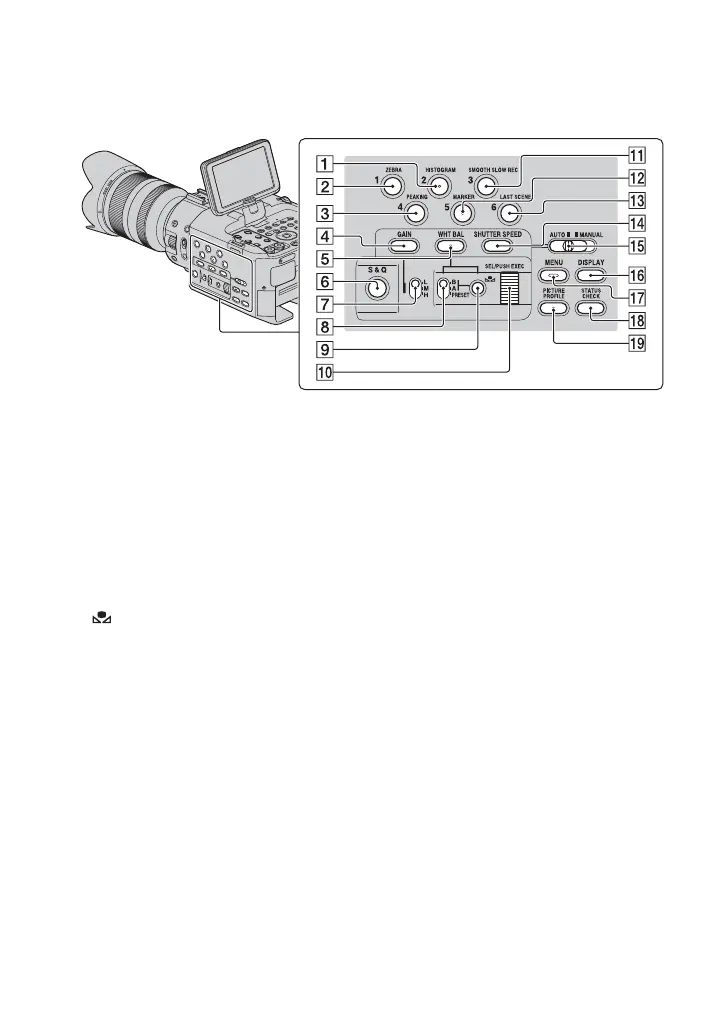

Identifying parts and controls
The numbers in ( ) are reference pages.
A HISTOGRAM/ASSIGN 2 button* (48)
B ZEBRA/ASSIGN 1 button (48)
C PEAKING/ASSIGN 4 button (48)
D GAIN button (31)
E WHT BAL button* (33)
F S&Q button (46)
G Gain switch (31)
H White balance memory switch (33)
I (One push) button (34)
J SEL/PUSH EXEC dial (21, 66)
K SMOOTH SLOW REC/ASSIGN 3
button (45, 48)
L MARKER/ASSIGN 5 button* (48)
M LAST SCENE/ASSIGN 6 button (48,
48)
N SHUTTER SPEED button (32)
O AUTO/MANUAL switch (31)
P DISPLAY button (54)
Q MENU button** (21, 66)
R STATUS CHECK button (55)
S PICTURE PROFILE button* (38)
* HISTOGRAM/ASSIGN 2 button, MARKER/
ASSIGN 5 button,
PICTURE PROFILE
button, and WHT BAL button have raised
tactile dots for your convenience in locating the
buttons.
**MENU button has a raised tactile bar for your
convenience in locating the buttons.
