HT-S350/SD35
12
Sony CONFIDENTIAL
For Authorized Servicer

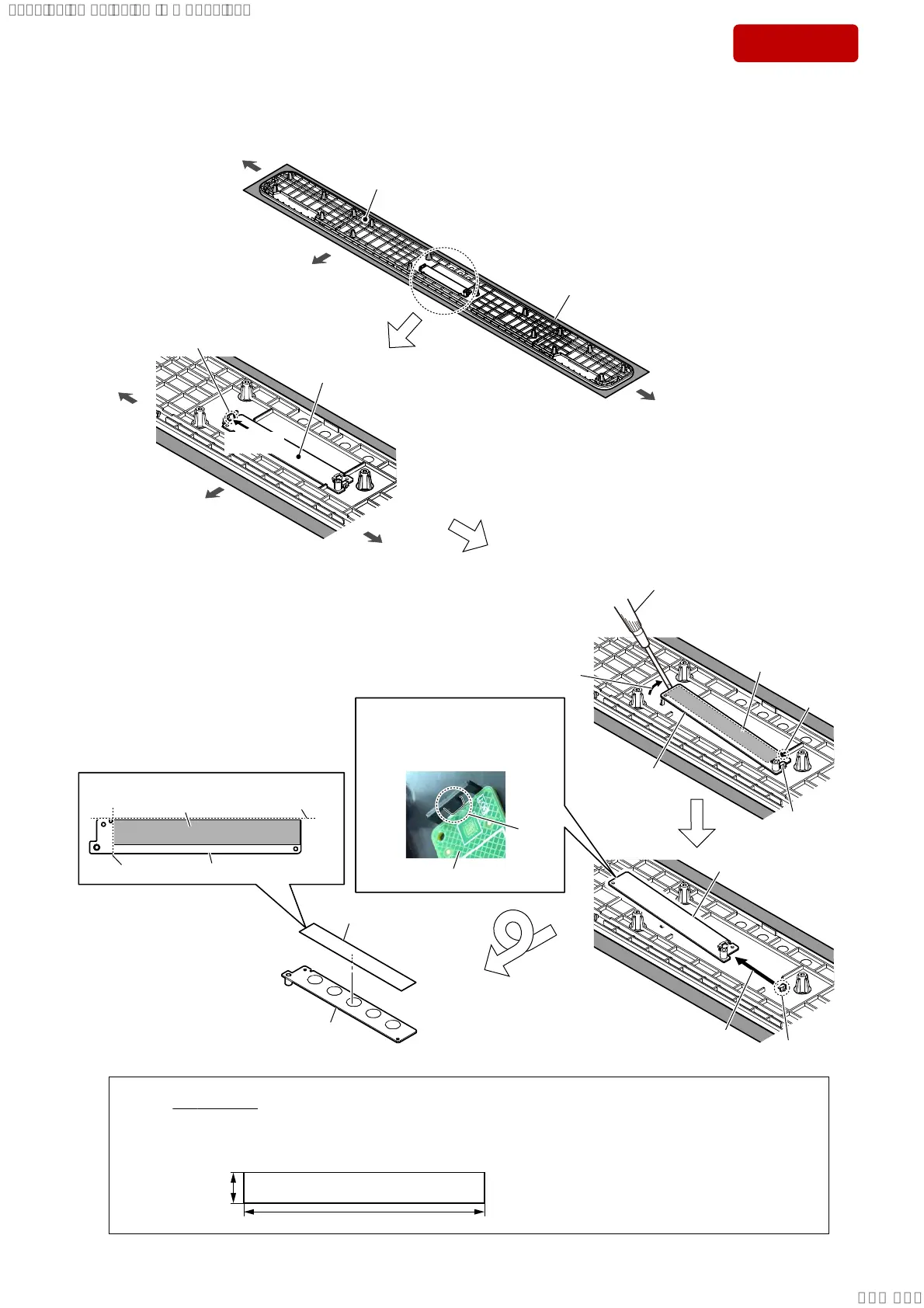

2-4. TOUCH KEY BOARD
4 Draw the TOUCH KEY board block
out of the rib in top panel.
TOUCH KEY
board
flathead screwdriver, etc.2 Gradually peel off the TOUCH KEY board
block with a flathead screwdriver, etc.
Note 2:
The TOUCH KEY board is affixed to
the top panel with a double-sided tape.
When removing the TOUCH KEY
board, remove slowly so that you do
not damage the rib, etc. of the top panel.
rib
rib
TOUCH KEY board
5 TOUCH KEY
board block
7 TOUCH KEY board
(See Note 3)
6 double-sided tape
(See Note 3)
3DVWLQJSRVLWLRQRIWKHGRXEOHVLGHGWDSH
guide line
guide line
double-sided tape
Turn over the TOUCH
KEY board block.
Note 3:
When installing the TOUCH KEY board to the top panel, cut out the double-sided tape (thickness: 0.2 mm) of commercial products
to 19.0
u
105.0 mm size and paste it on the TOUCH KEY board, then install the TOUCH KEY board to the top panel.
Also, when installing the TOUCH KEY board, firmly press the TOUCH KEY board to the top panel, and paste it so that there no gap
between the TOUCH KEY board and the top panel.
(Refer to “DOUBLE-SIDED TAPE OF THE TOUCH KEY BOARD” on page 8)
double-sided tape
3 rib
claw
1 Push.
soft cloth, etc.
Note 1:
When working with the top side facing down,
lay a soft cloth, etc. so as not to damage.
top panel block
(inner side)
front side
front side
left side
left side
right side
right side
TOUCH KEY board
105.0 mm
19.0 mm
1RWHDERXWLQVWDOOLQJ
WKH728&+.(<ERDUG
claw
TOUCH KEY board
Fully lock the TOUCH KEY board
by the claw.
SYSSET
